480V 350A 20 Ports SA2-30 Smart PDU

Product Description

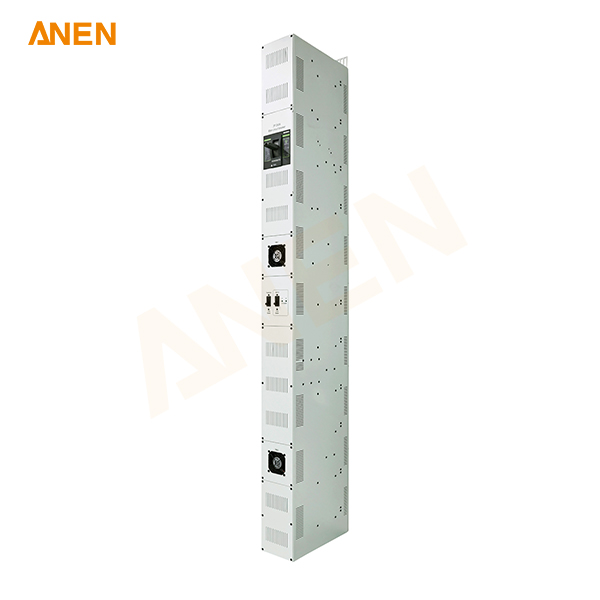

The ANEN 480V 350A 20-Port SA2-30 Smart PDU delivers high-capacity power distribution for cryptocurrency mining operations and demanding industrial environments. Designed for continuous, high-load applications, this power distribution unit combines a three-phase power input, 20 SA2-30 outlets, dedicated circuit protection, and two additional C13 outlets for network equipment.

With a 350A main circuit breaker and individual 20A three-pole breakers for each SA2-30 port, this high-current PDU helps operators manage heavy electrical loads while maintaining independent circuit protection. Its robust busbar design supports high-current distribution, making it a practical choice for large-scale crypto mining facilities, blockchain infrastructure, and industrial power systems.

Key Features of the 480V 350A Smart PDU

• High-current capacity: Three-phase 346–480 VAC input and output, rated at 3 × 350A PEN.

• 20 SA2-30 outlets: Supports high-power connections for compatible cryptocurrency mining machines.

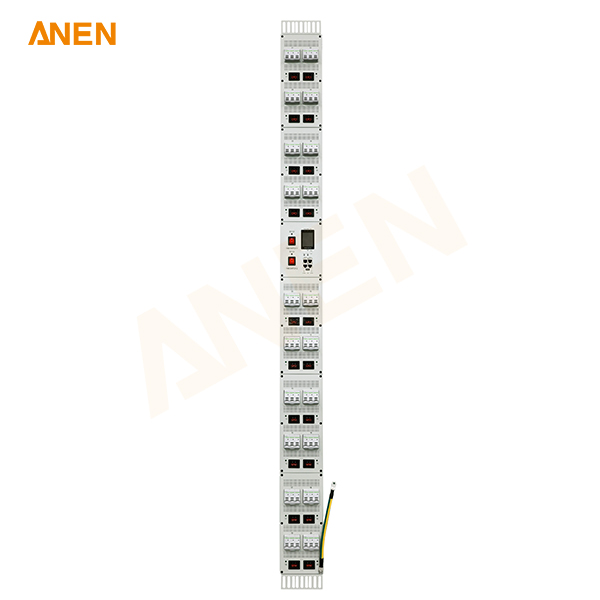

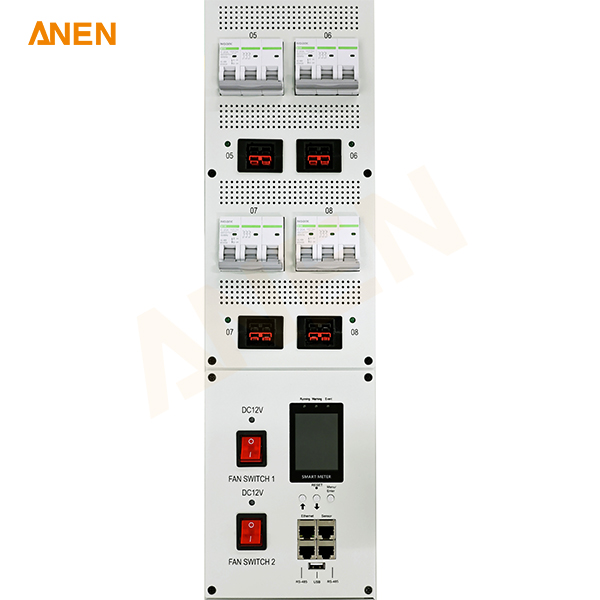

• Individual circuit protection: Each SA2-30 port uses a Noark 3P 20A B1H3C20 circuit breaker.

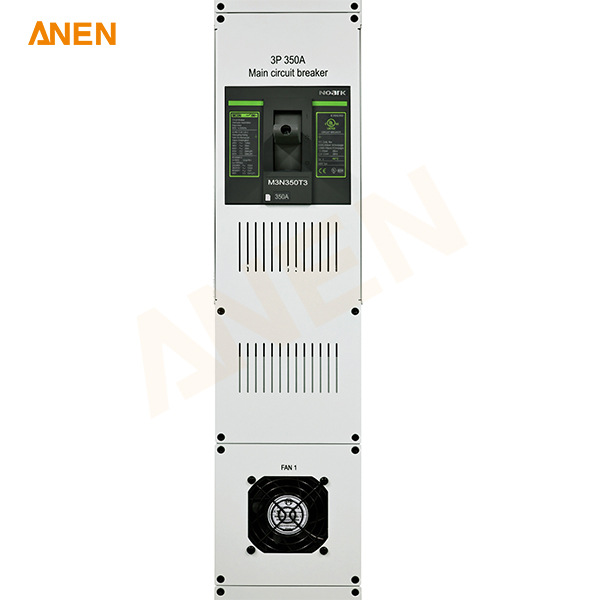

• Integrated main protection: M3N350T3 350A three-pole UL main circuit breaker.

• Dedicated network connections: Two C13 outlets with a separate 1P/5A circuit breaker.

• Heavy-duty busbars: 25 × 6 mm input busbar and 15 × 3 mm neutral busbar.

Materials and Construction

The unit's busbar configuration supports high-current power distribution across multiple output circuits. The 25 × 6 mm input busbar handles the main distribution path, while the 15 × 3 mm neutral busbar supports the corresponding neutral connection.

For final production, ANEN can confirm enclosure materials, busbar conductor material, plating, terminal specifications, and thermal requirements according to the customer's design and operating conditions.

Intelligent Power Distribution and Customization

This smart PDU provides a high-capacity distribution platform for mining and industrial equipment. Its individual branch breakers simplify fault isolation and maintenance planning.

For projects requiring additional monitoring or remote management, ANEN can discuss customized configurations, including metering, communication interfaces, alarm functions, and monitoring integration, subject to design feasibility. These options should be confirmed against the required specification before ordering.

Why Choose ANEN as Your Power Distribution Unit Manufacturer?

ANEN combines manufacturing capabilities with practical power connection and distribution experience to support customers from initial design through delivery.

• Direct factory supply: Work directly with the manufacturer on specifications, production requirements, and project coordination.

• OEM/ODM customization: Develop solutions around customer drawings, outlet layouts, enclosure requirements, and application needs.

• Quality assurance: Production quality controls and applicable product certifications support consistent manufacturing. UL and ETL certifications apply only to products and configurations covered by the relevant approvals.

• Complete power solutions: Source PDUs, industrial plugs, high-current connectors, power cables, cable assemblies, power distribution cabinets, server racks, and containerized power units through one supplier.

• Technical and after-sales support: Receive assistance with product selection, installation requirements, troubleshooting, and future project improvements.

As an experienced power distribution unit manufacturer, ANEN helps customers build coordinated power distribution systems for demanding computing and industrial applications.

Crypto Mining PDU for Cryptocurrency and Blockchain Facilities

Large-scale cryptocurrency mining facilities depend on reliable power delivery to keep mining machines operating efficiently. The ANEN 350A crypto mining PDU distributes three-phase power across 20 SA2-30 outlets, helping operators organize power connections for compatible mining equipment.

The individual three-pole breakers provide a dedicated protection point for each SA2-30 outlet. As a result, technicians can investigate and isolate an affected branch without automatically treating every outlet as a single protected circuit.

Beyond digital currency mining, the unit suits blockchain computing facilities and other installations that require high-current distribution to multiple loads.

Industrial PDU for High-Power Equipment

The same power distribution architecture can support selected industrial applications that use compatible three-phase equipment. Potential uses include heavy-duty computing installations, industrial processing equipment, and specialized machinery.

As a server rack PDU or rack-mount PDU, the product may suit a rack-based installation when its dimensions, mounting arrangement, airflow requirements, and cable routing match the project. Customers should confirm mechanical compatibility before installation.

Custom PDU Solutions for Different Power Requirements

Every high-density installation has its own electrical layout, equipment connections, and maintenance requirements. ANEN works with customers to develop a custom PDU that matches their intended application.

Available project discussions may cover outlet arrangements, input cable assemblies, enclosure dimensions, busbar design, monitoring options, labeling, and integration with existing power distribution cabinets. OEM/ODM support helps customers align the product with their equipment and installation plans.

All proposed changes require electrical, mechanical, and thermal validation before production.
