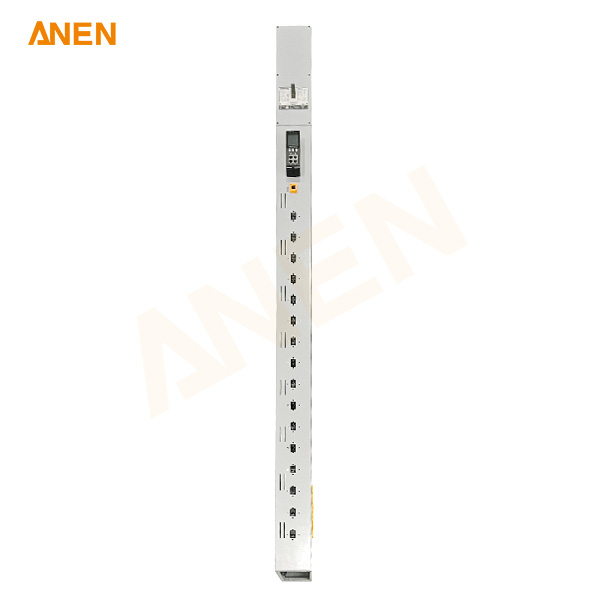

480V 200A 16-Port L7-20R Smart PDU

Product Description

The ANEN 16-Port L7-20R 200A Smart pdu is engineered for demanding crypto mining environments where stable power distribution, remote management, and high current capacity are essential. Designed for 3-phase 346–480 VAC input and 3 × 200A input current, the unit delivers single-phase 200–277 VAC power through 16 L7-20R outlets.

Each outlet uses an individual 1P 25A circuit breaker, providing dedicated branch-circuit protection for mining equipment. Meanwhile, intelligent monitoring and remote ON/OFF control help operators manage power without accessing the rack directly.

Smart PDU Monitoring for Cryptocurrency Mining

This smart pdu provides detailed electrical information for both the complete unit and individual outlets. Operators can remotely monitor input current, voltage, power, power factor, and accumulated kWh consumption.

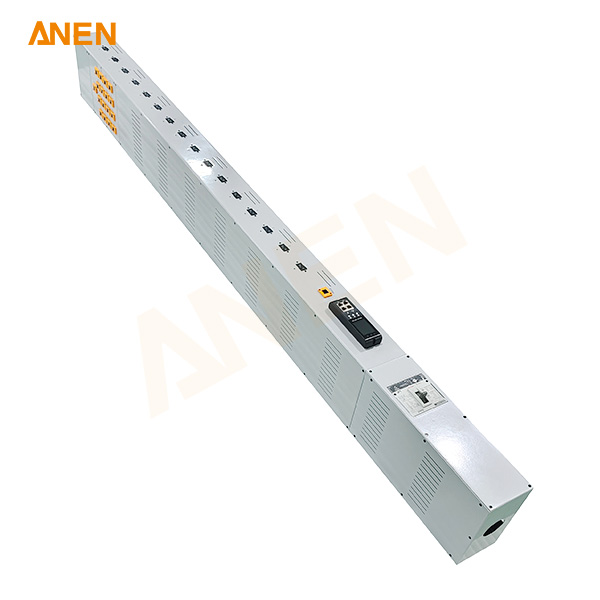

The onboard LCD display provides convenient local access to operating data and menu controls. For centralized management, Ethernet and RS485 interfaces support HTTP, SNMP, SSH2, MODBUS, and CA communication protocols.

These capabilities allow mining operators to identify abnormal loads, track energy consumption, and control individual machines more efficiently.

200A Power Distribution Unit for Mining Machines

As a high-capacity power distribution unit, this model is designed to handle the substantial electrical demand associated with cryptocurrency mining equipment. Its 3 × 200A input configuration supports large-scale power distribution while maintaining organized branch circuits.

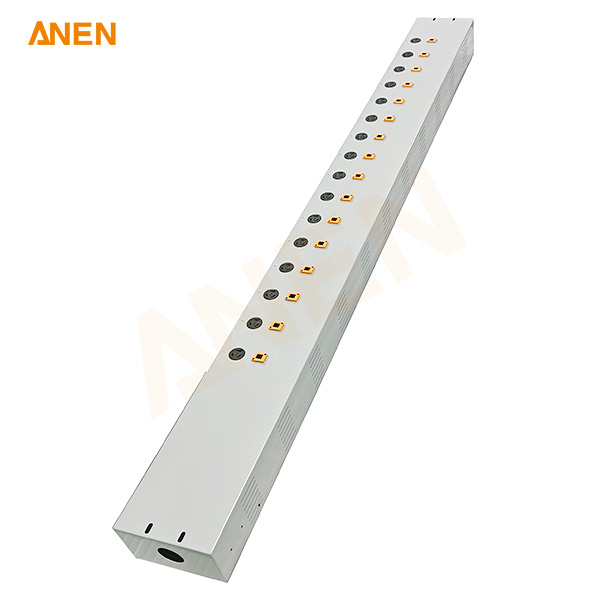

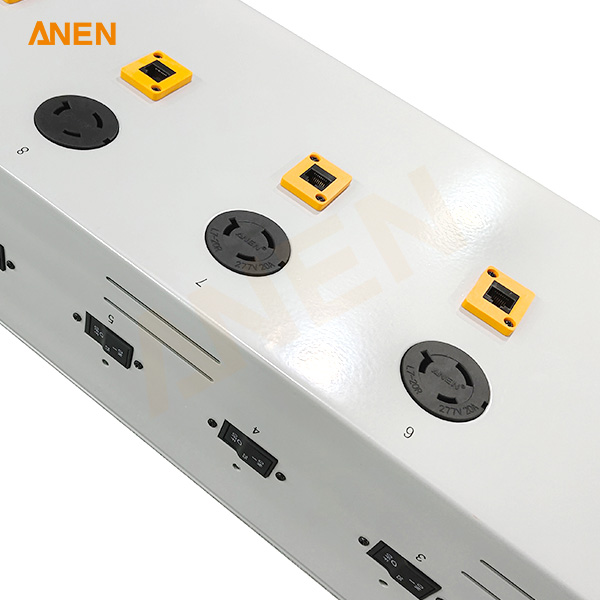

Sixteen L7-20R outlets provide dedicated connections for mining machines and other rack-mounted equipment. Each port includes a 25A circuit breaker, helping isolate individual branch circuits when overload conditions occur.

For facilities operating many miners, this architecture simplifies power management and reduces unnecessary downtime.

Quality, Certification, and ANEN PDU Advantages

ANEN operates as a direct manufacturer with in-house R&D, production, testing, and engineering capabilities. Customers benefit from OEM/ODM support, custom engineering, manufacturing control, and responsive technical service.

For this model, UL/cUL Listed and ETL certification support dependable deployment in demanding electrical environments. ANEN also maintains rigorous quality-control processes across its PDU and connector production.

Beyond the PDU itself, ANEN provides a comprehensive power-distribution portfolio covering PDUs, industrial plugs and connectors, power cables, cable assemblies, distribution cabinets, server racks, and power containers. This integrated capability helps customers build a coordinated solution from incoming power to rack-level distribution.

Crypto Mining Power Distribution Solution

Crypto mining facilities need more than high current capacity. They also require visibility, fast control, and reliable protection as the number of mining machines grows.

ANEN's 16-Port L7-20R 200A Smart PDU addresses these needs through three key functions: high-capacity power distribution, intelligent electrical monitoring, and individual outlet control.

Operators can remotely switch individual ports ON or OFF, monitor electrical parameters, and review energy consumption. Consequently, maintenance teams can respond to equipment problems faster while reducing unnecessary manual intervention.

The solution is particularly suitable for blockchain infrastructure, cryptocurrency mining farms, high-density computing rooms, and other power-intensive facilities.

FAQ

Q:What is the input rating of this crypto mining PDU?

A:The PDU accepts 3-phase 346–480 VAC input and supports 3 × 200A input current.

Q:What type of outlets does the PDU use?

A:The unit provides 16 L7-20R output sockets, with single-phase 200–277 VAC output.

Q:Does each outlet have individual protection?

A:Yes. Each of the 16 output ports uses a dedicated 1P 25A circuit breaker.

Q:Can I remotely control individual outlets?

A:Yes. The Smart PDU supports remote monitoring and individual ON/OFF control for each outlet.

Q:What electrical parameters can I monitor?

A:Users can monitor input current, voltage, power, power factor, and kWh consumption remotely. The LCD also provides local access to operating information.

Q:Which communication protocols are supported?

A:The PDU supports Ethernet and RS485 interfaces, with HTTP, SNMP, SSH2, MODBUS, and CA communication capabilities.

Q:Is this PDU suitable for blockchain and cryptocurrency mining?

A:Yes. Its high-current input, individual branch protection, remote control, and electrical monitoring make it suitable for cryptocurrency mining facilities and blockchain infrastructure.

Q:Can ANEN customize this PDU?

A:Yes. ANEN provides OEM/ODM and custom pdu solutions covering outlet configurations, electrical ratings, cables, connectors, communication functions, enclosure requirements, and other project-specific specifications.
