Custom PDU Manufacturer: 7 Factors to Consider Before Placing an Order

Not every power distribution project can use a standard product. A data center may require a specific combination of C13, C19, and C39 outlets. An electrical equipment manufacturer may need a power distribution unit with a non-standard enclosure, special input connectors, or customized cable assemblies. Meanwhile, an AI data center integrator may require high-current power distribution, intelligent monitoring, and reliable connections to support high-density computing equipment.

In these situations, working with a custom PDU manufacturer can help you develop a power distribution solution that matches your project's electrical requirements, installation conditions, and operational needs.

However, choosing the right manufacturer involves more than comparing prices. You need to understand its engineering capabilities, customization options, production capacity, quality control procedures, and ability to support your project from initial design to mass production.

This guide explains seven important factors to consider before placing an order. Whether you are sourcing a custom rack PDU, developing an industrial power distribution unit, or planning power infrastructure for an AI data center, these considerations can help you make a more informed purchasing decision.

1. Define Your Electrical Requirements Before Requesting a Quote

Electrical specifications are the foundation of any successful PDU customization project. Before contacting a manufacturer, determine how the unit will receive, distribute, and monitor electrical power.

Incomplete specifications can lead to unnecessary design revisions, incorrect component selection, and delays during sample approval.

Input Voltage and Current Rating

Start by identifying the input voltage, phase configuration, and current requirements.

For example, a 415V PDU may be suitable for certain three-phase data center power distribution systems. However, the correct configuration depends on the facility's electrical infrastructure, load requirements, and applicable electrical standards.

Your initial specification should include:

• Input voltage, such as 230V, 400V, 415V, or 480V, as applicable.

• Single-phase or three-phase power configuration.

• Maximum input current and required continuous operating current.

• Frequency requirements, typically 50Hz or 60Hz depending on the application.

• Required input connector, plug, or hardwired connection.

• Output voltage and expected load distribution.

For a 3 phase PDU, you should also clarify how loads will be distributed across the phases and whether phase-level current monitoring is required.

These details help the manufacturer determine an appropriate electrical architecture and identify potential design constraints early in the project.

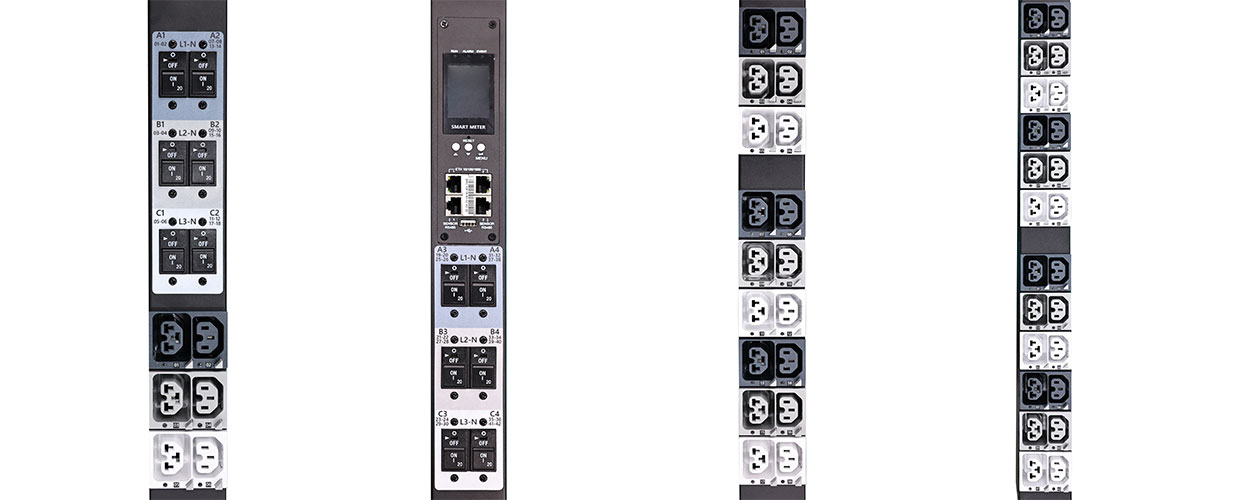

Outlet Configuration and Load Requirements

The number and type of outlets are equally important.

A server rack may require a combination of IEC C13 and C19 outlets, while a high-density AI data center PDU may need C39 outlets compatible with multiple supported plug types. Industrial applications may instead require specialized power connectors or terminal connections.

Provide the following information:

• Total number of outlets.

• Outlet types and quantities.

• Current rating for each outlet or branch circuit.

• Required circuit breakers and protection devices.

• Expected load per outlet and per phase.

• Whether outlet-level or branch-level monitoring is needed.

Practical tip: Do not specify outlet quantity alone. The manufacturer also needs to understand the electrical load, circuit arrangement, and intended equipment connections.

A detailed specification makes it easier to evaluate whether a proposed design meets your project's requirements before moving to prototyping.

2. Check Whether the Manufacturer Can Customize the Right Components

A custom PDU manufacturer should offer more than a selection of standard products. Its engineering team should be able to evaluate the components and configurations that need to change while maintaining a practical, manufacturable design.

The customization scope depends on the product, application, safety requirements, and production feasibility.

Input Connectors and Cable Assemblies

Different facilities use different power connection methods. Your project may require a specific industrial plug, a panel-mounted inlet, a hardwired input, or a cable assembly with a defined length and connector combination.

For example, a data center project may require an IEC 60309 connection and a heavy-duty cable assembly to connect the power distribution equipment to the facility's electrical infrastructure.

Discuss these details with your supplier:

• Input connector type and rated current.

• Cable type, conductor size, and length.

• Connector orientation and mounting method.

• Cable exit direction and strain relief.

• Required environmental protection.

• Applicable cable and connector certifications.

Cable length deserves particular attention. A cable that is too short can complicate installation, while excessive cable length can create routing and cable management problems.

Enclosure Dimensions and Mounting

A custom rack PDU must fit the intended cabinet or server rack without obstructing other equipment.

Depending on the project, you may need a specific overall length, mounting bracket, enclosure depth, outlet orientation, or cable exit position.

For industrial equipment, the enclosure may also need to accommodate installation clearances, environmental conditions, and access for maintenance.

Ask the manufacturer whether it can modify existing enclosure designs or develop new mechanical components when required.

ANEN supports customized power distribution products and industrial connector solutions, with capabilities that include mold design, stamping, injection molding, and product assembly. These capabilities can help support projects that require more than simple changes to a standard product.

Monitoring and Communication Functions

A smart power distribution unit can provide electrical measurements and remote visibility that help operators understand how power is being used.

Depending on the model and project requirements, customization may include:

• Voltage and current measurement.

• Power and energy monitoring.

• Branch-circuit or outlet-level metering.

• Remote outlet switching.

• Communication interfaces and network connectivity.

• Integration with a data center infrastructure management system.

Not every PDU requires every function. A basic industrial unit may only need dependable power distribution, while an AI data center PDU may require detailed load visibility and remote management.

Confirm which functions are available, which require hardware changes, and which communication protocols the manufacturer supports.

3. Choose Between OEM and ODM PDU Manufacturing

OEM and ODM manufacturing are two common approaches to custom power distribution products. Understanding the difference helps you select a supplier that fits your engineering resources, product ownership requirements, and purchasing strategy.

What Is an OEM PDU Manufacturer?

An OEM PDU manufacturer typically produces equipment according to a buyer's drawings, specifications, approved design, or agreed technical requirements.

This approach is suitable for businesses that already have a product design but need a qualified manufacturing partner.

You might choose an OEM PDU manufacturer if you:

• Have completed the electrical and mechanical design.

• Need a supplier to manufacture your specified configuration.

• Want your company logo and branding on the product.

• Require consistent production across multiple orders.

• Need customized cables, connectors, or enclosure details.

For example, a power equipment company may have an established PDU design but lack the production facilities needed to manufacture it efficiently. An OEM partner can help turn the approved design into a production-ready product.

Before signing an agreement, clarify drawing ownership, revision control, branding requirements, inspection procedures, and responsibility for design changes.

What Is an ODM PDU Supplier?

An ODM PDU supplier generally provides more design support. Instead of manufacturing entirely from a completed customer design, the supplier may adapt an existing platform or help develop a product around the customer's requirements.

This approach can be useful when you know what the product needs to do but do not have a finalized design.

An ODM PDU supplier may help with:

• Electrical and mechanical design proposals.

• Outlet layout and enclosure configuration.

• Component selection.

• Prototype development.

• Product adaptation for specific applications.

• Design-for-manufacturing recommendations.

For instance, a system integrator developing a new power distribution solution for high-performance computing may need a supplier to help determine the appropriate outlet arrangement, monitoring functions, and enclosure dimensions.

The supplier's engineering team can assess the requirements and propose a feasible configuration for further review.

OEM vs. ODM: Which Is Better for Your Project?

The distinction is not always absolute. Some manufacturers provide both services, and the exact division of responsibility varies by agreement.

When evaluating suppliers, ask whether they can support your current project stage and what engineering services are included in the quoted price.

4. Evaluate Manufacturing Capabilities and Quality Control

A technically promising design is only the starting point. Your supplier must also be able to manufacture the product consistently, especially when your project requires high-current components, customized assemblies, or repeat orders.

Before placing an order, investigate the manufacturer's production facilities, engineering resources, and quality management processes.

Look Beyond Assembly Capacity

PDU manufacturing can involve multiple processes, including enclosure fabrication, metal stamping, plastic component production, electrical assembly, wiring, and final testing.

A manufacturer with relevant in-house capabilities may have greater control over component consistency, production coordination, and design changes.

When evaluating an industrial PDU manufacturer, consider whether it can provide:

• Engineering and mechanical design support.

• Electrical component selection and integration.

• Enclosure and mounting customization.

• Cable and connector assembly.

• Production planning and assembly capacity.

• Prototype development and design revisions.

• Technical support for repeat orders.

You should also understand which processes are performed in-house and which are outsourced.

Outsourcing is not automatically a problem, but the supplier should explain how it controls subcontracted processes and verifies incoming components.

Ask About Quality Management and Testing

Quality assurance should be part of the manufacturing process, not just a final inspection.

Ask how the manufacturer manages incoming materials, assembly procedures, electrical connections, production records, and final product verification.

Depending on the product design and applicable requirements, relevant checks may include:

• Visual and dimensional inspection.

• Wiring and connection verification.

• Protective grounding continuity.

• Insulation resistance and dielectric testing, where applicable.

• Functional testing of metering and communication systems.

• Verification of circuit protection components.

• Inspection of cable assemblies and connectors.

• Final inspection against approved drawings and specifications.

The specific test plan should reflect the product's design, applicable standards, and agreed acceptance criteria.

Verify Certifications for the Actual Product

Do not assume that a manufacturer's general certification automatically covers every customized PDU.

Ask which certifications and approvals apply to the proposed model and its specific configuration. Confirm whether modifications to outlets, wiring, enclosures, or protection devices could affect the product's certification status.

ANEN has manufacturing capabilities spanning power connectors, cable assemblies, and power distribution products. Its quality management credentials and product certification experience can support discussions about project-specific quality requirements.

For international projects, confirm the applicable requirements for the destination market before approving the design.

A useful rule: Evaluate the manufacturer's ability to demonstrate quality through documented processes, traceability, and relevant test records rather than relying on general quality claims.

5. Confirm That the Manufacturer Understands Your Application

A PDU designed for a conventional server rack may not meet the needs of a mining facility, an industrial machine, or a high-density computing environment.

The right manufacturer should understand the operating conditions and installation requirements of your application.

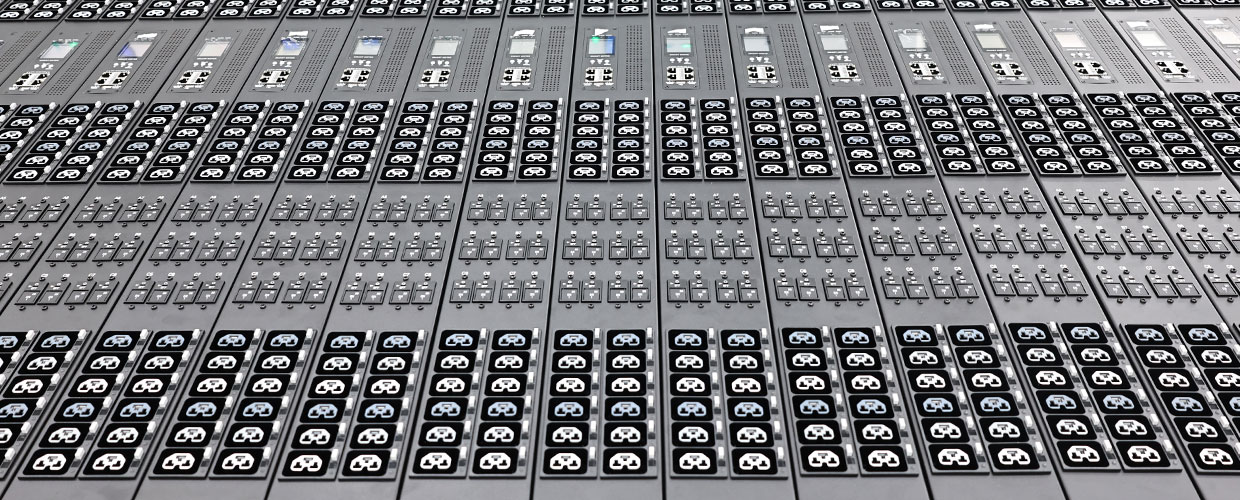

Power Distribution for AI Data Centers

An AI data center can place substantial electrical demands on rack-level power distribution equipment. High-density computing, GPU servers, and HPC workloads make load planning, cable routing, power monitoring, and maintenance access increasingly important.

An AI data center PDU may need to address:

• Three-phase power distribution.

• High input current and suitable connection hardware.

• Outlet combinations matched to server power supplies.

• Branch-circuit protection.

• Real-time electrical measurements.

• Remote monitoring and management.

• Cable routing within dense rack layouts.

• Compatibility with the facility's power architecture.

The precise requirements depend on rack power density, upstream electrical infrastructure, server configuration, and the project's operating conditions.

For example, a facility expanding its AI infrastructure may need multiple PDUs with consistent electrical specifications but different cable lengths or outlet arrangements to accommodate rack layouts.

A supplier that can coordinate PDU design with input connectors and cable assemblies may simplify procurement and integration.

Power Distribution for Industrial Equipment

Industrial applications introduce different considerations. A PDU may operate near machinery, in electrical cabinets, or in environments where vibration, dust, temperature, and maintenance access affect equipment selection.

Depending on the installation, buyers may need:

• Specialized industrial connectors.

• Higher-current input configurations.

• Custom mounting and enclosure dimensions.

• Clearly defined protection requirements.

• Rugged cable assemblies.

• Specific environmental protection ratings.

A manufacturer experienced in industrial connectors and cable assemblies may be able to evaluate these requirements alongside the PDU design.

Mining and Other High-Load Applications

Crypto mining operations and other power-intensive installations may require high-current distribution, multiple output connections, and protection for individual circuits.

In these environments, verify that the PDU's ratings, protection devices, connectors, and thermal design are appropriate for the intended loads and operating conditions.

The supplier should be able to explain how the proposed configuration meets the specified requirements rather than simply recommending a product based on its headline current rating.

Choosing a manufacturer with experience in your application can reduce the risk of overlooking installation details that only become apparent during commissioning.

6. Understand the Customization Process From Drawings to Samples

A reliable customization project follows a defined process. Knowing what happens at each stage helps you plan your schedule, manage revisions, and avoid approving a product before the important details have been verified.

Although individual manufacturers may use different workflows, a typical process includes the following steps.

Step 1: Submit Your Requirements

Provide the manufacturer with your available technical information.

This may include electrical specifications, mechanical drawings, wiring diagrams, outlet layouts, connector requirements, cable lengths, monitoring functions, and applicable certifications.

If you do not have complete drawings, a reference product or sample may help communicate your requirements.

Clearly identify which specifications are mandatory and which can be adjusted based on engineering recommendations.

Step 2: Conduct an Engineering Review

The manufacturer's engineering team evaluates the proposed design and identifies potential issues.

These may involve current ratings, component availability, enclosure dimensions, outlet spacing, cable routing, protection requirements, or certification limitations.

The team may recommend changes to improve manufacturability, simplify assembly, or resolve conflicts between requirements.

At this stage, confirm which party is responsible for approving the final electrical and mechanical design.

Step 3: Confirm the Configuration and Quotation

Once the requirements are sufficiently clear, the manufacturer can prepare a quotation based on the agreed configuration.

The quotation should identify the product model or configuration, quantities, unit price, tooling or development costs where applicable, sample charges, estimated lead time, and payment terms.

Ask the supplier to identify any assumptions or exclusions that could affect the final price.

Step 4: Develop and Evaluate Samples

For projects involving significant customization, a prototype or pre-production sample can help verify the design before mass production.

Check the sample against the approved requirements, including:

• Overall dimensions and mounting compatibility.

• Input and output connector types.

• Outlet positions and quantities.

• Cable length and routing.

• Electrical ratings and protection configuration.

• Monitoring and communication functions.

• Labels, branding, and identification markings.

Functional and electrical tests should follow the agreed test plan and applicable safety requirements.

Document any deviations and ensure that corrections are approved before the sample is accepted.

Step 5: Approve the Design for Production

After sample approval, establish a controlled version of the final drawings, bill of materials, wiring diagrams, and test requirements.

This step is important because informal changes during production can create inconsistencies between batches.

Confirm the process for approving future engineering changes and how the manufacturer will identify the correct product revision.

Step 6: Begin Production and Final Inspection

Once the design and commercial terms are approved, the manufacturer can proceed with production planning.

Agree on the inspection requirements, documentation, packaging, labeling, and delivery schedule before the order enters production.

For repeat orders, ask how the supplier maintains configuration consistency and handles component substitutions if a specified part becomes unavailable.

A clear process helps both parties move from an initial concept to a repeatable manufacturing arrangement.

7. Compare Total Project Cost, Lead Time, and Long-Term Support

The lowest quotation does not always represent the best value.

A custom PDU project may involve engineering work, tooling, sample production, certification considerations, specialized components, and ongoing support. These factors should be evaluated alongside the unit price.

Understand the Full Cost Structure

Ask your supplier to separate the major cost elements where practical.

Depending on the project, these may include:

• Product engineering and design.

• Tooling or enclosure modifications.

• Prototype and sample production.

• Electrical components and connectors.

• Cable assemblies.

• Monitoring hardware and software-related integration.

• Testing and inspection.

• Packaging and shipping.

• Future production and maintenance support.

Clarify whether one-time development costs will be charged again for repeat orders and whether changes to the approved design could create additional expenses.

Confirm Lead Time and Production Capacity

Custom products may require more preparation than standard catalog items.

Lead time can depend on design complexity, component availability, tooling, sample approval, testing requirements, and production scheduling.

Before placing an order, ask for separate estimates for engineering review, sample production, sample approval, and mass production.

If you have a fixed project deadline, communicate it early and ask the manufacturer to identify any long-lead components or approval milestones that could affect delivery.

Also confirm whether the supplier can support your expected order volume and future demand.

Evaluate After-Sales and Technical Support

Support matters after the first shipment arrives.

A good supplier should have a defined process for addressing quality issues, technical questions, replacement parts, and product revisions.

For a customized PDU, clarify how the manufacturer will handle:

• Technical documentation and wiring diagrams.

• Troubleshooting and product support.

• Defective products and warranty claims.

• Spare parts and component changes.

• Repeat orders and design revision control.

• Future customization requests.

If you plan to sell the product under your own brand, make sure responsibilities for customer support, product documentation, and warranty service are clearly agreed upon.

A manufacturer that supports the product throughout its lifecycle can be a more valuable partner than a supplier focused solely on completing the initial order.

How to Request a Quote From a Custom PDU Manufacturer

Once you have evaluated potential suppliers, prepare a clear request for quotation (RFQ).

A well-prepared RFQ helps the manufacturer understand your needs and reduces the back-and-forth required to establish a workable design.

You do not need to have every detail finalized before making an initial inquiry. However, the more relevant information you provide, the more accurately the supplier can evaluate your project.

Custom PDU RFQ Checklist

Use the following checklist when preparing your inquiry.

If you are sourcing an OEM product, attach your current drawings and technical specifications.

If you need ODM support, describe the intended application, operating conditions, and required functions, even if the design is not complete.

A qualified supplier should review the available information, ask relevant technical questions, and explain what additional details are needed before confirming feasibility and price.

Why Work With ANEN for Custom PDU Solutions?

ANEN is a manufacturer of power connectors, industrial cable assemblies, and power distribution equipment. Its product and manufacturing capabilities support customers looking for customized electrical connection and power distribution solutions.

For buyers evaluating a custom PDU manufacturer, the ability to coordinate related components can be important. Rather than treating the PDU, input connector, and cable assembly as entirely separate purchasing tasks, you can discuss the requirements as part of a broader system.

Manufacturing and Customization Capabilities

ANEN's capabilities include mold design, stamping, injection molding, and assembly. These resources support the development and production of customized components and electrical connection products.

Depending on the project, customization discussions can cover:

• Input connector and cable assembly requirements.

• Outlet configurations and mounting arrangements.

• Enclosure dimensions and mechanical details.

• Electrical monitoring functions.

• OEM branding and product identification.

• Manufacturing requirements for repeat orders.

The final scope depends on the selected product, technical requirements, and engineering review.

Solutions for Data Centers and Industrial Applications

Power distribution requirements vary across conventional server racks, AI data centers, HPC installations, and industrial equipment.

ANEN can discuss project requirements involving PDUs, industrial connectors, power cables, and related distribution components. Coordinating these elements during the design stage can help buyers clarify interface requirements and plan installation more effectively.

For customers seeking an OEM PDU manufacturer or ODM PDU supplier, early communication is particularly useful when a project involves non-standard specifications or multiple connected components.

From Technical Review to Production

A successful custom PDU project starts with a clear understanding of the application and a practical review of the proposed configuration.

Providing drawings, specifications, or reference samples gives the engineering team a starting point for evaluating your requirements. The next steps may include clarifying specifications, discussing design options, preparing a quotation, and reviewing a sample before production.

The objective is to establish a configuration that matches the project's technical requirements and can be manufactured consistently.

Frequently Asked Questions

Q:What is a custom PDU manufacturer?

A:custom PDU manufacturer develops or produces power distribution units according to specific customer requirements. Customization may involve voltage and current ratings, outlet combinations, input connectors, cable lengths, enclosure dimensions, monitoring functions, and branding.

Depending on its capabilities, the manufacturer may provide OEM production, ODM design support, or both.

Q:Can a manufacturer customize a 415V PDU?

A:Yes, a manufacturer may be able to configure a 415V PDU for a specific project. The available options depend on the product platform, electrical design, required current rating, connector configuration, protection devices, and applicable standards.

Provide the intended application and electrical specifications so the manufacturer can evaluate feasibility.

Q:What is the difference between a basic PDU and a smart PDU?

A:basic PDU primarily distributes electrical power to connected equipment. A smart PDU can provide additional functions, such as electrical metering, remote monitoring, communication, and, on supported models, remote outlet switching.

The appropriate choice depends on your monitoring requirements, operational priorities, and budget.

Q:Can I order a custom rack PDU with different outlet types?

A:Many PDU manufacturers offer customized outlet configurations, subject to design and safety requirements. For example, a project may require a combin

ation of C13, C19, and C39 outlets.

The manufacturer should verify the electrical ratings, circuit protection, outlet spacing, wiring arrangement, and compatibility of the proposed configuration.

Q:What information is needed to obtain a custom PDU quotation?

A:At a minimum, provide the intended application, input voltage, phase configuration, current requirements, outlet types and quantities, and estimated order quantity.

If available, include mechanical drawings, wiring diagrams, cable specifications, monitoring requirements, target certifications, and delivery expectations. Reference photographs or samples can also help communicate your requirements.

Q:How long does it take to develop a custom PDU?

A:The timeline depends on the design complexity, component availability, tooling requirements, sample testing, and approval process.

A modification to an existing product may require less development time than a new design with specialized electrical or mechanical requirements. Ask the manufacturer to provide separate estimates for engineering, sampling, approval, and production.

Q:Can ANEN provide OEM or ODM PDU services?

A:ANEN supports customized power distribution and electrical connection products. Buyers can submit their project requirements for an initial review to determine the appropriate customization approach.

The available OEM or ODM scope, design responsibilities, production arrangements, and lead time should be confirmed for the specific project.

Final Thoughts: Choose a Manufacturer That Can Support Your Project From Design to Delivery

Selecting a custom PDU manufacturer is an important decision for data center solution providers, electrical equipment manufacturers, distributors, and system integrators.

Before placing an order, define your electrical requirements, confirm the available customization options, evaluate engineering and manufacturing capabilities, and establish a clear process for sample approval and production. You should also consider total project cost, delivery schedules, product quality, and long-term technical support.

The right manufacturing partner should do more than supply a product. It should help you assess technical requirements, identify design constraints, and establish a practical path from the initial concept to a production-ready solution.

Looking for a custom PDU for your next project?

Contact ANEN to discuss your requirements. Submit your electrical specifications, product drawings, wiring diagrams, or reference samples for an engineering review.

Whether you need a custom rack PDU, a 415V three-phase PDU, a smart power distribution unit, or an integrated solution involving industrial connectors and cable assemblies, ANEN can help evaluate your requirements and discuss the available customization options.

Send us your project requirements to start the conversation about your custom PDU solution.
