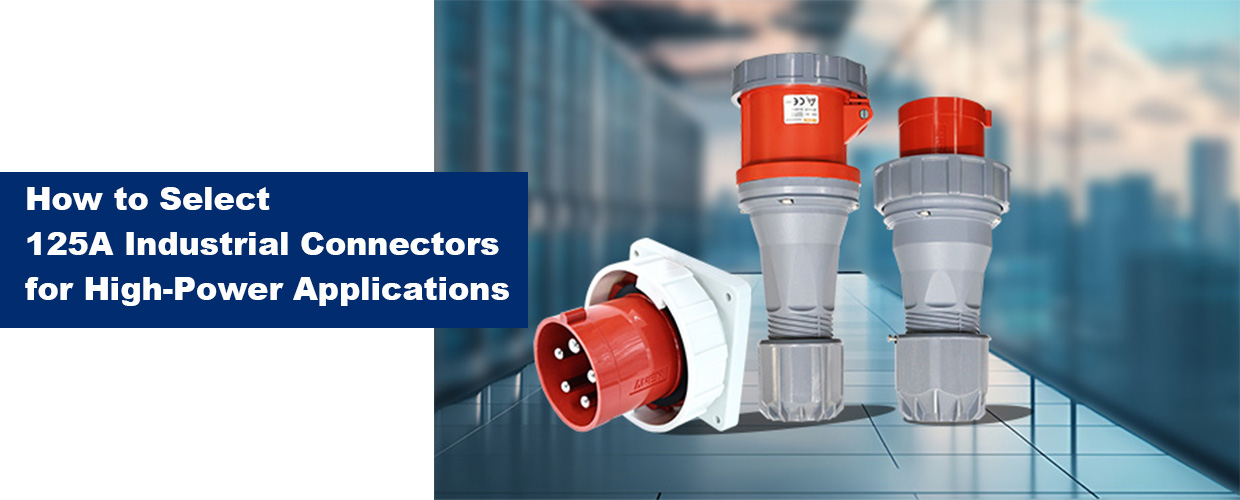

How to Select 125A Industrial Connectors for High-Power Applications

As industrial equipment, data centers, and high-performance computing facilities demand more electrical power, reliable power connections have become increasingly important. A suitable 125A industrial power connector helps establish a secure connection between power cables, distribution equipment, and electrical systems while supporting high-current operation in demanding environments.

However, selecting a connector involves more than matching its current rating. Buyers must also consider operating voltage, pole configuration, mounting style, environmental protection, cable compatibility, and applicable certifications. A mismatch in any of these areas can create installation difficulties, increase maintenance requirements, or prevent the connector from meeting the application's electrical and environmental requirements.

For distributors, equipment manufacturers, and data center solution providers, choosing the right connector also means finding a supplier capable of delivering consistent quality, customized configurations, and dependable technical support.

This guide explains how to select a 125A industrial power connector for high-power applications, including industrial power distribution systems, equipment connections, and AI data center infrastructure. It also introduces ANEN's 415V 125A industrial connector solutions and explains what buyers should verify before requesting a quotation.

What Is a 125A Industrial Power Connector?

A 125A industrial power connector is an electrical connection device designed for applications requiring a rated current of 125 amperes, subject to its specified operating conditions and applicable standards.

These connectors are commonly used to connect power cables to industrial equipment, electrical distribution systems, and other high-power installations. Compared with connectors designed for lower-current applications, a 125A industrial plug or receptacle is intended for power connections that require appropriately rated contacts, insulation, mechanical construction, and cable termination components.

Industrial connectors following the IEC 60309 standard are widely used in industrial environments because they provide standardized configurations for different voltage, current, pole, and environmental requirements.

Common Applications for 125A Industrial Connectors

A 125A IEC 60309 connector can be used in various applications, depending on its exact specifications and installation requirements.

Industrial power distribution

Manufacturing facilities often require reliable connections between distribution panels, production equipment, and auxiliary electrical systems. A suitably rated industrial connector can simplify equipment connection and support maintenance procedures when used as part of a properly designed electrical installation.

AI data centers and high-performance computing

AI data centers require substantial electrical power to support high-density server racks, cooling equipment, and associated infrastructure. Industrial connectors can serve as connection interfaces within the facility's power distribution system, depending on the electrical architecture.

For example, a data center project may use 125A connectors to connect suitable power cables to distribution equipment or other high-power assemblies. These connections must be coordinated with the upstream electrical supply, protective devices, cable ratings, and downstream equipment requirements.

Power distribution units and electrical cabinets

A PDU, or power distribution unit, distributes electrical power to connected equipment. In industrial and data center environments, appropriately rated connectors may be used at the input or output side of a power distribution assembly, depending on the design.

A 125A connector should not be selected solely because the associated PDU is described as a high-power unit. The connector's rated current, voltage, pole configuration, and installation conditions must match the actual electrical design.

Temporary and mobile power systems

Industrial equipment, service systems, and certain temporary power installations may require connectors that can be disconnected and reconnected during equipment relocation or maintenance. The connector's mechanical design, environmental rating, and permitted operating conditions are important considerations for these applications.

Why Choose a 125A Industrial Power Connector?

A correctly specified connector offers several practical advantages:

• Appropriate current capacity: Supports applications designed around a 125A connection, provided the entire electrical system is correctly rated.

• Standardized configurations: Compatible IEC 60309 products can simplify equipment integration when voltage, pole count, and clock position match.

• Flexible installation: Cord-mount and panel-mount options accommodate different connection requirements.

• Environmental protection: Suitable IP-rated designs help protect against dust and water under their specified test conditions.

• System integration: The right connector can simplify the connection of industrial equipment, power cabinets, and selected data center power assemblies.

The key is to select a connector according to the actual electrical and mechanical requirements rather than current rating alone.

Cord-Mount vs. Panel-Mount Connectors

One of the first decisions when selecting a 125A industrial power connector is whether the application requires a cable-mounted connection or a fixed connection on an equipment enclosure.

The correct mounting style depends on how power enters or leaves the equipment, how the cable is routed, and whether the connection must be removable.

What Is a Cord-Mount Connector?

A cord-mount connector is installed at the end of a compatible power cable. It allows the cable assembly to connect to a corresponding inlet, receptacle, or other compatible interface.

Typical applications include:

• Industrial power cables connecting equipment to a power source.

• Removable power connections for machinery and electrical systems.

• Cable assemblies used in selected data center power distribution applications.

• Custom power cables supplied to equipment manufacturers and system integrators.

A cord-mount plug or connector must match the cable's conductor size, outside diameter, insulation type, and termination requirements.

Cable entry and strain relief also require attention. The cable must be securely retained without placing excessive mechanical stress on the conductors or terminals.

What Is a Panel-Mount Connector?

A panel-mount connector is installed on an enclosure, cabinet, machine, or electrical panel. It provides a fixed connection point for a compatible plug or cable assembly.

Panel-mount products are useful when equipment requires a defined power interface that can be accessed during installation, operation, or maintenance.

Common applications include:

• Industrial electrical cabinets.

• Power distribution equipment.

• Machinery requiring a fixed power inlet.

• Selected PDU and data center power assemblies.

• Custom equipment manufactured for repeated deployment.

The enclosure cutout, mounting dimensions, terminal arrangement, and required environmental protection should all be confirmed before ordering.

Which Mounting Style Should You Choose?

For example, ANEN offers a 415V 125A cord-mount plug and a 415V 125A cord-mount connector for cable-based power connection requirements.

For equipment manufacturers that need a fixed connection interface, ANEN also offers a 415V 125A panel-mount plug inlet and a 415V 125A IP67 panel-mount receptacle with junction box.

These products address different mounting requirements. Buyers should confirm the exact mating arrangement rather than assuming that all products carrying the same voltage and current ratings are interchangeable.

How to Select the Correct Voltage and Current Rating

Voltage and current are two of the most important specifications when selecting a 125A industrial power connector.

A connector rated for 125A is not automatically suitable for every high-power installation. Its voltage rating, number of poles, earthing arrangement, and other electrical characteristics must also match the application.

1. Confirm the Operating Voltage

Industrial power systems operate at different voltages depending on the country, facility, and electrical architecture.

For example, 415V three-phase systems are used in many industrial and commercial installations. A connector designed for a compatible 415V application may be suitable for connecting equipment within such a system, provided all other electrical and installation requirements are satisfied.

Before ordering a 415V connector, verify:

• The actual system voltage.

• Whether the system is single-phase or three-phase.

• Whether a neutral conductor is required.

• The number of poles and earthing arrangement.

• The connector's rated operating voltage.

• The applicable IEC 60309 configuration and clock position.

Do not assume that every connector marked 415V is suitable for every 415V system. The connector configuration, rated voltage, pole arrangement, and intended application must be compatible with the installation.

2. Verify the Current Rating

A 125A industrial power connector is designed for a nominal rated current of 125A under its specified conditions. However, the permitted current in an actual installation depends on more than the connector itself.

Important considerations include:

• Conductor cross-sectional area and material.

• Cable insulation and temperature rating.

• Ambient temperature.

• Installation method and heat dissipation.

• Contact resistance and termination quality.

• Applicable electrical codes and derating requirements.

• Upstream overcurrent protection.

For example, a cable assembly connected to a 125A connector must be designed to carry the required current under the actual installation conditions. Selecting a 125A connector does not automatically make an undersized cable suitable for a 125A circuit.

The protective device and the complete power path must be coordinated by qualified electrical personnel.

3. Check the Pole Configuration

Pole configuration determines which conductors the connector is designed to accommodate.

Depending on the application, industrial power systems may require three-phase conductors and protective earth, with or without a neutral conductor.

For IEC 60309 products, configurations may include:

• 3P+PE: Three phase conductors and protective earth.

• 3P+N+PE: Three phase conductors, neutral, and protective earth.

• These configurations serve different electrical requirements and must not be treated as interchangeable.

The required arrangement depends on the connected equipment and the system's earthing and neutral design. Buyers should confirm the exact pole configuration in the product datasheet and ensure that the selected connector matches the intended mating component.

4. Confirm the Clock Position

For IEC 60309 connectors, the clock position of the protective-earth contact is an important part of the connector configuration.

The correct position depends on the applicable voltage and frequency configuration. It helps distinguish connector arrangements intended for different electrical systems.

For example, ANEN's previously specified 415V industrial connector configuration uses a 6h clock position. This detail should be confirmed against the exact product specification rather than generalized to every connector in the 125A range.

When ordering, provide the intended voltage, frequency, pole arrangement, and required clock position. These details help the manufacturer identify the correct product configuration.

5. Consider the Application's Power Requirements

The connector should be evaluated as part of the complete electrical system.

In an AI data center, for example, a power distribution assembly may connect to upstream distribution equipment and supply a PDU or another power distribution component. The connector must be compatible with the electrical design of the complete assembly.

Relevant questions include:

• What is the maximum expected operating current?

• What voltage does the equipment require?

• Does the connection need a neutral conductor?

• What cable length and conductor size are required?

• Will the connector operate continuously at a high load?

• What environmental conditions will affect its operation?

Answering these questions before requesting a quotation helps the supplier recommend a suitable connector and identify any additional requirements.

IP44 vs. IP67: Understanding Environmental Protection

The IP rating describes the level of protection an enclosure or product provides against the ingress of solid objects and water under specified test conditions.

For industrial connectors, the correct IP rating depends on the installation environment, the product design, and the conditions under which the connector will be used.

Two common ratings buyers may encounter are IP44 and IP67.

What Does IP44 Mean?

IP44 indicates:

• First digit 4: Protection against access to hazardous parts with a wire and against solid foreign objects of 1.0 mm diameter and larger.

• Second digit 4: Protection against water splashing from any direction under the specified test conditions.

An IP44 connector may be suitable for certain indoor or sheltered applications where the required level of protection is consistent with the installation environment.

However, the final selection should account for exposure to dust, moisture, cleaning procedures, and other environmental conditions.

What Does IP67 Mean?

IP67 indicates:

• First digit 6: Dust-tight protection.

• Second digit 7: Protection against the effects of temporary immersion in water under specified test conditions.

An IP67 industrial connector may be appropriate for applications that require dust-tight construction and protection against temporary immersion when the product is used within its rated conditions.

Potential applications include selected industrial power connections, outdoor equipment, and installations exposed to challenging environmental conditions.

However, IP67 does not automatically mean that a connector is suitable for continuous underwater use, high-pressure water jets, or every washdown environment.

The rating also should not be interpreted as proof that a connector can be safely disconnected while energized or exposed to water. Safe operation depends on the product design, operating instructions, and applicable electrical safety requirements.

IP44 vs. IP67: Which Is Better?

Neither rating is universally better for every application. The appropriate choice depends on the installation environment and the level of protection required.

Check the Rating of the Complete Connection

An important detail is that the IP rating may depend on whether the connector is mated, properly secured, and fitted with the specified sealing components.

Buyers should confirm:

• The IP rating of the individual product.

• Whether the rating applies when mated or unmated.

• Whether a compatible cover or sealing accessory is required.

• Whether the rating applies to the complete assembly or only a particular component.

• Whether the junction box and cable entry maintain the required protection level.

ANEN offers a 415V 125A IP67 panel-mount receptacle with junction box for applications requiring this specified level of ingress protection.

Before ordering, confirm the complete assembly's configuration and the conditions under which its IP rating applies.

Cable Compatibility and Installation Requirements

Even a correctly rated connector can cause installation problems if the cable does not match its terminal and cable-entry requirements.

Cable compatibility is particularly important for 125A industrial power connectors because conductor size, cable construction, and termination quality affect the complete connection.

1. Select the Correct Conductor Size

The conductor cross-sectional area must be appropriate for the operating current, cable length, installation method, ambient temperature, and applicable electrical requirements.

Copper and aluminum conductors have different electrical properties, so they should not be treated as interchangeable without verifying terminal compatibility and the manufacturer's specifications.

When selecting a cable for a 125A connector, confirm:

• Conductor material.

• Conductor cross-sectional area.

• Number of conductors.

• Cable insulation and temperature rating.

• Required voltage rating.

• Cable length and voltage-drop requirements.

• Applicable current-carrying capacity and derating factors.

The connector's terminal range must support the selected conductor and termination method.

2. Check the Cable's Outside Diameter

The cable's outside diameter is another important factor.

The cable gland, clamping mechanism, and strain-relief components must be compatible with the cable diameter. A cable that is too large or too small for the permitted entry range may compromise mechanical retention or environmental sealing.

For this reason, buyers should provide the actual cable outside diameter when requesting a customized connector or cable assembly.

3. Verify the Termination Method

Industrial connectors may use different conductor termination arrangements, depending on the product design.

Before installation, confirm:

• Permitted conductor types.

• Supported conductor sizes.

• Required terminal preparation.

• Tightening torque.

• Any specified crimping tools or ferrules.

• The manufacturer's installation instructions.

Improper termination can increase contact resistance and heat generation. Installation should therefore follow the manufacturer's requirements and applicable electrical codes.

4. Consider Cable Whips for Data Center Applications

A cable whip is a preassembled power cable fitted with specified connectors at one or both ends. Cable whips can simplify installation by providing a prepared connection between compatible power distribution equipment and the intended connection point.

In an AI data center, a cable whip may be used as part of a power distribution arrangement serving a PDU, rack-level equipment, or another electrical assembly.

For example, a project may require a cable assembly connecting an industrial power interface to compatible distribution equipment. The assembly must be designed around the actual system voltage, current, connector configuration, cable length, and installation environment.

When sourcing a cable whip, specify:

• Connector type at each end.

• Rated voltage and current.

• Pole configuration.

• Cable type and conductor size.

• Required cable length.

• Environmental protection requirements.

• Applicable certifications.

• Any equipment-specific termination or labeling requirements.

A connector's current rating should not be used as the sole basis for selecting a cable whip. The complete assembly must be suitable for the intended circuit.

5. Evaluate the Complete Installation

Before approving a connector or cable assembly, consider how it will be installed and maintained.

Check that there is sufficient clearance for connection and disconnection, that the cable can be routed without excessive bending or tension, and that the assembly does not place unnecessary mechanical stress on the connector.

For panel-mount installations, confirm the enclosure cutout, mounting hardware, and available space.

For cord-mount installations, verify cable retention, strain relief, and the specified assembly procedure.

These checks help reduce installation delays and support reliable operation in demanding industrial and data center environments.

What Certifications Should Buyers Check?

Certifications and compliance documentation help buyers evaluate whether an industrial connector meets the requirements relevant to its intended market and application.

However, not every certification applies to every product or jurisdiction. Buyers should verify the actual product model, certification scope, and applicable standards before placing an order.

1. IEC 60309 Compliance

IEC 60309 is an important international standard series covering industrial plugs, socket-outlets, and couplers.

For buyers sourcing a 125A IEC 60309 connector, relevant checks include:

• Whether the product is designed to the applicable IEC 60309 requirements.

• The rated current and voltage.

• The pole configuration.

• The clock position.

• The specified environmental protection.

• Compatibility with the intended mating connector.

Do not rely on a product title alone. Request the technical datasheet and applicable conformity documentation.

2. UL and Other Market-Specific Requirements

For products intended for North American or other regulated markets, buyers may need to consider UL, CSA, or other relevant certification requirements.

The appropriate requirements depend on the product category, destination market, and end-use application.

A manufacturer may have certifications covering particular products without every item in its catalog carrying the same approvals. Confirm the exact model and certification status rather than assuming that a manufacturer's general credentials automatically apply to every product.

3. RoHS and REACH

RoHS and REACH address different aspects of chemical and material compliance.

RoHS restricts certain hazardous substances in electrical and electronic equipment within its applicable scope. REACH is a European Union regulation addressing chemicals, including their registration and other applicable obligations.

Buyers should request the relevant declarations or supporting documents for the products being purchased and determine which requirements apply to their specific market.

4. Quality Management and Manufacturing Consistency

Product compliance is only one part of supplier evaluation. Buyers should also consider the manufacturer's quality management system, production controls, inspection procedures, and traceability.

Questions worth asking include:

• Does the manufacturer operate a documented quality management system?

• Are incoming materials and finished products inspected?

• Are electrical and mechanical checks performed according to defined procedures?

• Can the supplier provide product-specific documentation?

• Can it maintain consistent specifications across repeat orders?

• Does it have a process for handling quality issues and corrective actions?

For distributors and equipment manufacturers, these capabilities can be especially important when connectors will be integrated into products supplied to multiple customers or deployed across several facilities.

How to Source Custom 125A Industrial Connectors

Standard connectors may satisfy many applications, but equipment manufacturers and power system integrators sometimes need specific mechanical dimensions, cable interfaces, mounting arrangements, or environmental ratings.

Working with an experienced high-current power connector manufacturer can help buyers evaluate these requirements before production begins.

1. Prepare a Complete Technical Specification

Before contacting a supplier, compile as much information as possible about the intended application.

A useful specification should include:

• Rated current: 125A, where required.

• Operating voltage and frequency.

• Number of poles and earthing arrangement.

• Required IEC 60309 configuration and clock position, where applicable.

• Cord-mount or panel-mount design.

• Required IP rating and whether it applies when mated.

• Cable type, conductor size, and outside diameter.

• Terminal and termination requirements.

• Operating temperature and environmental conditions.

• Applicable certifications and target market.

• Estimated order quantity and annual demand.

Drawings, photographs, existing product samples, and equipment interface dimensions can help the supplier understand the application.

The more complete the specification, the easier it is to identify potential compatibility issues before ordering.

2. Evaluate the Supplier's Customization Capabilities

Not every industrial connector supplier offers the same level of engineering support.

For customized projects, buyers should evaluate whether the manufacturer can support the required mechanical design, tooling, material selection, cable compatibility, and production validation.

Consider asking:

• Can the manufacturer review technical drawings?

• Can it develop a solution around specific mounting dimensions?

• Can it support customized cable assemblies?

• Are samples available for fit and function evaluation?

• Can the supplier provide relevant technical documentation?

• What quality checks are performed before shipment?

• Can it support repeat orders with consistent specifications?

For non-standard projects, it is particularly important to establish which requirements are fixed and which may be adjusted during engineering review.

3. Request Drawings and Samples Before Mass Production

For equipment manufacturers and distributors, a sample evaluation can help confirm whether a connector fits the intended installation.

Before approving mass production, verify:

• Mechanical fit and mounting dimensions.

• Compatibility with the intended mating component.

• Cable-entry and termination requirements.

• Pole configuration and electrical ratings.

• Environmental protection requirements.

• Required markings and documentation.

Samples should be evaluated using an appropriate test and approval process. A successful fit check alone does not establish that a connector is electrically suitable for the intended application.

4. Compare More Than the Unit Price

Price matters, but it should not be the only factor in supplier selection.

A more complete evaluation should consider product consistency, technical support, documentation, production capacity, delivery requirements, and the supplier's ability to support future orders.

For buyers managing industrial equipment programs or data center projects, a connector that meets the required specifications and can be supplied consistently may offer greater long-term value than a lower-priced alternative that requires additional engineering changes or installation work.

5. Choose a Supplier That Understands the End Application

A manufacturer familiar with industrial power distribution and data center infrastructure may be better positioned to understand the requirements of a particular project.

For example, an AI data center integrator may need more than a standalone connector. The project could also require compatible cable assemblies, equipment interfaces, and power distribution components.

A supplier that can review these interfaces and provide relevant documentation can help simplify the sourcing process.

ANEN's 125A Industrial Connector Solutions

ANEN provides industrial connector solutions for power connection requirements in industrial environments and selected data center applications.

Its 415V 125A product range includes the following options:

415V 125A Cord-Mount Plug

Designed for cable-mounted plug applications requiring the specified 415V and 125A ratings. Buyers should confirm the exact pole configuration, clock position, cable-entry range, and environmental rating for the required model.

415V 125A Cord-Mount Connector

A cable-mounted connection option for compatible industrial power interfaces. Confirm the mating arrangement and complete electrical configuration before ordering.

415V 125A Panel-Mount Plug Inlet

Designed for equipment requiring a fixed panel-mounted connection interface. Buyers should provide the enclosure cutout and mounting requirements to confirm mechanical compatibility.

415V 125A IP67 Panel-Mount Receptacle with Junction Box

A panel-mount solution specified with an IP67 rating for applications requiring dust-tight construction and protection against temporary immersion under the applicable test conditions. Buyers should verify the rating of the complete assembly and the conditions under which it applies.

415V 63A Cord-Mount Plug

For projects that require a lower rated current, ANEN also offers a 415V 63A cord-mount plug. This option may be appropriate where the circuit design calls for a 63A connection rather than a 125A connection.

The 63A and 125A products are not interchangeable solely because they operate at the same nominal voltage. Each selection must match the circuit's current requirements, connector configuration, cable specifications, and intended use.

For all these products, voltage, current, pole count, clock position, IP rating, and cable compatibility must be confirmed against the exact product specification. Buyers should not assume that every feature is shared across the product range.

Frequently Asked Questions

Q:What Is a 125A Industrial Power Connector Used For?

A:125A industrial power connector is used to establish a power connection in applications designed around its rated current and other electrical specifications. Potential applications include industrial machinery, power distribution equipment, electrical cabinets, and selected AI data center infrastructure.

The appropriate connector depends on the system voltage, pole configuration, cable requirements, mounting style, and environmental conditions.

Q:What Is the Difference Between a 125A Industrial Plug and a 125A Industrial Connector?

A:The terms may be used differently across product catalogs and markets, so buyers should check the exact product design rather than relying on terminology alone.

plug commonly connects to a compatible socket-outlet or receptacle, while other connector components may provide a cable-mounted or fixed equipment interface. The mating arrangement, electrical configuration, and mechanical design determine compatibility.

Always verify the manufacturer's drawings and specifications before ordering.

Q:Is an IP67 Industrial Connector Suitable for Outdoor Use?

A:An IP67 industrial connector provides dust-tight protection and protection against temporary immersion under specified test conditions. It may be suitable for certain outdoor applications, provided its operating conditions and complete installation meet the requirements.

However, IP67 alone does not establish suitability for every outdoor environment. Temperature, UV exposure, corrosion, mechanical impact, and other environmental factors may also need to be considered.

Q:Can a 125A IEC 60309 Connector Be Used in an AI Data Center?

A:Yes, a suitably specified industrial connector may be used in an AI data center where the electrical design calls for that type of connection.

The connector must match the system voltage, current, pole arrangement, cable assembly, and applicable installation requirements. It should also be compatible with the intended PDU or other power distribution equipment.

The final selection should be reviewed as part of the complete electrical design.

Q:What Information Is Needed to Request a Quote for a 125A Industrial Connector?

A:To obtain an accurate quotation, provide the required voltage, current, pole configuration, clock position, mounting style, IP rating, cable specifications, target market, and estimated order quantity.

Technical drawings, photographs, existing samples, and any required certification documentation can also help the manufacturer assess the project.

If a standard product does not meet the application requirements, explain the necessary changes so the supplier can evaluate a custom solution.

Find the Right 125A Industrial Power Connector for Your Project

Selecting the right 125A industrial power connector requires a clear understanding of the electrical system, installation environment, and mechanical connection requirements.

Voltage and current ratings establish the starting point, but pole configuration, clock position, IP rating, cable compatibility, and applicable certifications are equally important. Buyers should also evaluate the manufacturer's ability to provide technical documentation, review drawings, supply samples, and maintain consistent production quality.

For distributors, equipment manufacturers, and data center solution providers, ANEN offers a range of industrial power connection options, including 415V 125A cord-mount plugs, cord-mount connectors, panel-mount plug inlets, and IP67 panel-mount receptacles with junction boxes.

Looking for a 125A industrial power connector for your next project?

Contact ANEN to discuss your application requirements. Our team can help you review the relevant product specifications and evaluate suitable connection options.

Request technical specifications, product drawings, samples, or a quotation for your project. Whether you are sourcing standard industrial connectors or evaluating a customized solution for power distribution equipment, ANEN can work with you to identify the appropriate product configuration.
