Why Choose ANEN’s 10kV Bypass System?
Core Selling Points
·High-Voltage Insulation: ANEN's 10kV Bypass System is designed to withstand voltages up to 10,000V, offering industry-leading insulation that prevents accidental discharge, ensuring safety in high-voltage environments.
·Superior Environmental Adaptability: Our systems undergo stringent testing for environmental conditions, making them highly effective even in extreme high temperatures, high humidity, and adverse weather conditions.
·Quick-Connect Technology: The Bypass Quick-Connect feature enables fast and secure connections with minimal downtime, which is critical during maintenance or system upgrades.
·Customization Options: ANEN provides flexible solutions with a variety of connector types, system configurations, and optional features tailored to your operational needs.
How We Stand Out from Competitors
·Factory Direct Pricing: By manufacturing directly, ANEN offers cost-effective bypass device solutions with no MOQ, allowing for personalized orders without large-scale commitments. This means we can provide competitive prices, particularly when compared to third-party resellers or distributors.
·Unmatched Quality: Our bypass devices are rigorously tested to meet international standards, ensuring durability and reliability that stand out in the market. The superior quality ensures minimal maintenance and long-lasting performance compared to cheaper alternatives.
·Exceptional After-Sales Support: We don’t just deliver products; we offer comprehensive support and guidance throughout the lifecycle of the system. From installation to troubleshooting, ANEN’s expert team is always available.
·High Production Capacity: ANEN’s large-scale factory allows us to handle large orders efficiently, ensuring timely delivery without compromising on quality.
10kV Bypass System Overview: Features and Specifications
Key Features and Benefits
·High-Voltage Insulation for Safety: Built with high-voltage insulation, the system ensures safety in high-tension environments, preventing electric shocks or system failures due to insufficient insulation.
·Waterproof and Weatherproof: Each component is designed with waterproof and weather-resistant materials, allowing the system to function in both wet and dry conditions, and extreme climates, from deserts to coastal areas with high humidity.
·Bypass Quick-Connect Mechanism: The system includes a quick-connect function that reduces installation time and increases operational efficiency. This innovation allows technicians to make connections quickly, minimizing downtime during maintenance or system reconfiguration.
·Heavy-Duty Electrical Connectors: The electrical connectors used are made of high-grade materials that maintain conductivity while ensuring reliable insulation and resistance to environmental stressors such as temperature fluctuations and humidity.
10KV BYPASS WORK EQUIPMENT
Quick plug
Features:
The plug connector is made of stainless steel, offering high mechanical strength, resistance to deformation and damage, and durability;
The housing is made of aluminum alloy, making it lightweight and easy to handle;
The insulation material uses high-strength EPDM, providing excellent electrical performance and resistance to impact damage.
The product features quick plug-and-play functionality, safety, reliability, and strong protection performance.
Application areas: Standard components for 10kV bypass systems, installed at the end of bypass cables, used for electrical connections between bypass equipment.
Technical Parameters：
Rated voltage(Volts)：10kV
Rated current (Amperes)：200A
Usage rated frequency：50Hz
Power-frequency withstand voltage：39kV/5min
Partial discharge：15kV,≤10pC
Temperature rise：≤55K
Overhead drainage cable
Features:
The conductor is made of tinned annealed soft copper.
The insulation is made of ethylene-propylene rubber, with a nominal insulation thickness of 5.0mm and a minimum thickness of not less than 4.4mm. The insulation is extruded simultaneously with a semiconducting inner shield and a peelable outer shield;
The cable outer sheath has clear yellow, green, and red phase markings.
Application areas:
1. One end connects quickly to the overhead line;
2. The other end connects quickly to the bypass equipment.Technical Parameters：
Rated voltage(Volts)：8.7/15kV
Rated current (Amperes)：200A
Usage rated frequency：50Hz
Power-frequency withstand voltage：39kV/5min
Partial discharge：15kV,≤10pC
Temperature rise：≤55K
Quick socket for standard cabinet
Features:
1. The plug connector uses stainless steel material, offering high mechanical strength, resistance to deformation and damage, and ensuring durability;
2. The outer casing is made of aluminum alloy, making it lightweight and easy to handle;
3. The insulation material uses high-strength EPDM (ethylene propylene diene monomer) material, providing excellent electrical performance and resistance to impact damage;
4. The product features a quick-connect function for interfacing with bypass systems, allowing for convenient and rapid installation of the quick-connect interface in new market ring network cabinets.
Application areas: The auxiliary components of the 10kV bypass system are primarily used for the modification of newly added market node cabinets, including the installation or reservation of quick-connect interfaces, and can be connected to the quick connectors of the bypass system.
Technical Parameters：
Rated voltage(Volts)：10kV
Rated current (Amperes)：200A
Usage rated frequency：50Hz
Power-frequency withstand voltage：39kV/5min
Partial discharge：≤10pC
Temperature rise：≤55K
Bypass load switch
Features:
1. The switchgear enclosure is made of 304 stainless steel, ensuring permanent corrosion resistance.
2. The main circuit operating mechanism uses a simple toggle structure, making it unaffected by high-frequency vibrations, gravity, or external impacts caused by earthquakes or strong winds, resulting in very stable performance. It has a long mechanical life and can be operated manually or electrically, and is highly compatible with backup protection devices.
3. The switch uses a quick-disconnect bushing, with optional European and American self-locking quick-connect interfaces.
4. Equipped with CT/RVT protection devices: to prevent overcurrent in current measuring devices and CT open circuits, and overvoltage in voltage measuring devices.
5. Features live voltage indication and counter display; and includes phase verification function.
6. Offers manual operation, electric operation, local remote control operation, and remote control opening and closing functions (optional), providing convenient, fast, and safe operation.
7. Includes fault detection, alarm, and automatic fault disconnection functions (optional), facilitating fault detection and protection.
Application areas: This is an auxiliary component of the 10kV bypass live-line working system, primarily used for controlling the switching of the working system lines. It is equipped with quick-connect interfaces on both sides, allowing for quick connection to the self-locking quick-connect terminals of the bypass cable.
Technical Parameters：
Rated voltage(Volts)：12kV Rated current (Amperes)：630A
Usage rated frequency：50Hz Rated short-time withstand current：20kA/4s
Rated short-time withstand current (peak)：50kA Rated short-circuit making current (peak)：50kA
Rated Active load breaking current：400A Breaking times of rated active load breaking current：E3
Rated power frequency withstand voltage: Phase-to-phase and phase-to-ground/42kV, break/48kV
Rated lightning shock resistance: Phase-to-phase and phase-to-ground/75kV, break/85kV
Partial discharge experiment: 1.1 Ur, ≤10 pC Mechanical life: 5000
Annual leakage rate of SF6 gas: ≤0.5% Protection grade of switch body: IP68
Load switch weight: 100kg
Application Areas for the 10kV Bypass System Industries and Real-World Use Cases
ANEN’s 10kV Bypass System is indispensable in industries where high-voltage electrical systems are crucial. Below are some of the most common applications:
Power Distribution Networks
Electrical Substations
Renewable Energy Systems
Heavy Industrial Facilities
Urban Power Distribution
Power Distribution Networks
The bypass system is crucial in distribution cabinets and substations where high-voltage transmission and control signals are used. It provides continuous power flow even during maintenance or repairs, ensuring there is no disruption to the overall system.
Electrical Substations

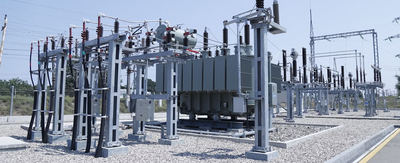

Substations require high-voltage bypass devices for maintenance and system reconfiguration. The bypass system ensures that power is rerouted safely while work is being performed on critical components like transformers and circuit breakers.
Renewable Energy Systems

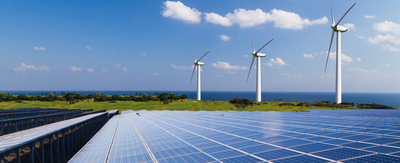

Wind farms and solar power plants increasingly require bypass systems for stable grid integration. These systems provide the ability to reroute power during maintenance, ensuring uninterrupted electricity flow to the grid.
Heavy Industrial Facilities
In industries such as manufacturing and mining, where constant power is essential for operations, bypass work equipment allows for maintenance without affecting production, keeping the systems running smoothly.
Urban Power Distribution

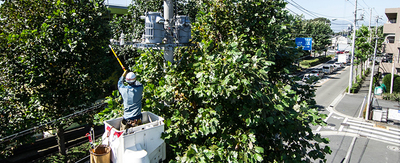

In urban centers, where electrical supply reliability is paramount, bypass devices are used to ensure that power is distributed effectively, even when parts of the grid are down for maintenance or upgrades.
Solutions: Customization and Advantages
Tailored Solutions to Fit Your Needs
ANEN’s 10kV Bypass System is designed for easy integration into existing infrastructure, with a variety of custom options:
·Custom Connector Types: Choose from different connector types to suit your system requirements, including options for quick-connect and more secure locking mechanisms.
·Flexible Configuration: Whether you need a temporary or permanent bypass system, ANEN provides flexible configurations to fit your operational needs.
·Engineering Support: Our engineering team works with customers to design a system that meets specific site conditions and power needs, offering personalized solutions and expert guidance throughout the process.
Why Choose ANEN for Your 10kV Bypass System Needs?
At ANEN, we place a high priority on quality. Each of our bypass systems is tested to meet international standards, ensuring reliability and safety. From high-voltage insulation to weatherproofing, our products stand up to the highest expectations of the power industry.
ANEN’s direct manufacturing process eliminates the need for third-party intermediaries, allowing us to offer competitive pricing without minimum order quantities (MOQ). Whether you need a single unit or an entire fleet, we can meet your exact needs with no hassle.
We provide ongoing support for our bypass devices, from installation assistance to long-term maintenance guidance. Our team is dedicated to ensuring your system runs smoothly throughout its lifecycle, offering troubleshooting and operational training as needed.
Thanks to our high-capacity production facilities, we can deliver large orders in a timely manner, making ANEN an ideal partner for large-scale projects with tight deadlines.
Quality Assurance and Certification
Direct Manufacturer, No MOQ
Unmatched After-Sales Support
Timely Delivery and Scalability
FAQ:Got Questions? We’ve Got Answers!
A1:What is the lifespan of the 10kV Bypass System?
Q1:The system is built for long-term reliability. With proper maintenance, it can last up to 20 years or more, ensuring a solid return on investment.
A2:Is it difficult to install the 10kV Bypass System?
Q2:The quick-connect technology simplifies installation and setup. Our team provides guidance to ensure smooth integration into your existing systems.
A3:Can I use the 10kV Bypass System in extreme weather conditions?
Q3:Yes, the system is designed to withstand extreme temperatures (from -40°C to 85°C) and high humidity, making it suitable for both outdoor and indoor applications in challenging climates.
A4:What customization options are available?
Q4:ANEN offers customizable connector types, insulation materials, and configurations to suit your specific needs. Our engineers can work with you to create a solution that fits your infrastructure perfectly.
A5:How can I get in touch with ANEN for a quote or consultation?
Q5:Contact us today through our website or call our sales team to discuss your requirements. We’re happy to provide a personalized consultation and offer a competitive quote based on your needs.
Call to Action!
Ready to enhance the reliability and safety of your electrical systems? Contact ANEN today to learn more about how our 10kV Bypass System can provide the ultimate solution for your high-voltage needs. Get in touch for a free consultation, detailed quote, or to order directly from the manufacturer.
