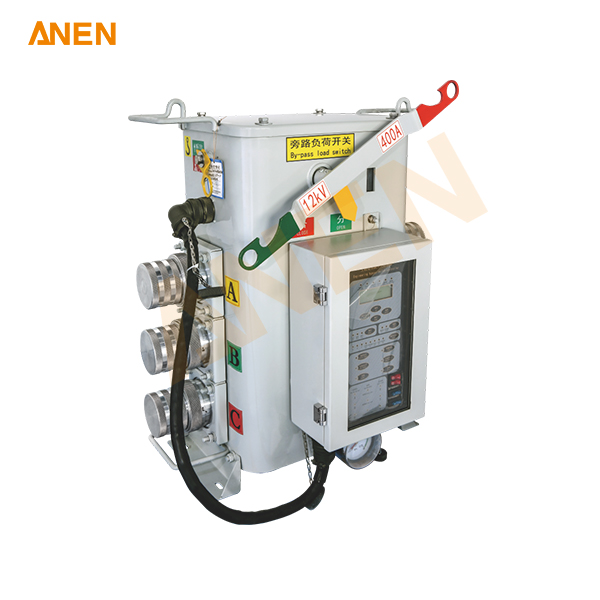

Bypass Load Switch for High-Voltage Systems – Durable, Quick-Connect, Waterproof & Safe

Product Description

The Bypass Load Switch is engineered to ensure optimal performance in high-voltage electrical bypass systems. Designed for reliable, continuous operation in challenging environments, this switch offers a solution to ensure smooth, uninterrupted power during maintenance or emergency bypass operations.

Crafted with 304 stainless steel, it resists corrosion and environmental wear, making it ideal for both outdoor and indoor applications. Whether you're managing high-voltage electrical networks, or operating in areas prone to earthquakes, strong winds, or high-frequency vibrations, the Bypass Load Switch guarantees operational reliability and longevity.

Detailed Description

The Bypass Load Switch combines high-quality materials with advanced engineering to deliver a highly durable and efficient product. Let's break down why it’s the best choice for high-voltage electrical applications:

Material Excellence & Durability

The switch body is constructed from 304 stainless steel, a material chosen specifically for its corrosion resistance and durability in harsh environments. Whether exposed to extreme weather, saltwater, or moisture, the material prevents degradation, ensuring the switch will perform reliably for years.

• Corrosion Resistance: Resists corrosion, making it ideal for coastal or industrial environments where exposure to water and chemicals is common.

• Long-Lasting Performance: The robust material provides high resistance to wear and tear, extending the life of the switch and reducing the need for frequent maintenance.

Mechanical Stability

The toggle mechanism uses a unique inverted triangle structure, engineered to withstand high-frequency vibrations, gravity shifts, and external shocks like earthquakes or strong winds. This structural design ensures stable performance, even under challenging operational conditions.

• Vibration Resistance: The toggle mechanism prevents malfunctions caused by frequent vibrations, providing peace of mind during power operations.

• Shock Resistance: Protects the system from damage caused by environmental shocks, such as earthquakes or sudden mechanical impacts.

Safety & Protection Features

Safety is at the core of the Bypass Load Switch design. It’s equipped with multiple protective features that work to safeguard both the system and personnel:

• CT/RVT Protection: The current transformer (CT) and residual voltage transformer (RVT) protection devices prevent overcurrent and voltage spikes, which could otherwise damage sensitive measuring devices.

• Fault Detection & Alarms (optional): The switch automatically detects faults in the system, triggering real-time alarms and activating automatic shutdown functions to prevent further damage or operational hazards.

• Waterproof (IP68): With an IP68 protection grade, the switch is fully waterproof and can operate in submerged or high-moisture environments, ensuring a long lifespan in outdoor or flooded conditions.

Quick-Connect Capability

One of the standout features is its quick-connect functionality. The self-locking quick-connect plugs on both sides of the switch allow for easy and safe connection to bypass systems. This feature saves you time during installation and minimizes the risk of incorrect or loose connections, which could lead to operational failure.

• European & American Compatibility: The quick-connect interfaces are available in both European-style and American-style configurations, making it compatible with a wide range of existing systems.

• Ease of Installation: The self-locking connectors ensure a secure connection without requiring additional tools or steps. This reduces the time and complexity typically associated with switching equipment installation.

High Voltage and Short-Circuit Protection

With 12kV rated voltage, the Bypass Load Switch is designed to manage high-voltage operations efficiently. It also supports high short-circuit withstand capabilities:

• Short-Circuit Withstand Current: Rated for 50kA peak withstand current, this switch can handle the immense power surges associated with short-circuits, protecting your system from damage.

• Lightning Surge Protection: Rated for 42kV phase-to-phase lightning impulse withstand voltage, it ensures continued operation even in extreme electrical storms or surges.

Mechanical Life & Efficiency

Designed to last, the Bypass Load Switch boasts a mechanical life of 5000 cycles, meaning it can be manually or electrically operated thousands of times without significant wear. For busy industrial environments, this means less downtime and more reliability.

Why Choose ANEN?

When you choose ANEN, you’re partnering with a leading bypass device manufacturer known for innovation, quality, and customer-centric solutions. Here's why you should choose us:

• Source Factory with No MOQ: You don’t need to place a large order to access our top-tier products. Whether you need a single unit or bulk orders, we are flexible to meet your needs.

• Certified Quality: Our products meet international standards and are backed by quality assurance and certifications that guarantee safe, reliable performance.

• Customer Support: Our technical team is always ready to assist with installation, troubleshooting, and maintenance. We offer after-sales support to ensure your system runs smoothly.

• Global Reach: Serving industries worldwide, we understand diverse needs and provide tailored solutions for various markets.

For personalized support, technical inquiries, or pricing details, contact us directly via [Form].

Frequently Asked Questions (FAQ)

Q:What makes the Bypass Load Switch essential for high-voltage systems?

A:It’s built to withstand extreme conditions with 12kV rating, quick-connect plugs, and high short-circuit and lightning protection, ensuring operational continuity in high-voltage systems.

Q:How easy is the Bypass Load Switch to install?

A:The quick-connect feature allows for fast and secure installation without the need for tools, reducing setup time and complexity.

Q:Is the switch safe for outdoor use?

A:Yes! With an IP68 waterproof rating, the Bypass Load Switch can function in both wet and extreme environments, making it perfect for outdoor installations.

Q:How do I know this product will be durable?

A:The switch has a 5000 mechanical cycle life, is built with 304 stainless steel for corrosion resistance, and includes shock and vibration-resistant features, ensuring long-term reliability.

Q:Can I operate this switch remotely?

A:Yes! You can remotely control the switch, providing flexibility and ease of use in managing bypass operations.
