| Part No | EZF100BBG42 | Input voltage | 200~240VAC/346~415VAC, 3-PHASE, WYE | | Output voltage | 200~240VAC, SINGLE PHASE | Qty of outlet | (42) C39 socket, with self-locking, C39 combination socket (C13/C15/C19/C21) | | Input current | 100A | Circuit breaker | 24 UL489 1P 20A MCB 10kAIC | | Dimension(LxWxH) | 1800*100*80 | Certification | UL/CSA (ETL Mark) | | Smart features | Metering/Switching Each Outlet HTTP/SNMP/SSH/MODBUS/REDFISH API | Outlet type | C39 | | Outlet control | Smart control/monitoring | Rack unit | 0U | | Input power cord | UL 5C/2AWG, 10FT, | Input plug type | IEC 60309 415V/125A 6H IP67 Plug |

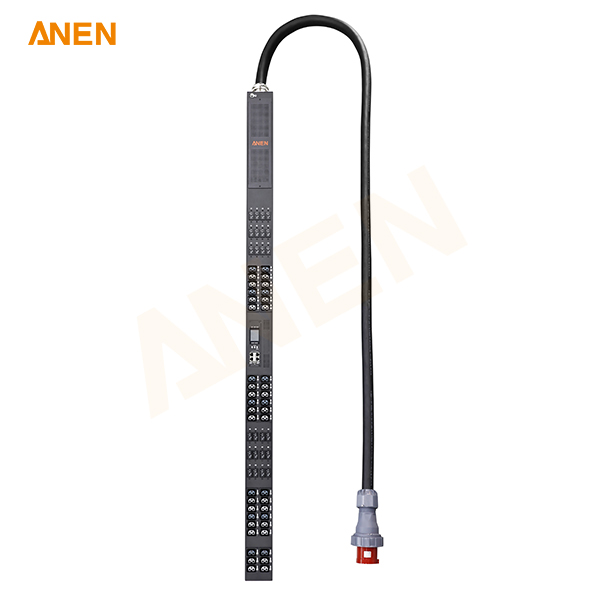

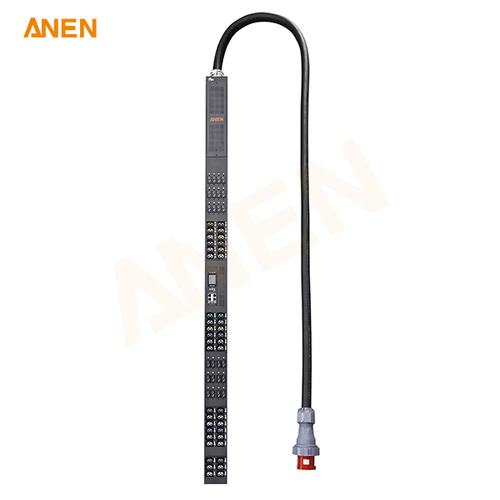

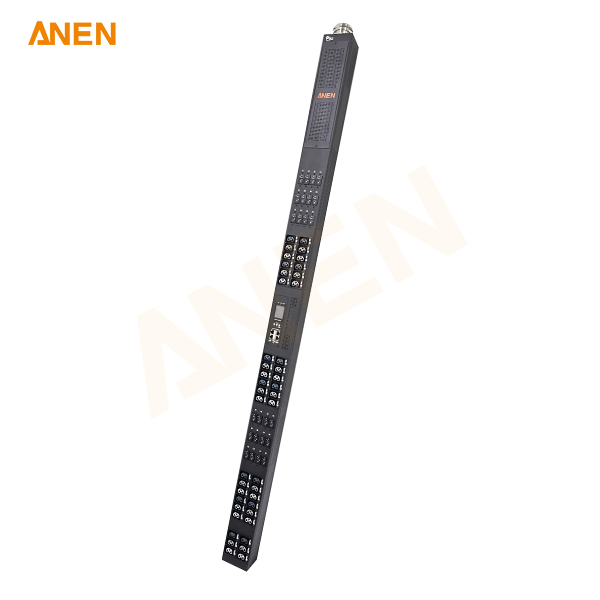

The ANEN 415V 100A C39 42-Port Smart PDU is a high-capacity smart power distribution unit engineered for modern AI data center environments, high-performance computing (HPC), and other high-density IT applications. Its 3-phase Wye input, 100A-rated input current per phase, 42 self-locking C39 outlets, branch-circuit protection, and intelligent monitoring provide a practical foundation for reliable data center power distribution.

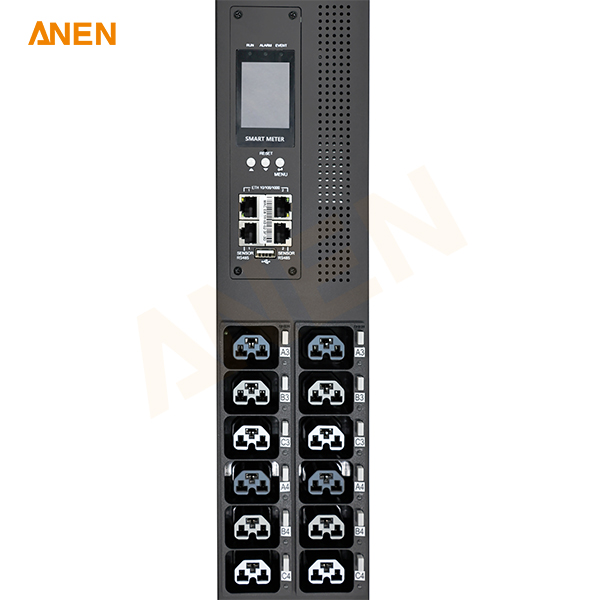

Designed around demanding data center power requirements, this pdu power distribution unit combines high-current power delivery with outlet-level intelligence. Operators can monitor input and individual outlet current, voltage, power, and energy consumption while remotely switching each outlet ON or OFF.
The C39 outlet design also supports C13, C15, C19, and C21 equipment, giving data center operators greater flexibility when deploying mixed-generation servers, networking equipment, and high-performance computing hardware.
ANEN manufactures this power distribution unit for data center applications as a direct factory source. With OEM/ODM capabilities, engineering support, quality management systems, and a broader portfolio covering PDUs, connectors, cables, power distribution cabinets, and related power infrastructure, ANEN can support complete data center power solutions rather than supplying a standalone rack component. Smart Power Distribution Unit Design for High-Density Data Center Power DistributionA modern power distribution unit data center application requires more than basic electrical distribution. Rack power equipment must support higher loads, provide accurate operating information, simplify maintenance, and help engineers identify abnormal conditions before they affect critical IT equipment.
The ANEN 415V 100A C39 42-Port Smart PDU addresses these requirements through a combination of high-current three-phase input architecture and intelligent outlet-level monitoring.
The PDU accepts 200–240VAC/346–415VAC, 3-phase Wye input and is rated at 3 × 100A. The design distributes 200–240VAC single-phase power to 42 C39 outlets.
Alternating phase sequencing helps balance the rack load across phases. The outlets use three colors to identify phase allocation: Dark gray — Phase A Light gray — Phase B White — Phase C
This visual identification simplifies installation, load balancing, troubleshooting, and maintenance. For engineers working with a high-density data center power system, clear phase identification can reduce unnecessary service time and improve rack-level power management.

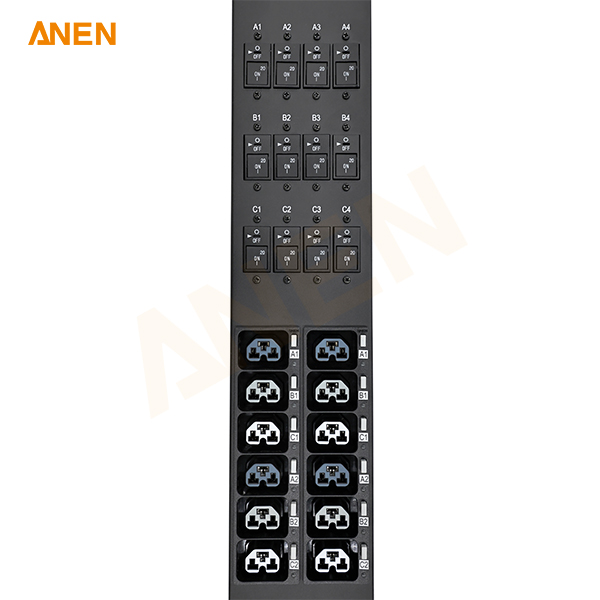

The PDU also incorporates 24 independent 20A single-pole UL489 circuit breakers with a 10kA interrupting rating. The input protection uses three 100A UL Class J time-delay fuses rated at 200kA, creating a robust protection architecture for high-current rack distribution. PDU Power Distribution Unit Specifications and Electrical ArchitectureThe electrical architecture of a 3 phase PDU directly affects how effectively a rack can support high-density computing equipment. AI servers and HPC platforms can place substantially higher demands on rack-level power infrastructure than conventional enterprise IT equipment.
This 415V 100A PDU uses a 3-phase Wye input architecture to deliver substantial rack capacity while distributing single-phase output power to connected equipment.
ANEN PDU Manufacturer Advantages for Data Center Power SolutionsANEN is a direct factory source for PDU and power connection products. Founded in 2006, the company combines product development, engineering, manufacturing, quality control, and customer support under one organization. Direct factory sourcing gives B2B customers closer access to engineering and production resources. ANEN supports OEM/ODM projects and can work with customers on customized specifications, structures, labeling, cable assemblies, and related requirements. Integrated Manufacturing CapabilitiesANEN's manufacturing capabilities include injection molding, precision metal processing, automated assembly, CNC machining, cable harness production, and electrical performance testing.
This integrated capability is particularly valuable for customers purchasing multiple components within a larger data center power distribution project. Quality and CertificationANEN maintains ISO9001, ISO14001, ISO45001, and IATF16949 management system certifications. Product certifications and approvals include UL, cUL, ETL, TUV, and CE across applicable product ranges.
For this 415V 100A C39 Smart PDU, the specified regulatory approval is UL/CSA with ETL Mark. Data center operators, distributors, system integrators, and equipment manufacturers may have different rack architectures and branding requirements. ANEN supports OEM/ODM development to help customers adapt PDU configurations to project requirements
The standard finish for this model is RAL9005 powder coating, while custom colors are available for qualified projects. Comprehensive Product PortfolioANEN's capabilities extend beyond the PDU itself. Customers can source PDUs, plugs, connectors, power cables, cable assemblies, power distribution cabinets, racks, and related power products from the same manufacturer.
This integrated approach helps create more consistent data center power solutions across the power chain. Technical and After-Sales SupportANEN provides technical documentation, engineering coordination, installation guidance, and after-sales support. This helps customers move from product selection to deployment with fewer communication gaps. Power Distribution Unit for Data Center Customization OptionsEvery data center project has different rack dimensions, electrical architectures, monitoring requirements, and branding standards. ANEN therefore supports customization beyond the standard configuration.
Potential customization areas include: PDU dimensions and mechanical structure Outlet quantity and configuration Outlet types Input connector and cable configuration Cable length and cable assembly Branding and labeling Housing finish and color Communication interfaces Monitoring requirements Packaging
OEM/ODM specificationsThe standard housing uses RAL9005 powder coating. Custom colors can also be discussed for project-specific requirements.
For large AI infrastructure projects, ANEN can coordinate the PDU with compatible connectors, cables, and other rack power components to create a more complete power distribution unit data center solution.
Data Center Power Distribution Unit for AI and HPC ApplicationsAI servers, GPU clusters, HPC systems, and other accelerated computing platforms place significant demands on rack power infrastructure. Their power consumption can vary according to workload, utilization, and system configuration.
A high-capacity data center power distribution unit needs to support this changing environment without sacrificing visibility or operational control. The ANEN 415V 100A C39 Smart PDU is suitable for applications such as: AI Data CentersAI training and inference infrastructure often requires high-density racks with sophisticated power monitoring. The 100A three-phase input and 42-outlet architecture provide a foundation for high-density rack deployment. High-Performance ComputingHPC clusters can contain large numbers of processors, accelerators, storage systems, and networking components. Outlet-level monitoring helps operators understand how individual systems contribute to rack consumption. Enterprise Data CentersThe PDU can support conventional server and networking racks that require flexible outlet compatibility and intelligent power monitoring. Colocation FacilitiesColocation operators need accurate power information for capacity planning, customer management, and infrastructure monitoring. Individual outlet metering can provide more detailed consumption data at rack level. Edge and High-Density ComputingCompact computing environments with increasing processing requirements can also benefit from high-capacity data center power distribution and remote outlet control.
Data Center Power Solutions from PDU to Complete Power InfrastructureA reliable rack PDU represents only one part of a complete data center power system. The performance of the rack distribution layer depends on the quality and compatibility of upstream and downstream components.
ANEN approaches the application as an integrated power infrastructure project.
Our product portfolio covers: This broader portfolio allows customers to coordinate the PDU with upstream power distribution and downstream equipment connections.
For example, a project may combine a 3-phase high-current PDU with appropriate data center power cables, data center power whips, connectors, and distribution cabinets. Matching these components during the design stage can simplify procurement and improve system compatibility.
ANEN also supports OEM/ODM requirements for customers who need customized PDU structures, labeling, outlet configurations, cable assemblies, branding, or other project-specific requirements.
Data Center Power Design and Load Management SolutionsEffective data center power design requires engineers to consider more than rated current. Phase balance, branch protection, equipment compatibility, monitoring, cable selection, rack density, and future expansion all influence the final system architecture.
The alternating A/B/C phase arrangement of this PDU helps engineers identify phase allocation quickly. The three outlet colors provide a straightforward visual reference during installation and service.
For high-density racks, monitoring can also support better capacity planning. Input measurements show overall rack demand, while outlet measurements provide a more granular picture of equipment consumption.
This data can help facility teams evaluate: Rack power utilization Phase loading Equipment-level consumption Energy usage Potential capacity constraints Power distribution changes during expansion
When paired with suitable upstream protection, rack infrastructure, and data center power supply equipment, the PDU can become part of a scalable power architecture for AI and HPC environments. Data Center Power Cables and Power Whips for Complete Rack IntegrationPower distribution performance depends on the complete connection path from the source to the IT load. That includes the PDU, connectors, cables, plugs, receptacles, and upstream distribution equipment.
ANEN supplies complementary data center power cables and data center power whips to support rack-level power deployment.
Cable assemblies can be configured to match the electrical requirements and connector interfaces of the project. ANEN's experience in power connectors and cable assembly manufacturing also helps customers coordinate PDU and cable requirements through one manufacturing source.
For large deployments, using compatible PDU, connector, and cable components can simplify procurement and reduce coordination between multiple suppliers.
This approach supports a more cohesive data center power system, especially where high current, high density, and customized rack configurations create demanding engineering requirements.
FAQ: 415V 100A C39 Smart PDU for Data Center Power DistributionQ:What is a 415V 100A C39 Smart PDU? A:The 415V 100A C39 Smart PDU is a high-capacity rack pdu power distribution unit designed for AI data centers, HPC, enterprise computing, and other high-density applications. It uses a 3-phase Wye input rated at 3 × 100A and provides 42 self-locking C39 outlets.
Q:How many outlets does this smart PDU have? A:The PDU provides 42 C39 outlets. The C39 socket is compatible with C13, C15, C19, and C21 connections.
Q:What voltage does the PDU provide to connected equipment? A:The input supports 200–240VAC/346–415VAC, 3-phase Wye. The output provides 200–240VAC single-phase power.
Q:Does the PDU support outlet-level monitoring? A:Yes. Each outlet can be monitored for current, voltage, power, and kWh energy consumption.
Q:Can each outlet be remotely switched? A:Yes. The smart PDU supports individual outlet ON/OFF switching.
Q:Which communication protocols are supported? A:The smart meter supports Ethernet and RS485 communication, with HTTP, SNMP, SSH, and MODBUS protocols. |
