Product Description
When it comes to making reliable connections in low-voltage electrical systems, the Busbar Clamp stands as a superior choice for professionals and industries that demand precision and security. Whether you’re a bypass device manufacturer, working in electric power distribution, or involved in industrial setups, this busbar connector is designed to meet your highest standards for safety, efficiency, and long-term reliability.

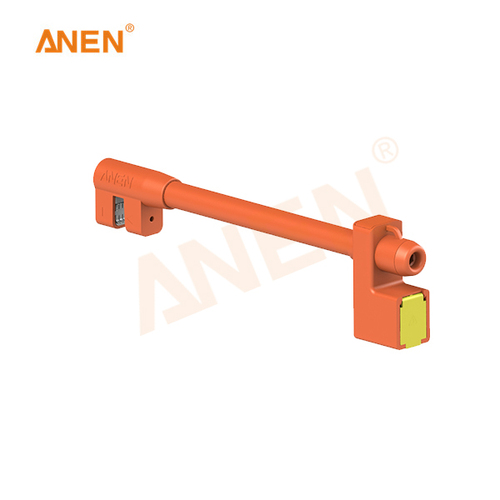

This Busbar Clamp offers a seamless way to connect parallel busbars, whether bare or insulated, ensuring an effective and quick installation process. It is ideal for bypass systems that require secure, high-current connections for continuous performance, especially in compact or narrow spaces. Its innovative design combines a 360° rotating handle with a compact clamping mechanism, making it an essential tool for anyone working with electrical connectors in confined spaces or critical systems.
Detailed Description
The Busbar Clamp is engineered for high-performance electrical connections, offering unmatched strength and reliability across a broad range of applications. Built for low-voltage use, the clamp is designed to handle demanding environments without compromising performance.
Key Specifications:
Short Circuit Current:
12KA for 1 second
10KA for 3 seconds
9KA for 4 seconds
Designed to withstand high short-circuit currents, the clamp provides an added layer of protection to your electrical systems, preventing damage to equipment during potential faults.
Busbar Thickness Compatibility: 3mm to 10mm
No matter the busbar size, this clamp offers a wide range of compatibility, working with busbars of varying thicknesses to accommodate different installation requirements.
Operating Temperature Range: -40℃ to 125℃
Built to operate in extreme temperature conditions, the Busbar Clamp is ideal for both indoor and outdoor installations. Whether you're working in high-heat environments or freezing cold conditions, this clamp will maintain optimal functionality.
Flammability: UL94V0
This clamp is fire-resistant, meeting UL94V0 standards, which is critical for safety in environments where electrical equipment is exposed to high temperatures or fire hazards.
Core Functions & Unique Features:
Versatility in Connections:
Whether you need to connect bare busbars or busbars with coatings/insulation, the Busbar Clamp allows seamless connections, making it suitable for a variety of installations, from low-voltage systems to more complex setups in electrical power plants.
Compact Clamping Mechanism with Extended Handle:
The compact design is engineered to fit in tight, confined spaces, allowing you to connect multiple levels of parallel busbars simultaneously. The extended handle design improves leverage, making it easier to connect to busbars in hard-to-reach areas. This feature is especially useful in narrow spaces, where traditional tools might struggle.
360° Rotating Handle for Optimal Operation:
One of the standout features of this Busbar Clamp is its 360° rotating handle. This flexible design allows you to operate the clamp from any angle, significantly reducing strain on your cables and minimizing stress on both the user and the equipment. The ability to rotate the handle provides unmatched ease of operation, particularly in tightly packed electrical enclosures.
Quick and Secure Connection:
The Busbar Clamp is designed to be used with a torque wrench, ensuring that the connection is made securely and quickly. Whether you're fixing or unfixing the clamp, the process is efficient and reliable, ensuring minimal downtime when installing or maintaining connections.
