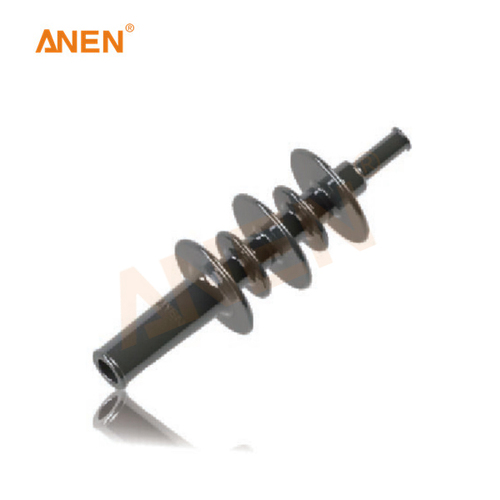

10kV Prefabricated Outdoor Termination – Premium High-Voltage Connection for Bypass Systems

Product Description

The 10kV Prefabricated Outdoor Termination sets a new standard in high-voltage connectivity. Designed for seamless integration in bypass systems and outdoor environments, it provides superior protection and performance under the most demanding conditions. Made from high-strength EPDM rubber, this termination is engineered to resist environmental stress, including extreme weather, UV exposure, and physical abrasion, ensuring long-term durability and reliability.

Key benefits include an advanced dielectric material that minimizes electrical stress at critical junctions, effectively distributing it to prevent insulation failure. The termination also supports low partial discharge levels, ensuring that your system operates with minimal electrical noise and enhanced safety.

With its waterproof capabilities, this termination ensures that even in high-moisture environments, your system maintains optimal performance. Furthermore, its corrosion-resistant properties ensure a longer lifecycle, even in coastal or industrial zones where other materials would degrade quickly.

Ideal for both routine maintenance and emergency bypass connections, the 10kV Prefabricated Outdoor Termination offers flexibility and ease of installation. Its quick-connect design simplifies setup, reducing downtime and minimizing the need for additional tools or complex procedures.

Detailed Description

The 10kV Prefabricated Outdoor Termination is built to last, designed for applications where reliability and performance are non-negotiable. The choice of EPDM rubber as the primary material is crucial to its performance. EPDM, or Ethylene Propylene Diene Monomer, is a synthetic rubber that excels in resisting ozone, weathering, and temperature fluctuations. The material's unique blend of elasticity and strength ensures it maintains its integrity in both extreme cold and hot conditions, making it ideal for outdoor installations across diverse geographical locations.

One of the standout features of the 10kV Termination is its ability to distribute electrical stress efficiently. When high-voltage systems are under load, stress concentrations can form at the cable insulation shield break. This can lead to potential failures or reduced system lifespan. Our high-dielectric material ensures that these stress points are mitigated, promoting safer and more stable operation.

The power-frequency withstand voltage rating of 39kV ensures that the termination can handle surges in power that exceed its rated voltage, adding an extra layer of protection for systems exposed to transient spikes. The partial discharge specification of ≤10pC at 15kV further enhances the product’s reliability, ensuring that the termination operates efficiently under high-voltage conditions without introducing harmful electrical disturbances into the system.

Another critical aspect is the termination's quick-connect feature, which allows for fast, secure, and reliable installations and maintenance. In bypass systems, where time and efficiency are critical, this feature reduces the time needed to establish electrical connections, making the termination ideal for emergency setups. Moreover, it’s adaptable to both existing and new systems, offering seamless compatibility with air-insulated equipment and overhead line connections.

Additionally, the waterproof and anti-tracking properties of the termination ensure it can withstand heavy rainfall, humidity, and environmental contaminants, making it a top choice for outdoor use. The product also provides excellent resistance to electrical tracking, which occurs when there is a build-up of electrical discharge across a surface, potentially causing short circuits or fires. This ensures that your system remains safe and fully operational, even under challenging environmental conditions.

Frequently Asked Questions (FAQ)

Q: What makes this termination different from other 10kV products?

A: The 10kV Prefabricated Outdoor Termination is designed with EPDM rubber for superior corrosion resistance, hydrophobic properties, and electrical performance, making it ideal for outdoor use in harsh environments.

Q: Can the termination handle extreme weather conditions?

A: Yes, the EPDM material ensures that the termination can withstand exposure to extreme temperatures, humidity, UV light, and ozone, making it perfect for outdoor installations.

Q: Is the termination easy to install?

A: The quick-connect feature simplifies installation, reducing the need for special tools and allowing for fast, secure connections in bypass systems or emergency setups.

Q: How do I ensure the termination remains waterproof over time?

A: The termination’s design incorporates waterproof EPDM rubber, which maintains its hydrophobic properties, ensuring reliable performance even in high-moisture conditions.
