DJL07-19 Modular Connector


Contact Us Form

Detail

Why ANEN

Application Scenario

Solution

FAQ

Model	DJL07-19	Rated current (Amperes)	16#...20A 22#...3A
Rated voltage (Volts)	6#...550VA 22#...333V	Insulation Resistance	5000MΩ
Vibration	10Hz~2000Hz,147m/s²	Mechanical life	1000 times
Operating Temperature Range	-55℃~+125℃	Relative humidity	90%~95%

Product Overview

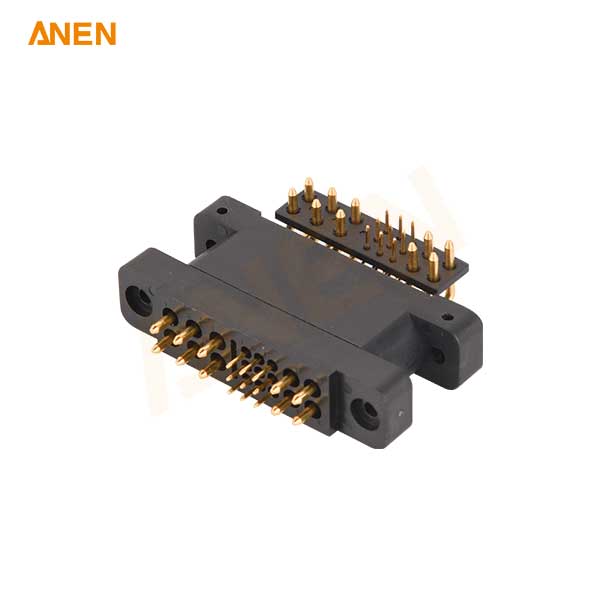

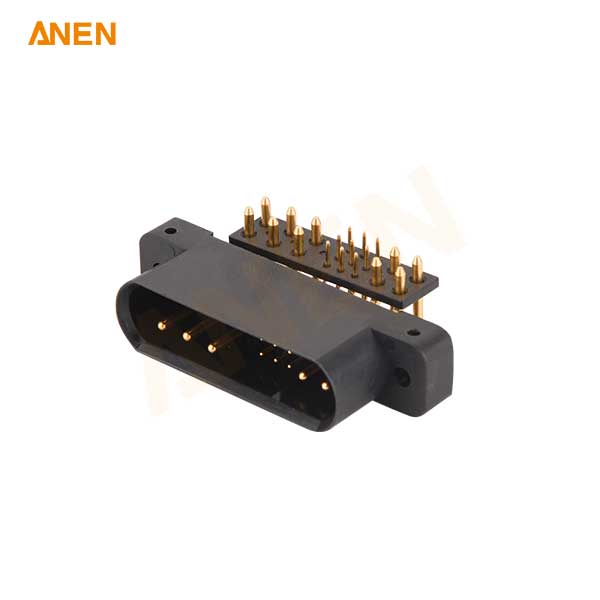

The DJL07-19 Industrial Modular Connector delivers reliable power connections for demanding applications. Designed as a versatile modular connector, it ensures precise mating and secure engagement for both PCB and cable terminations. With removable socket contacts and two contact sizes (#16 and #22), this connector adapts seamlessly to various industrial modular power supply requirements, offering long-lasting performance for UPS power supply, automotive electronics inspection, and other critical operations.

Detailed Description

The DJL07-19 is engineered to combine precision, durability, and flexibility in a single industrial modular connector solution.

Materials & Construction:

High-quality conductive metals with low contact resistance (#16: 3mΩ, #22: 12mΩ)

Robust insulating materials rated for up to 550V (#16) and 333V (#22)

Spherical guide tips on plug pins with a convex insulating keying feature prevent mismating

Core Features:

Multi-point guiding system ensures secure plug-to-socket alignment

Removable socket contacts allow easy maintenance and replacement

Mechanical life of 1,000 mating cycles guarantees reliability

Withstands vibration (10Hz–2000Hz) and impact (490 m/s²) without interruption

Operating temperature range: -55°C to +125°C

Relative humidity tolerance: 90–95%

Customization Options:

Select contact positions to remain empty or redesign insertion sequences for specific modular connector solutions

Termination options: soldering directly to PCB or crimping onto cables

Fully interchangeable with equivalent DJL modular connectors from other manufacturers

This design ensures compatibility with a wide range of industrial modular power supply systems while maintaining performance across Power Supply Connector applications.

Technical Specifications

Parameter	#16 Contacts	#22 Contacts
Rated Current	20A	3A
Average Contact Resistance	3 mΩ	12 mΩ
Rated Voltage	550V	333V
Withstanding Voltage	1500V	≥1000V
Insulation Resistance	5000MΩ	5000MΩ
Vibration	10Hz–2000Hz, 147 m/s²	10Hz–2000Hz, 147 m/s²
Impact	Acceleration 490 m/s², Interruption ≤1μs	Acceleration 490 m/s², Interruption ≤1μs
Mechanical Life	1000 cycles	1000 cycles
Operating Temperature	-55°C to +125°C	-55°C to +125°C
Relative Humidity	90–95%	90–95%

Why Choose ANEN

Direct-from-Factory Sourcing: No MOQ, helping reduce inventory costs and lead time

Custom Design Expertise: Modify modular connectors according to your project requirements

Quality Assurance & Certifications: Rigorous testing ensures reliability and compliance with industrial standards

Comprehensive Support: Pre-sale consultation and post-sale technical assistance for all DJL modular connector applications

Global Accessibility: Reach out directly to discuss plug, PCB, or modular power supply solutions

Application Scenarios

The DJL07-19 is widely used in industries where modular connectors ensure dependable power transmission:

Industrial Automation: Machinery requiring precise modular connector solutions for power and control circuits

Power Supply Systems: UPS power supply and modular power supply applications

Automotive Electronics: Inspection systems and testing equipment needing reliable high-current connections

Energy & Utilities: Secure connections for high-voltage, vibration-prone environments

Solutions & Unique Selling Points

Precision Engineering: Multi-point guiding ensures accurate plug-to-socket alignment every time

Durability & Safety: High insulation resistance and withstanding voltage up to 1,500V for industrial modular connector applications

Versatile Connectivity: Compatible with various modular connector solutions and derivative designs

Custom Manufacturing: Tailored to specific layouts, contact arrangements, and termination preferences

Seamless Integration: Ideal for Power Supply Connector systems and Industrial Modular Power Supply Connector setups

Frequently Asked Questions (FAQ)

Q1: Are DJL modular connectors compatible with other brands?

Yes, the DJL07-19 is fully interchangeable with equivalent industrial modular connector products.

Q2: Can the connector handle high-current applications?

Yes. Rated currents range from 3A (#22) to 20A (#16), making it suitable for Power Supply Connector and Industrial Modular Power Supply Connector needs.

Q3: Is customization available?

Absolutely. Clients can define empty contact positions, insertion sequences, and select soldering or crimp termination for PCB or cable applications.

Q4: Which industries commonly use DJL connectors?

Common applications include UPS power supply, modular power supply, automotive electronics inspection, and industrial automation.

Q5: How long is the connector’s mechanical life?

The DJL07-19 is rated for 1,000 mating cycles, ensuring long-term durability and reliability.
