Product Description

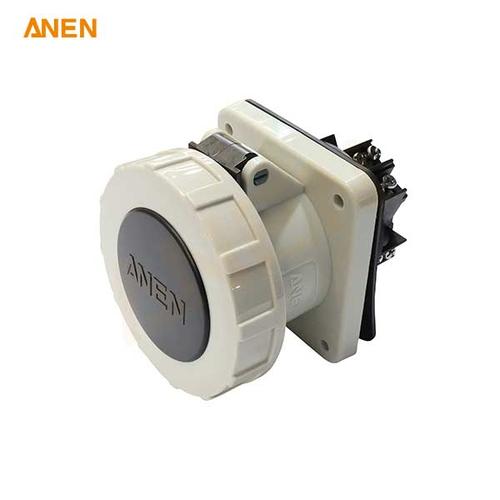

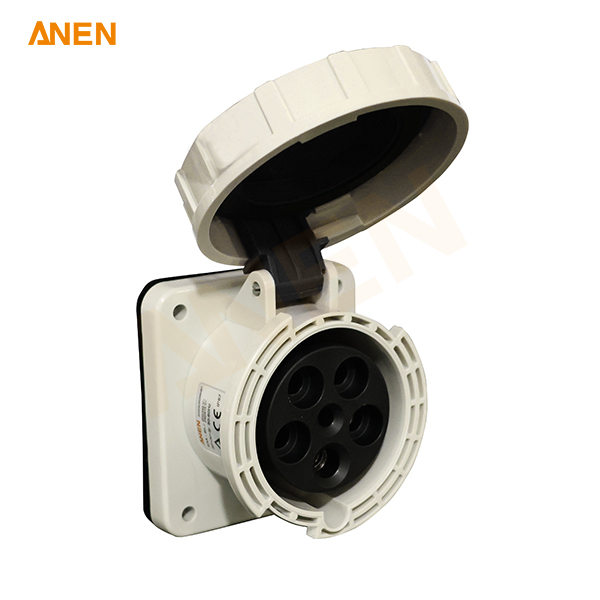

The 63A 5P Panel-Mount Receptacle is a high-performance industrial connector designed for safe and reliable power transmission in demanding industrial environments. Manufactured by ANEN, a professional industrial connector manufacturer in China, this receptacle complies with IEC60309 standards and supports 3P+N+PE five-pole configurations, making it suitable for three-phase power distribution applications.
Cross-compatible with HBL560R7W and ME560R7W，designed with a 63A rated current, 277/480V-288/500V rated voltage, and IP67 waterproof protection after connection, the 560R6W Panel-Mount Receptacle provides excellent electrical performance, mechanical durability, and environmental resistance. It is widely used in industrial power systems, temporary power distribution, renewable energy systems, and advanced data center power solutions.
As a reliable factory source, ANEN provides customized industrial connectors, including OEM/ODM services, to meet different application requirements for power distribution equipment, data center connectors, and high-current connection systems.
Detailed Description
Reliable Power Connection for Industrial Applications
The 63A 5P Panel-Mount Receptacle is engineered to provide a secure and efficient connection between power sources and electrical equipment. With a 3P+N+PE pole configuration, the connector supports three-phase power transmission while providing a dedicated protective earth connection for enhanced safety.
The product is suitable for applications requiring stable power delivery, including:
Industrial machinery power supply
Factory automation equipment
Mobile power distribution systems
Construction site electrical systems
Data center uninterruptible power infrastructure
High-density power applications in an AI data center
The 560R7W Panel-Mount Receptacle provides a standardized connection interface, helping engineers simplify installation, maintenance, and equipment upgrades.
Premium Materials for Long-Term Durability
ANEN uses carefully selected materials to ensure reliable performance under harsh working conditions.
High-Conductivity Contact System
The contacts are manufactured from copper alloy with nickel plating, providing:
Excellent electrical conductivity
Low contact resistance
Improved corrosion resistance
Longer service life during repeated connections
The nickel-plated copper alloy contacts maintain stable current transmission even in industrial environments with moisture, dust, or temperature fluctuations.
Durable Housing Structure
The rugged housing is designed to withstand mechanical stress, vibration, and outdoor operating conditions. Combined with the IP67 waterproof rating after connection, the receptacle provides reliable protection against water and dust intrusion.
This makes the connector an ideal choice for demanding cee connectors applications where safety and durability are critical.
Key Features of 63A 5P Panel-Mount Receptacle
1. High Current Capacity and Stable Performance
With a rated current of 63A and voltage range of 277/480V-288/500V, this industrial connector supports efficient three-phase power distribution.
The optimized contact design reduces energy loss and helps maintain stable operation for:
2. IP67 Waterproof Protection
The connector achieves IP67 waterproof performance after connection, allowing reliable operation in environments exposed to:
Water spray
Dust
Outdoor conditions
Industrial contaminants
Therefore, the Panel-Mount Receptacle is suitable for both indoor and outdoor installations where dependable power connection is required.
3. Secure Screw Crimping Termination
The termination method uses screw crimping, supporting wire sizes from 6-25mm².
Advantages include:
Strong mechanical connection
Stable electrical contact
Easy installation and maintenance
Compatibility with various industrial cable assemblies
This design is especially beneficial for large-current applications requiring safe and repeatable installation.
4. Wide Operating Temperature Range
The connector operates reliably from -25°C to +85°C, allowing stable performance in challenging environments.
Whether installed in factories, outdoor power systems, or high-load data center power whips, the receptacle maintains dependable electrical performance.
