208V 60A C39/C13 30-Port HPC Smart PDU

Product Description

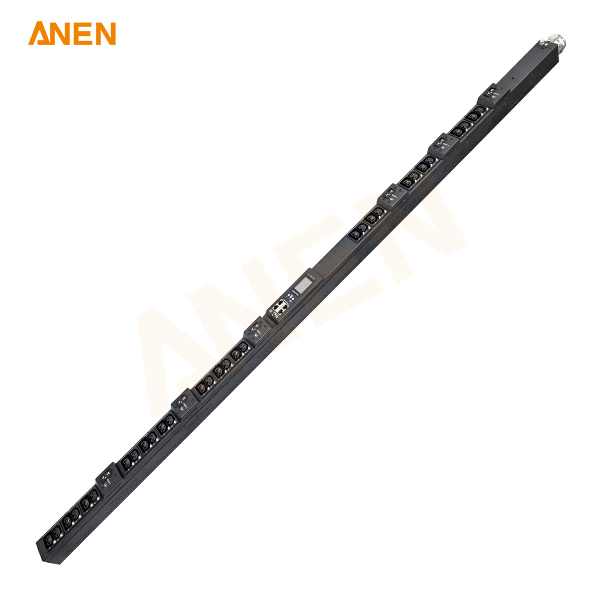

The ANEN 208V 60A 30-Port C13/C39 Smart PDU delivers reliable, intelligent power distribution for high-density AI data center environments. Designed for demanding server and computing applications, this 208V PDU combines 30 locking outlets, individual outlet monitoring, remote switching, and real-time electrical measurements in one integrated unit.

With 15 C13 outlets and 15 self-locking C39 outlets, this smart PDU supports a wide range of IT equipment while helping operators manage power more efficiently. Its three-phase design, color-coded outlets, and individual outlet control simplify installation and daily operations.

For data center operators, HPC facility managers, and system integrators, this AI data center PDU provides the visibility and control needed to support high-density computing, improve power management, and simplify infrastructure maintenance.

Detailed Description

High-Capacity Three-Phase Power Distribution

Operating at 208VAC with a rated input current of 3 × 60A, this 3-phase PDU provides dependable power distribution for demanding computing environments. Its 30-outlet configuration supports multiple servers and networking devices within a single rack, helping operators organize power connections in high-density installations.

Six 20A double-pole circuit breakers with UL489 ratings and 10kA interrupting capacity provide branch-circuit protection. This configuration supports organized power distribution while helping facility teams manage electrical loads.

42 Locking Outlets for Flexible Equipment Connections

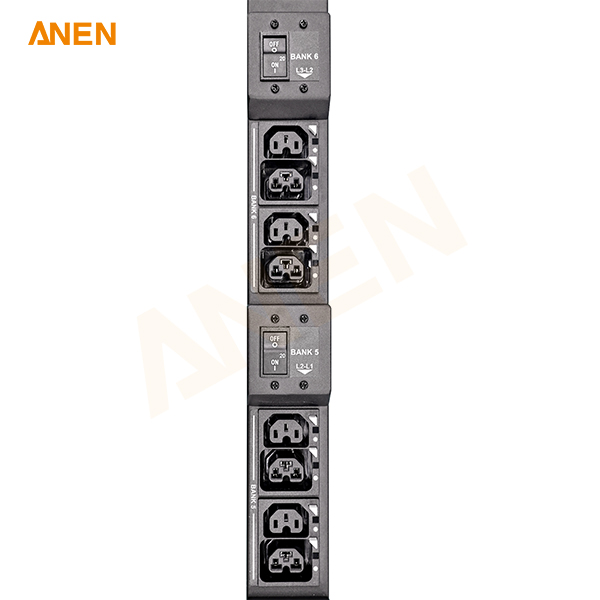

The PDU includes 15 C13 outlets and 15 self-locking C39 outlets. The C39 sockets accept compatible C13, C15, C19, and C21 plugs, allowing one PDU to support different equipment connection requirements.

Outlets follow an alternating phase sequence and use three colors for easy identification: dark gray for Phase A, light gray for Phase B, and white for Phase C. This arrangement helps technicians identify phase assignments during installation, inspection, and maintenance.

Intelligent Monitoring and Remote Switching

Beyond basic power distribution, this power distribution unit for data centers provides electrical measurements at both the PDU and individual outlet levels.

At the PDU level, operators can monitor input current, voltage, power, and energy consumption in kWh. Outlet-level monitoring provides the same measurements for each individual outlet, helping teams identify power consumption patterns, investigate abnormal loads, and allocate energy costs more accurately.

Individual outlet ON/OFF control allows authorized personnel to manage connected equipment remotely. This function can simplify equipment maintenance and support controlled power cycling without requiring technicians to access every rack physically.

Network Connectivity and Local Control

The integrated communication interfaces include Ethernet and RS485, with support for HTTP, SNMP, SSH, and Modbus protocols. These options facilitate integration with compatible monitoring platforms and data center infrastructure management systems.

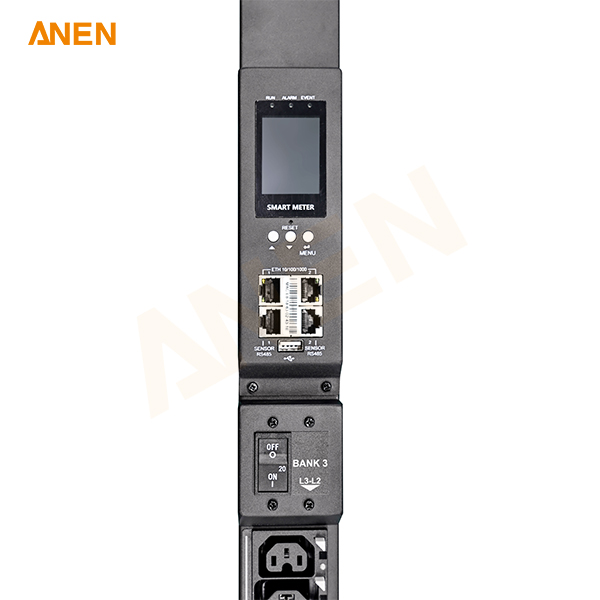

A smart LCD display provides menu-based navigation and local monitoring. Technicians can review electrical information directly at the rack, while remote teams use network connectivity to monitor power conditions and control individual outlets.

Durable Construction and Customization

The PDU uses a metal enclosure with a RAL9005 black powder-coated finish, providing a practical protective exterior for rack installation. Custom colors are available to meet project branding or equipment identification requirements.

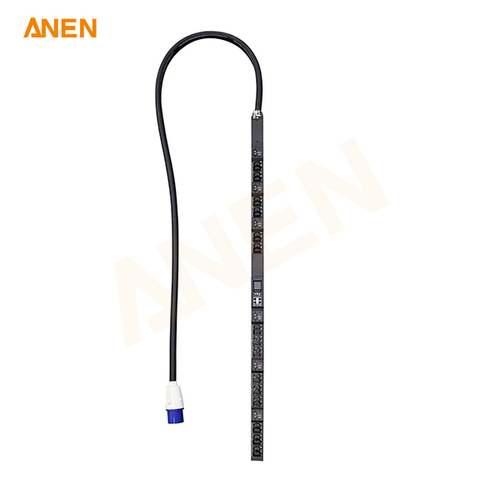

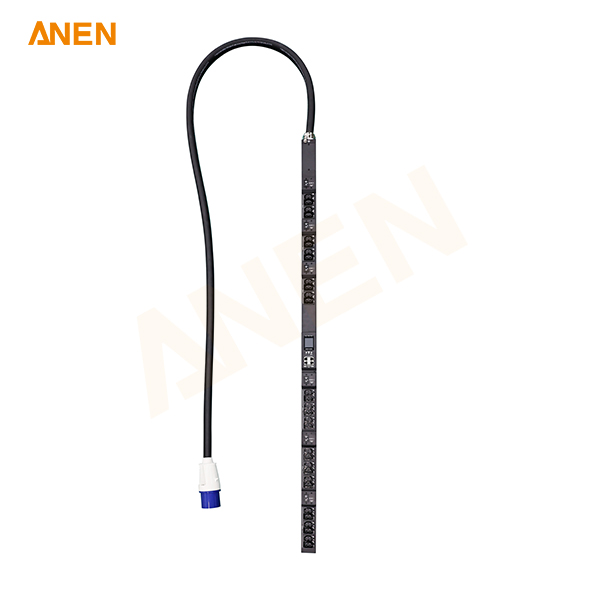

Its UL-certified 4C/6AWG, 10-foot input power cord terminates in a 208V/60A, 9H-position IP67 plug. The unit supports an operating ambient temperature of 0°C to 60°C, making it suitable for appropriately designed data center environments.

As an experienced custom PDU manufacturer, ANEN can discuss outlet layouts, cable lengths, enclosure finishes, monitoring requirements, and other project-specific details to develop a configuration that aligns with your equipment and installation needs.

Why Choose ANEN?

Direct-from-Factory Manufacturing

Work directly with ANEN's manufacturing team for technical communication, product customization, and project coordination. Factory-direct access helps streamline communication from initial specifications to production.

OEM and ODM Services

As an experienced PDU manufacturer, ANEN provides OEM and ODM services for distributors, data center integrators, and equipment manufacturers. We can discuss customized outlet configurations, cable assemblies, enclosure finishes, monitoring functions, and private-label requirements.

Quality Assurance and Certification Support

ANEN applies quality management processes throughout manufacturing and product inspection. UL and ETL certification options depend on the specific product model and configuration; customers should confirm the applicable certifications for the proposed unit before ordering.

Complete Power Distribution Solutions

ANEN offers more than individual PDUs. Our portfolio includes industrial connectors, plugs, cables, cable assemblies, power distribution cabinets, racks, and related power distribution equipment. This broader product range helps customers coordinate components across their power infrastructure.

Comprehensive After-Sales Support

Our team assists customers with technical clarification, product selection, customization coordination, and troubleshooting. We aim to establish long-term partnerships by supporting customers throughout the project lifecycle.

Application Scenarios

This AI data center PDU suits a variety of high-density computing and industrial IT applications.

• AI data centers: Distribute power to AI servers, accelerators, and associated networking equipment while monitoring individual outlet consumption.

• HPC facilities: Support high-performance computing clusters with detailed electrical measurements and remote outlet control.

• Enterprise data centers: Improve rack-level visibility and simplify routine power management across server infrastructure.

• Cloud and colocation facilities: Help operators track energy consumption and manage connected equipment across shared infrastructure.

• Data center integration projects: Provide flexible outlet options for different server configurations and rack power requirements.

Whether supporting a new facility or upgrading existing racks, this PDU helps align rack-level power distribution with evolving data center power requirements.

Solutions: Smarter Power Management for AI Infrastructure

As computing density increases, effective data center power distribution requires more than sufficient electrical capacity. Operators also need accurate measurements, clear phase identification, flexible connectivity, and convenient equipment control.

The ANEN 208V 60A Smart PDU addresses these needs through outlet-level metering, remote switching, and multi-protocol communication. These capabilities help facility teams identify heavily loaded outlets, review energy consumption, and manage connected devices more efficiently.

ANEN also supports integrated data center power solutions beyond the PDU itself. Our product range includes data center power cables, data center power whips, industrial plugs and connectors, power distribution cabinets, and racks.

By coordinating these components, customers can simplify sourcing, improve compatibility between system components, and build a more cohesive data center power system. Our engineering team can also assist with data center power design, cable selection, and product configuration according to project specifications.
