Product Overview

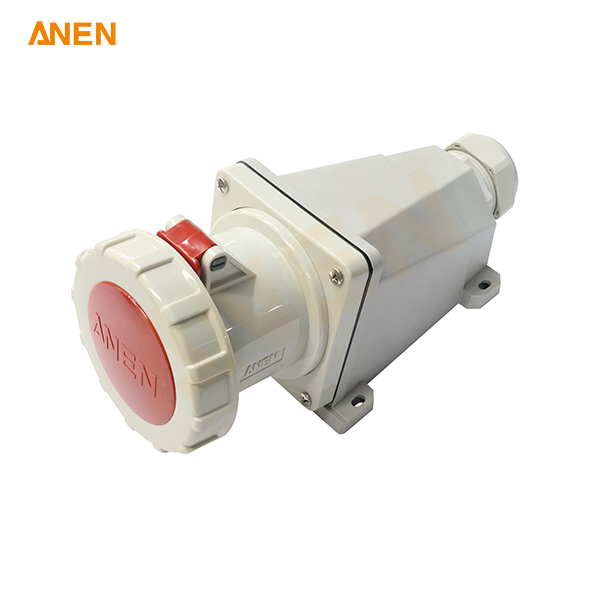

The 125A 4P Panel-Mount Receptacle with Junction Box is a high-performance industrial connector designed for reliable three-phase power distribution in demanding environments. Built according to IEC60309 standards, this heavy-duty receptacle integrates a secure junction box structure, providing a convenient and safe solution for high-current power connections.
Designed for industrial power systems, data center power solutions, and high-density electrical applications, this receptacle supports 3P+PE configuration, rated at 125A and 200/345-240/415V. Its robust construction, waterproof IP67 protection after connection, and durable copper alloy contacts ensure stable performance even in harsh operating conditions.
As a professional manufacturer of industrial connectors and connectors for critical power applications, ANEN provides reliable solutions for customers requiring safe, efficient, and scalable power distribution systems.
Product Features and Advantages
The 125A 4P Panel-Mount Receptacle with Junction Box combines high-current capability, mechanical durability, and environmental protection to meet modern power connection requirements.
High-Current Power Transmission
Rated at 125A, this receptacle is engineered for heavy-duty power distribution where stable current flow is essential. The 3P+PE five-pole design supports three-phase power systems with neutral and protective earth connections, improving electrical safety and operational reliability.
The copper alloy contact system provides excellent conductivity and reduced contact resistance, helping maintain efficient power transmission during continuous operation.
Reliable Waterproof Protection
For outdoor and industrial environments, protection against dust and moisture is critical. This waterproof connector achieves IP67 protection after connection, preventing water and dust ingress during operation.
The sealed structure makes it suitable for applications where electrical equipment is exposed to humidity, dust, vibration, or changing environmental conditions.
Secure Junction Box Integration

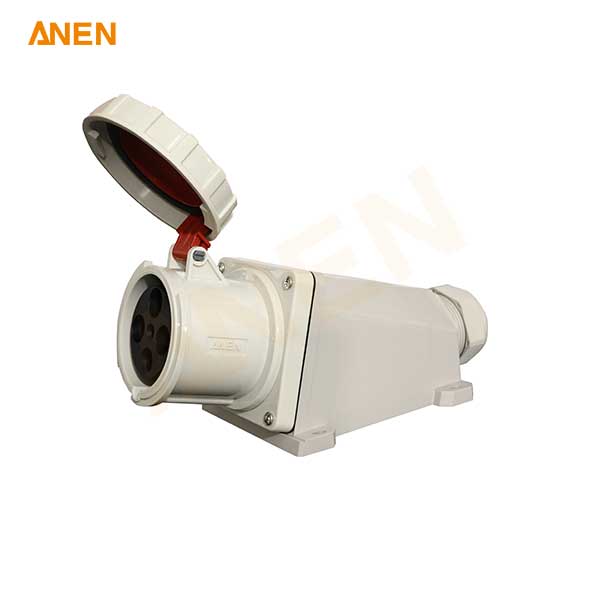

The integrated junction box simplifies installation by providing a protected connection area for cable termination. Compared with traditional panel-mounted solutions, the junction box design improves wiring organization, reduces installation complexity, and enhances overall system safety.
This design is especially valuable for projects requiring flexible layouts, including data center connectors, temporary power systems, and industrial power distribution networks.
Detailed Product Description
Premium Materials and Durable Construction
The 125A 4P Panel-Mount Receptacle with Junction Box is manufactured using carefully selected materials to ensure long service life and reliable electrical performance.
Copper Alloy Contacts
The internal contacts are made from high-quality copper alloy, offering:
Excellent electrical conductivity
Low contact resistance
Strong corrosion resistance
Stable performance during frequent mating cycles
This ensures dependable power transmission for critical applications such as data center uninterruptible power systems and industrial equipment.
Robust Housing Material
The connector housing is designed to withstand industrial environments, offering:
Strong mechanical protection
Resistance against impact and wear
Long-term stability under temperature variations
The operating temperature range of -25°C to +85°C allows the receptacle to perform reliably in both cold and high-temperature environments.
Core Functions and Unique Features
Safe and Efficient Power Connection

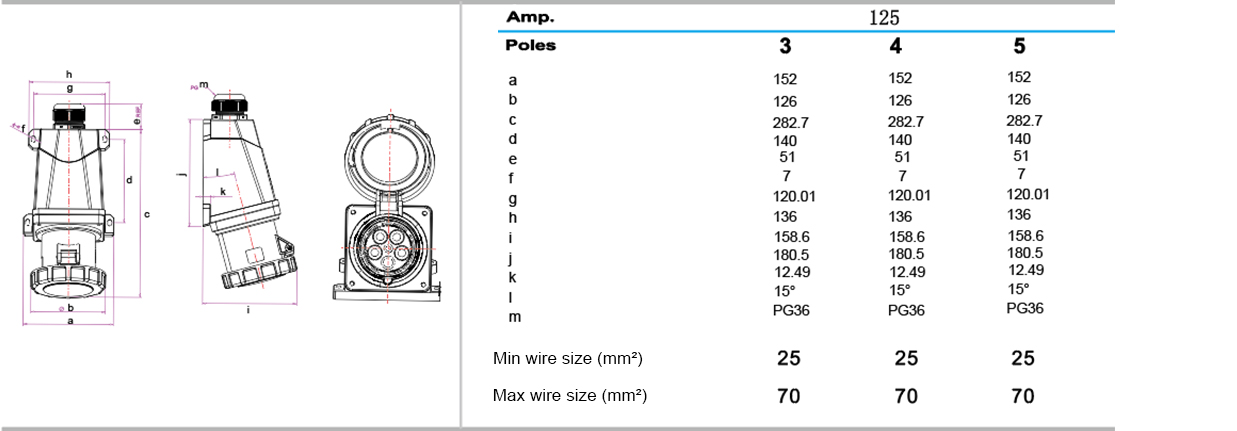

The receptacle provides a secure interface between power sources and electrical equipment. The screw crimping termination method ensures a firm cable connection while supporting wire sizes from 25-70mm².
This makes the product suitable for large power distribution systems where connection reliability is a priority.
IEC60309 Standard Compatibility
Designed according to IEC60309 requirements, the receptacle offers compatibility with international industrial power systems. It is widely used alongside cee connectors, plugs, and cable assemblies in global industrial applications.
High Protection Level for Harsh Environments
With IP67 protection after connection, this receptacle is suitable for applications requiring:
Customization Options
As a professional industrial connector manufacturer, ANEN supports customized solutions based on customer project requirements.
Available customization services include:
OEM/ODM connector development
Customized cable assemblies
Customized labeling and packaging
Connector structure optimization
Special application design support
Integration with customer-specific power distribution systems
Whether customers need customized data center power whips, industrial cable solutions, or specialized power connection systems, ANEN provides engineering support from concept to production.
