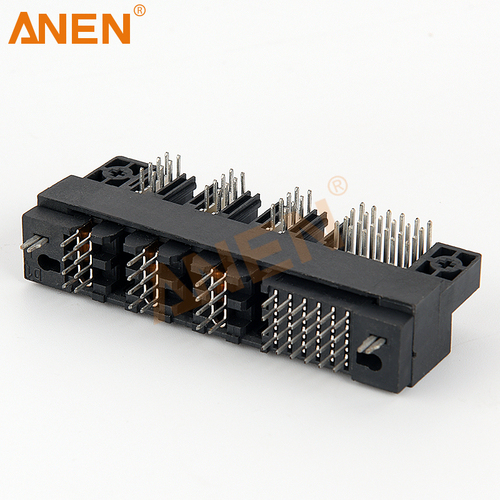

PCB 14+24 Pin Module Power Connector

PCB Module Connector - High-Performance Power Connector for PCB Applications

PCB Module Connector – Reliable Power Connections for Every Need

The PCB Module Connector series is designed to deliver reliable power connections for Printed Circuit Boards (PCBs) in a wide range of applications. Whether you're working with UPS power interfaces, servers, or telecommunications equipment, these connectors are built to ensure low contact resistance, high current-carrying capacity, and superior dynamic reliability. With features like low insertion force, anti-mismating protection, and customizable terminal options, these connectors are the ideal solution for power and signal delivery in your most demanding designs.

This connector series is a true game-changer when it comes to ease of integration and performance, making it the go-to solution for engineers who need both high electrical reliability and physical durability.

Key Features & Advantages:

• Low Contact Resistance: Essential for high-power applications, our connectors ensure minimal energy loss, improving the overall efficiency of your system.

• High Current-Carrying Capacity: Whether you're working with high-powered devices or sensitive electronics, the PBC module connector can handle high currents without compromising reliability.

• Low Insertion and Extraction Force: This design feature guarantees easy handling and secure connections with minimal wear and tear over time.

• Super Anti-Mismating Protection: The connector’s design prevents mismating, offering extra security during installation and preventing potential damage during operation.

• High Dynamic Contact Reliability: No matter the environment or usage conditions, the connector ensures consistent performance, reducing downtime and improving system longevity.

• Material Types and Connection Methods:The connectors are made from high-quality, durable materials that resist corrosion and wear. Depending on your needs, we offer options for Crown spring sockets, spring crown clip power connectors, and solderless crimping for easy assembly.

• Customizable Terminals: Whether you need more power terminals or signal terminals, the number and configuration of pins can be adjusted to meet your specific design needs.

• Locking Mechanisms: For added security, you can choose between locking plate soldering or screw-locking for the plug ends. These secure methods help ensure that the connectors remain firmly in place during operation.

• Connectivity Options:The solder plate type and solderless crimping sockets are available, offering more flexibility for assembly, depending on your production methods.

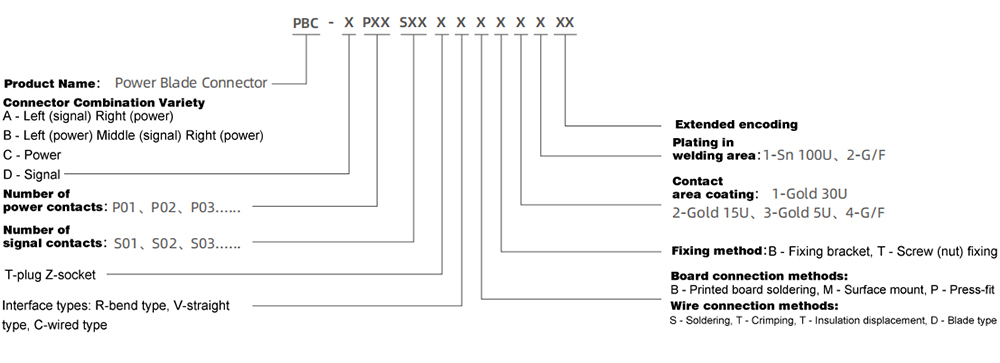

Model PBC coding principle

Frequently Asked Questions (FAQ)

Q1: What makes the PBC Module Connector different from other connectors?

A1: The PBC module connector stands out due to its low contact resistance, high current-carrying capacity, and customizable design options, making it perfect for both high-power and signal transmission applications.

Q2: Can I use the PBC Module Connector for both power and signal delivery?

A2: Yes, this connector is designed to handle both power and signal transmission, making it an ideal solution for various types of PCB applications, including UPS systems and data modules.

Q3: Is it compatible with different assembly methods?

A3: Yes, the connector is compatible with soldering, solderless crimping, and screw-locking methods, allowing you to choose the one that best fits your production process.

Q4: How do I place an order?

A4: Simply reach out to our sales team through the contact form or by phone. We offer no MOQ and OEM/ODM services to meet your specific needs.

Q5: What industries can benefit from the PBC Module Connector?

A5: Industries such as telecommunications, UPS systems, servers, and consumer electronics can benefit from the high-performance capabilities of the PBC module connector.
