The Advanced Buyer’s Guide to data center power solutions: Engineering Excellence

Welcome to the official ANEN technical blog. Our engineering team constantly fields inquiries from procurement specialists and facility managers around the globe. Buyers frequently request manufacturing quotes without supplying the necessary electrical parameters required for an accurate build. Providing basic information simply falls short when designing modern, high-capacity infrastructure.

Our R&D department thrives on exact specifications to construct incredibly safe, highly reliable hardware. Navigating the complex hardware procurement landscape requires a deep understanding of ongoing technological shifts. We desperately want to empower your team with the knowledge needed to make intelligent purchasing decisions. Let us dive deep into the critical design details every procurement engineer should fully grasp.

1. Shaping the Future of power distribution unit design

The digital landscape shifts with incredible speed on an almost daily basis. Global demand for seamless connectivity pushes legacy server racks far beyond their original thermal limits. Hardware creators must respond actively with highly innovative, resilient engineering strategies. Sticking to outdated power strips practically guarantees an eventual, catastrophic system failure.

The Rise of Granular Visibility

Facility operators now demand absolute operational visibility down to the individual server chassis level. Granular analytics empower administrators to detect rogue, power-hungry equipment long before main breakers trip. Software platforms collect this vital data to dynamically balance room cooling and ventilation. Smart infrastructure essentially pays for itself rapidly through massive, sustained energy savings.

Surviving the Harsh Edge

Telecommunications companies aggressively expand their micro-edge locations closer to end users. These remote sites rarely enjoy the luxury of having dedicated IT staff physically present. Equipment deployed in these harsh zones must survive extreme, completely uncontrolled temperature swings. Autonomous remote reboot capabilities have transitioned fully from optional upgrades to strict operational necessities.

High-density environments are also shifting rapidly toward advanced liquid cooling manifolds. Placing heavy fluid lines near high-voltage electrical equipment creates obvious safety concerns for technicians. Metal enclosures must feature exceptional physical seals to block moisture entirely. These critical protective designs keep your equipment running smoothly during completely unexpected plumbing leaks.

2. Assessing Your Core data center power requirements

Specifying the absolute correct architecture begins with a highly detailed conversation with our engineers. Please communicate your exact rated current upfront during the initial consultation. We routinely manufacture heavy-duty systems rated for 150A, 250A, and potentially even higher amperages. Knowing the baseline amperage firmly dictates the necessary internal copper busbar dimensions.

Managing High-Current Loads

Pushing massive current through inadequate internal wiring invites disastrous thermal events and electrical fires. Heavy industrial applications demand significantly thicker conductors compared to standard commercial office environments. Supplying accurate specifications prevents us from assembling components incapable of handling your daily load. Maintaining strict safety protocols remains our primary, unwavering objective.

Phase Configuration Matters

You must also decide confidently between single-phase and three-phase electrical delivery systems. Most standard commercial networks run comfortably on basic single-phase 220–240V utility lines. Massive enterprise racks usually require a highly robust 3-phase PDU operating at 346–415V. This fundamental choice drastically alters your facility's entire data center power design.

Finally, clearly outline the total power capacity required for each individual cabinet. Engineers calculate this crucial metric accurately using either Kilowatts (kW) or Kilovolt-amperes (kVA). Precise capacity numbers ensure our factory will never under-provision your mission-critical setup. Building adequate electrical headroom directly improves the long-term reliability of your deployment.

3. Engineering the Modern AI data center

Intense machine learning workloads draw electricity at truly unprecedented, staggering rates. Legacy cabinets simply cannot handle the extreme power consumption of modern graphical processing units. Supporting these advanced clusters requires a completely reimagined approach to structural electrical engineering. Procuring the right hardware means investing heavily in exceptional physical durability.

Meeting the Thermal Challenge

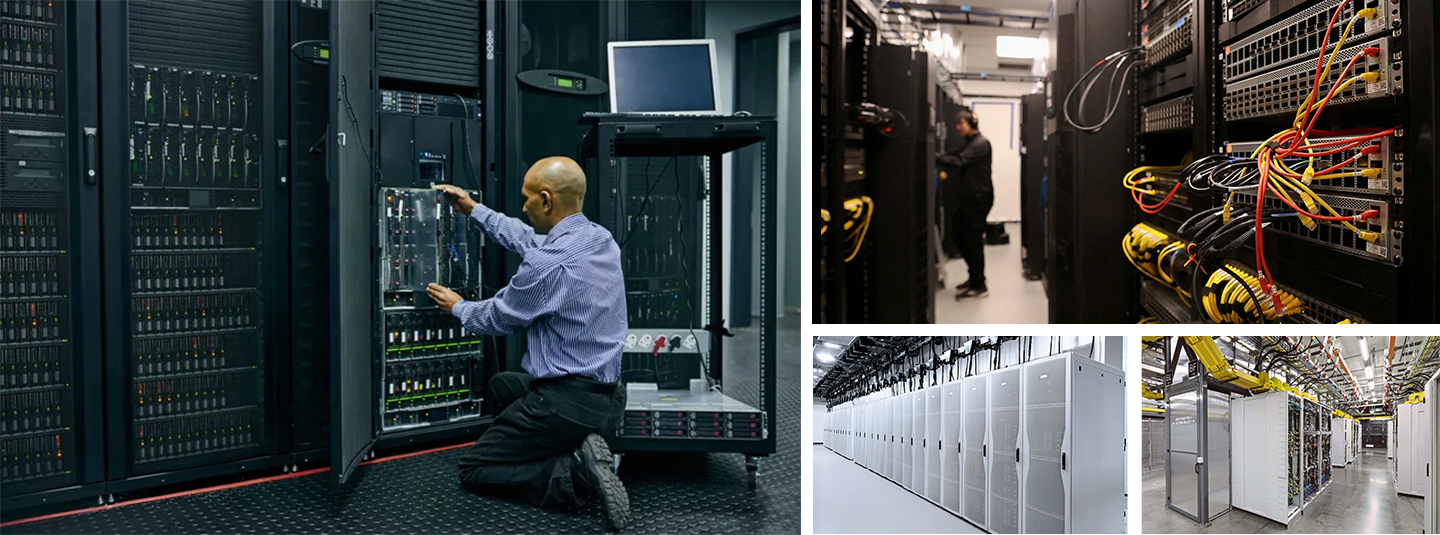

Modern high-density computing racks easily consume over thirty kilowatts of power individually. Managing such immense density demands flawless integration with your existing data center uninterruptible power systems. Battery backups must engage instantaneously the precise moment utility grids falter. Our testing labs rigorously verify that our hardware withstands these aggressive transfer shocks effortlessly.

Complex machine learning algorithms require perfectly clean, continuous voltage to function correctly. Even minor electrical sags can easily corrupt weeks of incredibly expensive computational training. Premium internal filtering components work continuously to eliminate harmful line noise entirely. Protecting your multimillion-dollar processing assets requires absolutely uncompromising electrical stability.

We recently engineered our flagship 125A C39 21-Port Smart PDU specifically for these intense environments. This advanced unit prominently utilizes our proprietary "One-Shot Molding" socket technology. Single-piece molding dramatically increases physical durability and electrical isolation within the chassis. Innovations like this set a completely new standard for high-performance computing infrastructure.

4. Outlet Configurations for a High-Density power distribution unit data center

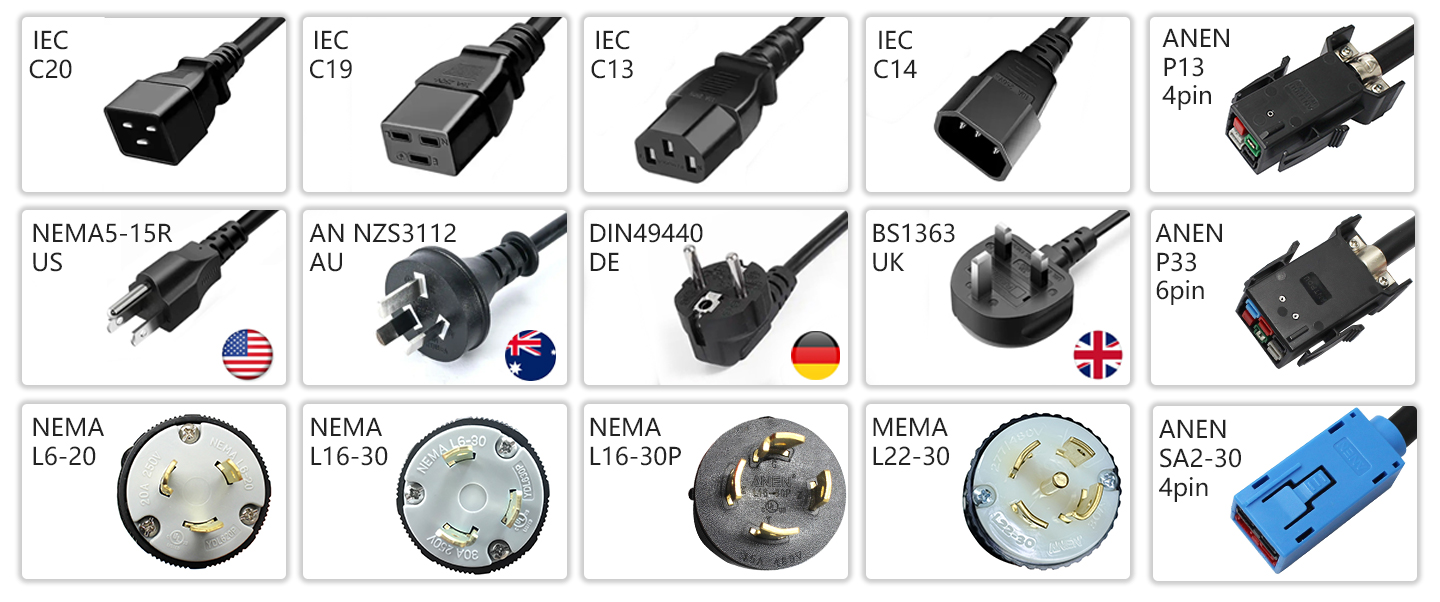

Choosing the correct receptacles heavily dictates the physical flexibility of your cabinets. Buyers frequently struggle to balance immediate hardware needs against future upgrade plans. Defining your precise plug count naturally serves as the foundational step of effective procurement. Careful architectural planning entirely eliminates the dangerous temptation to daisy-chain cheap extension cords.

Standard network switches typically connect seamlessly to a basic C13 PDU. These common outlets carry a highly reliable 10-ampere rating suitable for low-draw devices. Larger enterprise blade servers usually require the robust 16-ampere capacity provided by a C19 PDU. Blending these two standard receptacles creates a highly functional baseline for traditional racks.

The Power of Universal Connectivity

However, dynamic environments demand significantly more versatility from their core infrastructure. Our senior engineers strongly recommend migrating your facility toward the highly adaptable C39 universal receptacle. This brilliant outlet natively accepts C13, C15, C19, and C21 plugs without any bulky adapters. Installing C39 sockets essentially future-proofs your entire rack layout instantly.

Administrators can swap disparate server hardware instantly without replacing the underlying power strip. Beyond the physical outlets, buyers must thoughtfully map their internal circuit breaker logic. Does your strict risk model favor isolating single outlets, or grouping them together in threes? We happily customize these internal logic boards to match your specific redundancy policies perfectly.

5. Transitioning to a smart power distribution unit

Raw electrical capacity represents only half of the modern infrastructure equation. True operational efficiency stems directly from intelligent, real-time data collection and analysis. Basic hardware delivers electricity flawlessly but remains completely blind to actual consumption patterns. Upgrading to networked models immediately provides critical visibility into your daily operations.

Do you simply need basic power metering, or full outlet-level remote control? Remote switching allows administrators to forcefully reboot locked servers from thousands of miles away. Naturally, integrating these sophisticated network cards noticeably impacts the final unit price. Yet, avoiding just one emergency midnight service call usually justifies the initial investment entirely.

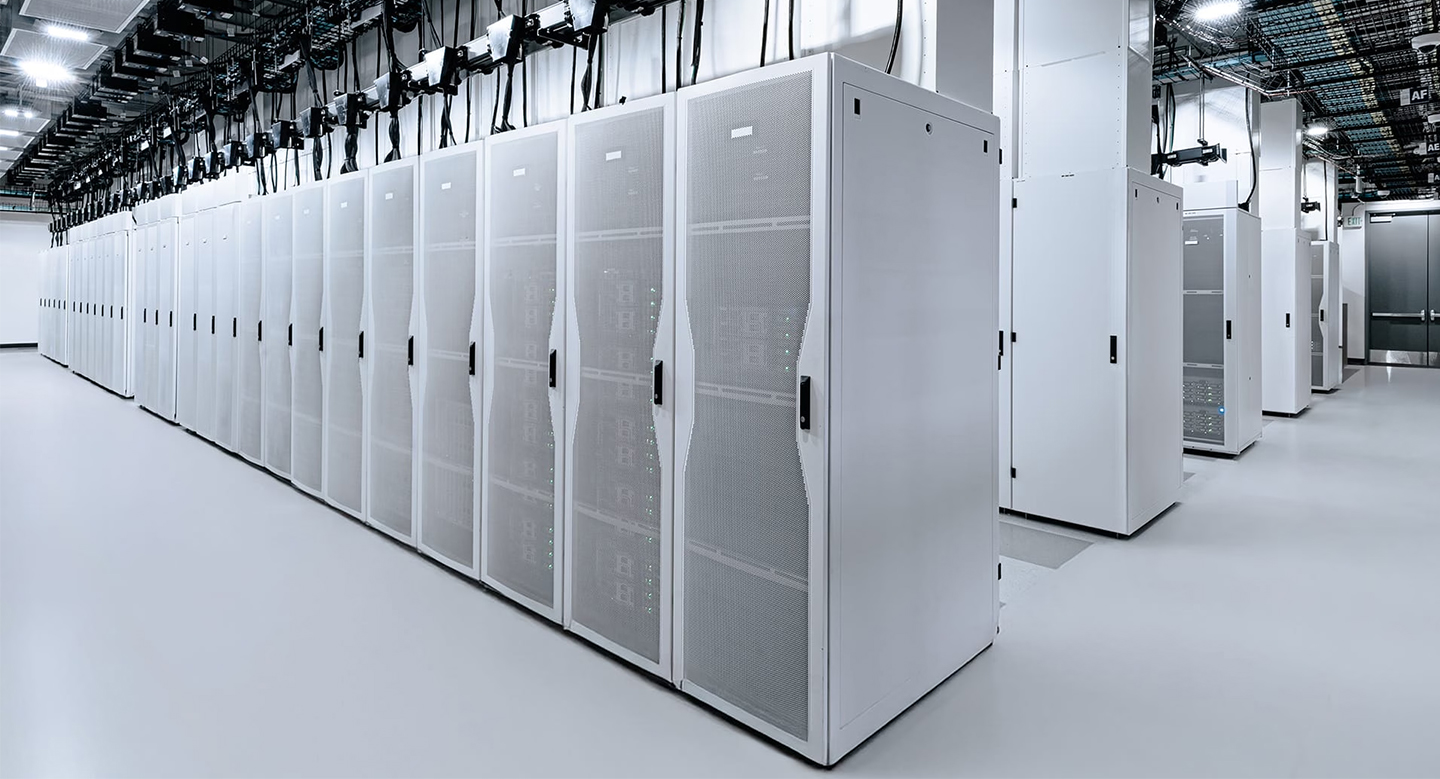

A cohesive data center power supply strategy also thoroughly addresses physical cabling constraints. Thick, tangled cords easily choke the vital exhaust pathways located behind your servers. Routing your data center power cables methodically is crucial for proper thermal management. We specifically design our sleek chassis profiles to minimize external wire clutter.

Linking your racks to the main electrical grid requires heavy-duty data center power whips. These thick armored connections must bend safely around complex architectural pillars. We cut custom whip lengths to perfectly match your exact overhead busway dimensions. Precision manufacturing ensures your complete data center power system operates flawlessly without messy slack.

6. Rugged Applications for a PDU power distribution unit

Physical deployments vary wildly across different commercial and heavy industrial sectors. Will your new hardware reside inside a pristine, climate-controlled server room? Or will the unit face the harsh, gritty realities of a dusty manufacturing plant? Understanding the final physical destination firmly dictates the necessary exterior materials and safety ratings.

Standard enterprise facilities heavily prioritize highly compact, vertical form factors. Real estate inside a crowded server cabinet remains an incredibly valuable commodity. Slender vertical models mount effortlessly in the tight rear corners of standard racks. This specific placement gives technicians plenty of unhindered room to swap heavy server trays.

Conversely, heavy industrial setups require rugged, heavily galvanized steel enclosures. Factory floors constantly expose delicate electronics to vibration, dust, and potential physical impacts. We apply specialized conformal coatings to our internal circuit boards to strictly prevent chemical corrosion. Communicating your exact environmental hazards allows us to build truly resilient gear.

We also excel at designing complex electrical solutions for massive industrial manufacturing applications. For instance, we routinely engineer robust DJL series industrial modular connectors for high-stress environments. We also produce PA45 waterproof connectors designed specifically to meet strict IP67 requirements. No matter the harsh environment, we deliver safe, reliable electricity flawlessly.

7. Refining Your Total data center power distribution unit Blueprint

Successful infrastructure upgrades require analyzing the entire electrical chain holistically. Procurement managers should look far beyond the rack to properly evaluate upstream switchgear. High-power distribution demands absolute flawless synergy between every single interconnected physical component. Our dedicated engineering team actively helps bridge the gap between simple racks and massive facility power.

Scaling Up for the Enterprise

We actively support enormous enterprise-scale projects demanding extreme electrical tolerances. Our advanced manufacturing capabilities extend to massive 2000A Switchgear Cabinets designed for total facility distribution. We also engineer highly specialized 630A High-Current Industrial Plugs for heavy machinery integrations. Partnering with a comprehensive B2B manufacturer centralizes your entire procurement strategy effectively.

Streamlining your official vendor list significantly reduces complex logistical headaches. Managing multiple disconnected suppliers often leads to frustrating timeline delays and weird compatibility issues. Sourcing everything from a single, vertically integrated factory guarantees complete component harmony. Your deployment timelines shrink drastically when one reliable partner handles the heavy lifting.

Furthermore, our rapid prototyping capabilities allow for extensive testing before mass production begins. We strongly encourage enterprise clients to thoroughly evaluate sample units within their own testing labs. This crucial hands-on verification process builds massive confidence before signing a bulk purchase order. We firmly believe that seeing the build quality firsthand eliminates all buyer hesitation.

8. Why ANEN is Your Premier data center power distribution Partner

Selecting the right manufacturing partner removes the intense anxiety from global hardware sourcing. As a premier B2B manufacturer based in China, ANEN delivers decades of engineering excellence. By eliminating middlemen entirely, we provide incredibly competitive factory-direct pricing to our clients. This drastically shortened supply chain also highly accelerates lead times for urgent project rollouts.

Unmatched OEM and ODM Capabilities

Our massive advanced production facilities welcome highly complex OEM and ODM requests daily. If your unique facility requires a completely custom electrical layout, we can absolutely build it. Our R&D team truly thrives on solving complex engineering puzzles that intimidate other suppliers. We transition rough napkin concepts into fully certified, production-ready prototypes with incredible speed.

Stringent quality assurance forms the absolute bedrock of our entire assembly process. Every single unit undergoes exhausting automated load testing before it ever leaves our factory floor. We secure comprehensive UL certifications to ensure full compliance with strict local building codes. You can confidently install our hardware globally without fearing costly, unexpected inspection failures.

Our unwavering dedication to your success continues long after the physical hardware arrives. We provide robust after-sales support to immediately assist your technicians during complex installations. True partnership means standing proudly behind every piece of equipment bearing our corporate name. We view your long-term operational stability as our absolute ultimate manufacturing achievement.

Let's Connect in Person

Building truly reliable infrastructure requires careful planning and a highly trusted manufacturing ally. We warmly invite you to experience our industry-leading engineering standards in person next week. If you are attending Data Center World in Washington, D.C., please make sure to visit us. Stop by Booth #669 between April 20 and April 23 to discuss your exact project needs.

Our executive team will be proudly showcasing our latest high-current components and smart distribution technologies. Seeing our proprietary One-Shot Molding and high-capacity switchgear up close truly highlights our dedication to quality. Let us help you carefully design the perfect electrical architecture for your next massive deployment. We look forward to engineering a safer, significantly more efficient future alongside your team.

Frequently Asked Questions

Q:What defines a truly intelligent electrical distribution strip?

A:Networked models do much more than simply pass electricity blindly to connected servers. They provide critical, real-time analytics regarding room temperature, cabinet humidity, and individual outlet consumption. Advanced units also permit off-site administrators to forcefully cycle power to frozen devices remotely.

Q:Why is the C39 receptacle gaining so much popularity?

A:The C39 outlet fundamentally solves the annoying problem of predicting future server plug types. It natively accepts four different standard plugs without ever requiring any dangerous, bulky adapters. This incredible physical versatility extends the usable lifespan of the entire power distribution unit data center significantly.

Q:How should I calculate the total power load for a new cabinet?

A:You must carefully calculate the absolute maximum wattage draw for every single piece of hardware. We always strongly advise adding a strict twenty percent safety margin to that final total. This critical electrical buffer safely absorbs unexpected power spikes during exceptionally heavy computational loads.

Q:Does ANEN provide custom input cables for unique facility layouts?

A:Absolutely. We routinely cut and firmly terminate input whips to your precise architectural measurements. Eliminating dangerous, excess coiled cable beneath your raised floor dramatically improves vital under-floor airflow. Precision cabling creates a much safer, significantly cleaner server room environment.

Q:What is the advantage of a hot-swappable network controller?

A:Intelligent strips rely entirely on integrated microcomputers to communicate seamlessly with your central dashboard. A hot-swappable design means you can physically replace a completely failed controller without cutting electricity. Your critical power distribution unit for data center servers remain perfectly online while a technician swaps the tiny management module.
