How to Select 415V and 480V IEC60309 Connectors for Industry

As industrial equipment, high-density computing, and AI data centers continue to demand higher power capacity, selecting the right industrial connector has become an important part of electrical system design.

For many applications, an IEC60309 connector provides a practical connection between a power source and equipment such as a PDU, distribution cabinet, machine, cooling system, or data center rack. However, choosing the right connector involves much more than checking the voltage printed on the product.

A suitable connector must match the system voltage, current, phase configuration, grounding arrangement, clock position, cable size, environmental conditions, and applicable electrical requirements.

This is particularly important when comparing 415V and 480V systems. Although both are common three-phase industrial voltages, they use different IEC 60309 configurations in many applications. IEC 60309-2 uses mechanical keying, including clock positions, to distinguish standardized configurations and reduce the risk of incompatible connections.

For applications ranging from industrial machinery to AI data center power distribution, understanding these differences can help engineers specify the correct Cord-Mount Plug, Cord-Mount Connector, CEE plugs, IEC Plug, and complete cable assembly.

415V and 480V IEC60309 industrial Connector Basics

IEC 60309 is widely used for industrial plugs, socket-outlets, couplers, and related connection systems. IEC 60309-2 defines dimensional compatibility requirements for pin and contact-tube accessories, while the wider IEC 60309 series addresses industrial electrical connection requirements. The current IEC 60309-2 edition is the 2021 edition, with a 2026 corrigendum published in August 2026.

In practical applications, the terms IEC Plug, industrial connector, CEE plug, and IEC60309 connector often appear together. They may describe different components within the same connection system, so engineers should confirm the exact product type before purchasing.

A Cord-Mount Plug attaches directly to a flexible power cable. A Cord-Mount Connector can serve as the mating connector at the equipment or cable end, depending on the system configuration.

The major advantage of this connection concept is standardization. Instead of designing a proprietary connector for every industrial machine or power distribution system, manufacturers can use standardized mechanical interfaces and electrical configurations.

This makes IEC60309 connectors useful in factories, construction equipment, temporary power systems, generators, distribution cabinets, data centers, and other demanding environments.

Why 415V and 480V Need Different Configurations

A common mistake is to assume that a red CEE plug automatically works with any high-voltage three-phase system.

It does not.

IEC 60309 configurations use different contact arrangements and clock positions to distinguish voltage and phase configurations. For example, 3P+N+E systems in the 200/346–240/415V range commonly use a 6h earth-contact position, while 277/480–288/500V systems commonly use 7h.

This mechanical differentiation helps prevent a connector intended for one electrical system from being connected to an incompatible system.

Therefore, a specification such as "red CEE plug, 125A" is incomplete. A professional specification should identify the voltage range, poles, current rating, clock position, frequency, and environmental protection.

415V IEC60309 Connector Selection for Industrial Applications

415V systems are widely encountered in industrial facilities and three-phase power distribution applications. When selecting an IEC60309 connector for a 415V system, the first step is to confirm the actual line-to-line and line-to-neutral voltage configuration.

For a typical three-phase 415V system with neutral, an appropriate configuration may use 3P+N+E, depending on the equipment requirements.

For equipment that only needs three-phase power and protective earth, a 3P+E configuration may be more appropriate.

The choice should always follow the equipment's electrical design rather than simply selecting the connector with the highest available number of contacts.

415V 3P+E Industrial Connector

A 3P+E configuration provides three phase contacts plus protective earth.

This arrangement is suitable for equipment such as:

• Three-phase motors

• Pumps

• Compressors

• Industrial machinery

• Some cooling systems

• Three-phase production equipment

If the equipment does not require a neutral conductor, adding a neutral contact may increase unnecessary complexity.

415V 3P+N+E Industrial Connector

A 3P+N+E configuration provides L1, L2, L3, neutral, and protective earth.

This configuration is particularly useful where a system contains both three-phase and line-to-neutral loads.

Examples include:

• Data center PDUs

• Distribution cabinets

• Industrial control systems

• Mixed-voltage equipment

• Power distribution systems with auxiliary circuits

For an AI data center, this configuration can be particularly useful when a high-capacity PDU receives three-phase power while downstream equipment also requires line-to-neutral circuits.

415V Clock Position

For standardized 415V three-phase applications, 6h is a common IEC 60309 clock position.

The clock position provides mechanical polarization and helps differentiate the connector from other voltage configurations. IEC 60309 references 200/346–240/415V configurations at 6h for both 3P+E and 3P+N+E arrangements.

When specifying a 415V Cord-Mount Plug, therefore, engineers should verify the clock position rather than relying on voltage and color alone.

480V IEC60309 Connector Selection for Industrial Applications

480V three-phase systems are particularly common in North American industrial facilities and data centers.

A typical 480V distribution system may use a 3P+E or 3P+N+E configuration depending on the equipment architecture.

For 480V three-phase systems with neutral, IEC 60309 commonly uses the 277/480–288/500V, 7h configuration. For 480V three-phase systems without neutral, the standardized 480–500V configuration also uses 7h.

This distinction is important when selecting plugs and connectors for international projects.

480V Industrial Connector Applications

A 480V IEC60309 connector can be used for applications such as:

• Industrial production machinery

• Motor-driven equipment

• Large cooling equipment

• Temporary power distribution

• Data center infrastructure

• Generator connections

• Power distribution cabinets

For equipment operating continuously at high load, the connector should also be evaluated together with the cable, overcurrent protection, termination method, and installation environment.

480V Data Center Applications

The growing demand for high-density computing has increased interest in higher-voltage distribution architectures.

For example, a 480V system can distribute three-phase power efficiently within a large data center. A rack-level PDU can then distribute power to IT equipment through suitable downstream outlets and power cables.

Commercial data-center PDU products already support 277/480V configurations and can incorporate IEC 60309 3P+N+E input options for IT, AI, and HPC environments.

This makes the 480V IEC60309 connector an important component in certain data center power solutions, especially where high-density loads require robust three-phase distribution.

IEC60309 Industrial Connector Current Rating and Cable Selection

Voltage is only one part of connector selection. Current rating is equally important.

Common industrial CEE plug and connector ratings include 16A, 32A, 63A, and 125A, with Series II equipment commonly using corresponding 20A, 30A, 60A, and 100A ratings. The IEC 60309-2 framework covers standardized industrial connection systems, while specific product ranges determine the available current and configuration combinations.

A connector should not simply be selected by matching the nominal equipment current.

Engineers should consider:

• Continuous operating current

• Peak current

• Duty cycle

• Ambient temperature

• Cable cross-section

• Installation method

• Protective device

• Connector temperature rise

• Required safety margin

For example, a 125A PDU input does not mean that every 125A connector and cable assembly will automatically suit the installation. The entire power path needs to support the intended load.

Matching Cable Size to the Cord-Mount Plug

The cable and Cord-Mount Plug form a single electrical and mechanical assembly.

The cable conductor must have an appropriate cross-sectional area, while the cable diameter must fit the connector's cable gland and strain-relief system.

A good connector specification should therefore include both electrical and mechanical cable information.

For example:

• 415V / 125A / 3P+N+E / 6h / IP67 / specified cable cross-section

• This is much more useful for a manufacturer than simply requesting a "125A CEE plug."

Waterproof IEC60309 Connectors for Industrial and Outdoor Environments

Environmental protection becomes increasingly important when an industrial connector operates outdoors, in manufacturing facilities, or around cooling and water systems.

A waterproof IEC60309 connector can provide protection against environmental exposure when the selected product has the appropriate IP rating and the complete connection is installed correctly.

IP67 is commonly considered for applications requiring protection against dust and temporary immersion. However, the connector rating should not be treated as a substitute for correct installation.

Where Waterproof CEE Plugs Are Useful

Water-resistant or waterproof CEE plugs and connectors can be considered for:

• Outdoor equipment

• Construction sites

• Portable generators

• Industrial cooling equipment

• Data center infrastructure

• Battery and energy systems

• Temporary power distribution

• Manufacturing environments

For data centers, environmental protection can matter around cooling infrastructure, service areas, and equipment where accidental exposure to moisture may occur.

A connector's IP rating should always be considered alongside cable glands, covers, receptacles, enclosure design, and installation practices.

CEE Plugs in Data Center Power Distribution

The data center is one of the most demanding environments for electrical distribution equipment.

Traditional server racks may consume relatively moderate amounts of power, but modern AI and HPC racks can create much higher power densities.

As rack power increases, the electrical infrastructure must support higher current, efficient distribution, monitoring, and reliable maintenance procedures.

This is where CEE plugs in data center applications can provide a standardized industrial connection between upstream power distribution and equipment.

CEE Plugs and PDU Systems

A PDU, or power distribution unit, distributes electrical power from an upstream source to multiple downstream loads.

A power distribution unit for data center applications may use an industrial connector as its input connection, allowing the PDU to connect to a distribution cabinet or other upstream electrical equipment.

Depending on the facility design, the connection may involve:

• 415V three-phase power

• 480V three-phase power

• 3P+N+E configuration

• 3P+E configuration

• 63A or 125A input

• IEC60309 connectors

• Preassembled cable whips

The exact specification depends on the PDU and facility electrical architecture.

Data Center Power Whips and Data Center Plugs

Data center power whips provide a practical way to connect power distribution equipment to racks, PDUs, busways, or other infrastructure.

A typical assembly may combine an industrial connector, flexible cable, strain relief, and a downstream connector or terminal.

For high-density installations, preassembled power whips can simplify deployment and reduce field termination work.

Data center plugs should be selected according to the voltage, current, pole configuration, connector interface, and rack power architecture.

This is particularly important for AI data center installations, where electrical loads can change significantly between conventional IT racks and high-density GPU or accelerator racks.

AI Data Center Power Solutions with 415V and 480V Connectors

The rise of AI computing has changed how engineers approach data center power distribution.

AI servers and accelerator systems can demand substantially more power than conventional enterprise IT equipment. As a result, data center operators increasingly evaluate higher-voltage distribution, higher-capacity PDUs, larger conductors, and more robust connectors.

For an AI data center, connector selection should begin with the complete power architecture.

The engineer should identify:

• Facility supply voltage

• PDU input voltage

• Rack voltage

• Required current

• Phase configuration

• Neutral requirements

• Grounding arrangement

• Connector type

• Cable size

• Environmental requirements

415V AI Data Center Power Distribution

A 415V three-phase system can provide an efficient distribution architecture for many international data centers.

A high-capacity PDU may receive 415V three-phase power through an industrial connector and distribute power to rack-level loads.

The connector must match the PDU input specification. A 3P+N+E configuration may be appropriate where neutral is required, while a 3P+E configuration can suit equipment designed without a neutral connection.

480V AI Data Center Power Distribution

480V distribution is also relevant to high-density data center infrastructure, particularly in North American facilities.

The 480V system may feed high-capacity PDUs that distribute power to AI and HPC racks.

The connector configuration should match the facility's electrical system. A 277/480V 3P+N+E IEC60309 configuration commonly uses the 7h clock position.

The objective is not simply to select the largest connector available. The complete system must provide appropriate capacity, protection, compatibility, and maintainability.

Cord-Mount Plug vs. Cord-Mount Connector for IEC Applications

The terms Cord-Mount Plug and Cord-Mount Connector are sometimes used interchangeably in product searches, but they can refer to different components.

A Cord-Mount Plug typically connects to a cable and inserts into a compatible socket-outlet or receptacle.

A Cord-Mount Connector can form the mating cable connection on the equipment or distribution side.

Understanding this distinction helps avoid procurement errors.

When to Use a Cord-Mount Plug

A Cord-Mount Plug is suitable when a flexible cable needs to terminate in a plug that connects to a fixed or panel-mounted receptacle.

Typical applications include:

• Portable industrial machinery

• Generators

• Data center power cables

• Distribution equipment

• Temporary power systems

When to Use a Cord-Mount Connector

A Cord-Mount Connector can be used when the cable terminates in the mating interface required by the equipment or distribution system.

For example, an industrial power assembly may use a cord-mounted plug at one end and a compatible connector or equipment inlet at the other.

The final configuration should follow the equipment manufacturer's interface specification.

How to Choose the Right IEC Plug for a Specific Application

A practical selection process can prevent most common specification mistakes.

Step 1: Confirm 415V or 480V

Start with the actual system voltage.

Do not rely on the country alone. Confirm the facility's electrical drawings and equipment nameplate.

Step 2: Determine the Phase Configuration

Decide whether the equipment requires:

• 3P+E

• 3P+N+E

• Another IEC 60309 configuration

The number of contacts directly affects connector selection.

Step 3: Check the Current

Identify the continuous and maximum expected current.

Then select the appropriate connector and cable combination.

Step 4: Confirm the Clock Position

For common three-phase configurations:

• 380–415V: typically 6h

• 480–500V: typically 7h

IEC 60309 uses these mechanical configurations to differentiate standardized voltage arrangements.

Step 5: Select the IP Rating

Determine whether the application requires standard indoor protection or higher environmental protection such as IP67.

Step 6: Confirm Cable Compatibility

Check conductor size, cable diameter, flexibility, temperature rating, and strain relief.

Step 7: Verify Certifications and Local Requirements

For international projects, review the required certifications and local electrical regulations.

The connector should also be compatible with the complete system's protective devices and installation requirements.

Common Mistakes When Selecting CEE Plugs and Industrial Connectors

Several selection errors appear repeatedly in industrial and data center projects.

Choosing by Color Alone

Red generally indicates higher-voltage industrial applications, but color does not provide enough information to identify the complete electrical configuration.

Always verify voltage, poles, frequency, current, and clock position.

Selecting Current Without Checking the Cable

A high-current connector cannot compensate for an undersized cable.

The connector, conductor, termination, and protection system must work together.

Ignoring Neutral Requirements

A 3P+E connector cannot replace a 3P+N+E connector when the equipment requires a neutral.

Confirm the equipment circuit before choosing the connector.

Using the Same Connector for 415V and 480V

Although both systems use three-phase power and may use red CEE plugs, their standardized configurations can differ.

For common IEC 60309 configurations, 415V uses 6h while 480V uses 7h.

Treating IP67 as the Only Environmental Requirement

Waterproof protection is only one part of environmental performance.

Engineers should also consider temperature, chemical exposure, mechanical impact, cable movement, UV exposure, installation orientation, and maintenance conditions.

Building Reliable Data Center Power Solutions with the Right Connector

A connector is only one component of a complete electrical system.

For a modern AI data center, reliable power distribution may involve transformers, switchgear, busways, PDUs, industrial connectors, power cables, rack PDUs, monitoring systems, and downstream server connections.

The connector needs to fit into this complete architecture.

For example, an ANEN data center power solution can combine industrial connectors, data center power whips, PDUs, high-current cables, and rack-level power distribution components.

This approach allows engineers to consider electrical performance and mechanical compatibility at the system level rather than treating each connector as an isolated component.

For high-density applications, details such as connector temperature rise, cable routing, phase balance, load monitoring, maintenance access, and connection security can become increasingly important.

A reliable power distribution unit for data center applications should therefore be specified together with its input connector and cable assembly.

FAQ: 415V, 480V and IEC60309 Connectors

Q:What is an IEC60309 connector?

A:An IEC60309 connector is an industrial electrical connection component designed according to the IEC 60309 series. The family includes plugs, socket-outlets, connectors, couplers, and appliance inlets for industrial applications.

Q:What is the difference between a 415V and 480V IEC Plug?

A:The main difference is the standardized electrical configuration. For common three-phase IEC 60309 arrangements, 380–415V configurations commonly use a 6h earth-contact position, while 480–500V configurations commonly use 7h.

Q:Can a 415V CEE plug be used for a 480V system?

A:You should not assume that it can. Check the connector's rated voltage, pole configuration, clock position, and the equipment manufacturer's requirements before making a connection.

Q:What does 6h mean on an industrial connector?

A:6h refers to the position of the protective-earth contact when the connector is viewed from the front. IEC 60309 uses clock positions to mechanically differentiate electrical configurations.

Q:What does 7h mean on a 480V CEE plug?

A:For common 480V three-phase IEC 60309 configurations, 7h identifies the standardized earth-contact position associated with the 480–500V range.

Q:Are IEC60309 connectors suitable for AI data centers?

A:They can be suitable for certain data center power distribution applications when their voltage, current, phase configuration, environmental rating, and certification requirements match the system.

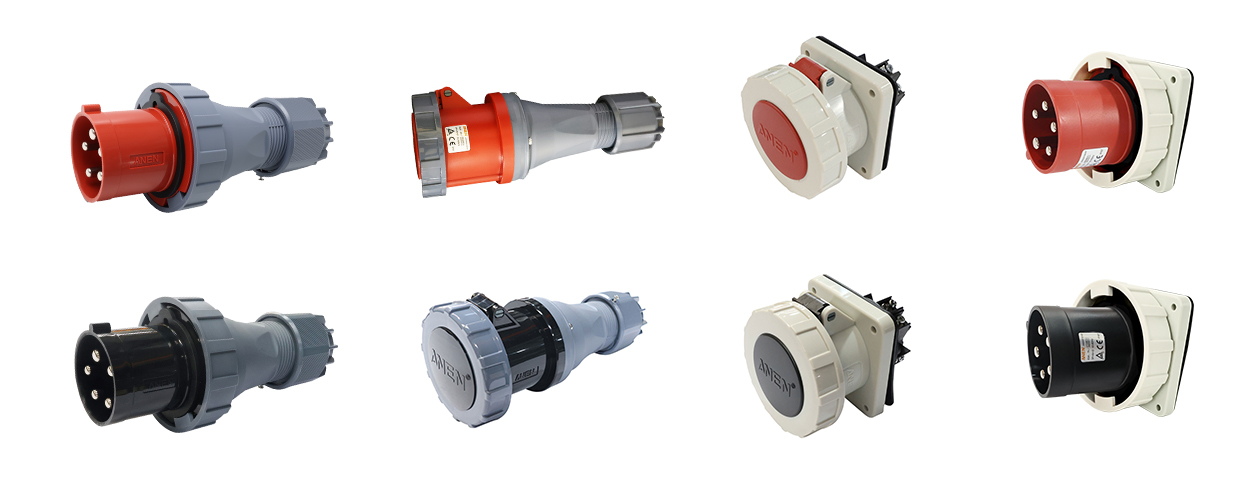

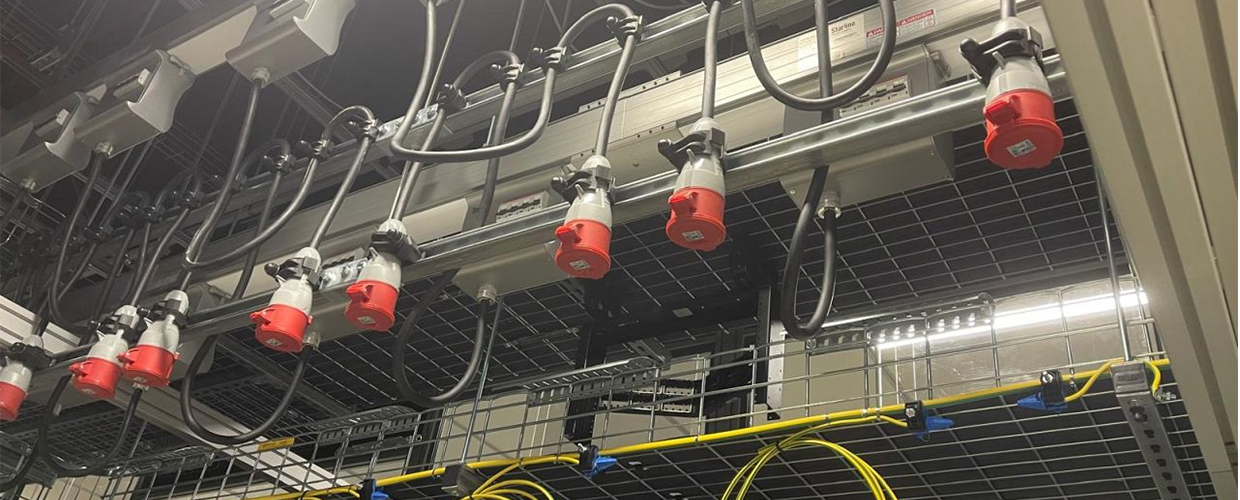

They may serve as inputs or interconnections for PDUs, distribution equipment, and data center power whips.

Q:What is the difference between 3P+E and 3P+N+E?

A:3P+E provides three phase conductors and protective earth. 3P+N+E adds a neutral conductor.

The appropriate choice depends on whether the equipment requires a neutral connection.

Q:Are CEE plugs waterproof?

A:Some CEE plugs and connectors have high IP ratings, such as IP67, but not every CEE plug is waterproof.

Always check the specific product's IP rating and the installation conditions.

What information should I provide when ordering a 125A IEC60309 connector?

At minimum, specify:

• Voltage

• Current

• Frequency

• Number of poles

• Clock position

• IP rating

• Cable size

• Cable diameter

• Plug or connector type

• Application environment

For example:

• 415V / 125A / 50–60Hz / 3P+N+E / 6h / IP67

This gives a manufacturer a much clearer engineering specification than simply requesting a "125A IEC connector."

Conclusion: Selecting the Right 415V or 480V Industrial Connector

Choosing an IEC60309 connector should start with the electrical system rather than the connector itself.

For a typical 415V three-phase system, engineers should verify whether the application requires 3P+E or 3P+N+E and whether the standardized configuration uses the 6h clock position.

For a typical 480V three-phase system, the 7h configuration commonly applies to the 480–500V range.

From there, the selection process should consider current rating, cable size, IP protection, environmental conditions, certification requirements, and the intended application.

For industrial machinery, generators, distribution cabinets, and portable equipment, the right Cord-Mount Plug or Cord-Mount Connector can provide a robust and standardized power interface.

For an AI data center, the connector becomes part of a larger data center power solutions architecture involving PDUs, data center power whips, data center plugs, high-current cables, and rack power distribution.

The most reliable approach is therefore to specify the complete electrical interface: voltage + current + phase configuration + clock position + IP rating + cable compatibility + application environment.

That specification gives manufacturers and engineers a clear starting point for developing a safe, compatible, and dependable industrial power connection.
