PDU Specifications:
Input voltage: 346-415VAC
Input current: 3 x 60A
Output voltage: 200~240VAC
Outlets: 36 ports of C39 sockets with self-locking feature Socket compatible to both C13 and C19
Protection: 12 pcs of 1P 20A UL489 hydraulic magnetic circuit breakers One breaker every three outlets
Remote monitor PDU input current, voltage, power, KWH
Remote monitor each output port’s current, voltage, power, KWH
Smart Meter with Ethernet/RS485 interface, support HTTP/SNMP/SSH2/MODBUS
UL/cUL Listed and Certified (ETL Mark)
Two PDUs installed vertically on both sides of the cabinet.

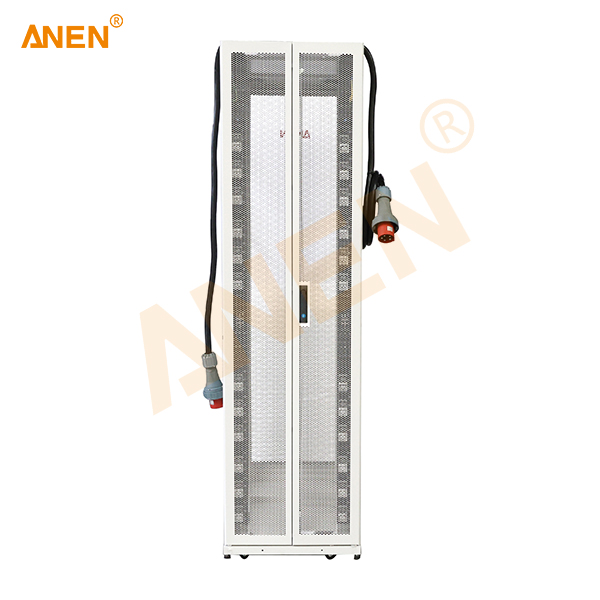

Two 5*6AWG cables with CEE 63A plug
This 47U server rack is built with high-quality materials such as heavy-duty steel, ensuring long-lasting protection for sensitive IT hardware. Its standard dimensions provide flexibility for various configurations, while adjustable rack rails accommodate multiple server and network devices.
Common features include:
Material: Premium cold-rolled steel with powder-coated finish for durability.
Dimensions: 47U height with a depth range of 600mm to 800mm.
Load Capacity: Able to support up to 1,000kg of equipment, perfect for server racks, network server racks, and heavy IT infrastructure.
Ventilation: Designed with optimized airflow to prevent overheating and ensure equipment performance.
Mounting Options: Adjustable rails for server rack mount compatibility.
Applications: Perfect for computer server racks, IDC cabinets, and IT server racks in commercial data centers, network operations, and even home server environments.
