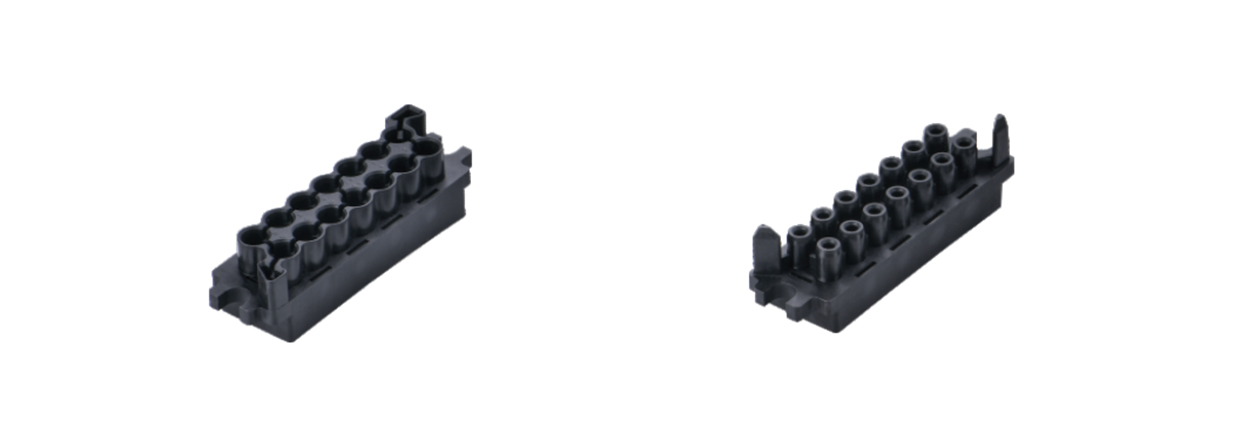

DJL 14-14 Industrial Modular Connector – High-Power, Reliable Connection
Share to：

DJL 14-14 Industrial Modular Connector – High-Power, Reliable Connection

The DJL 14-14 Industrial Modular Connector is engineered for high-performance power applications.
Model： DJL14-14
Rated current (Amperes)： 75A
average Contact Resistance： ≤0.75mΩ
Withstanding Voltage： 1000V
Insulation Resistance： ≥500MΩ (at room temperature); ≥20MΩ (under humid/hot conditions)
Vibration： Frequency 10–2000 Hz; Acceleration 147 m/s²
Impact： 980m/s²
Operating Temperature Range： -55℃ to +125℃
Relative humidity： 40℃，93%RH
Contact Us  SEND
Detail
Why ANEN
Application Scenario
Solution
FAQ

Product Overview

The DJL series connectors are specialized interface products designed for modular power supplies. They are fully interchangeable with comparable products from other manufacturers and have obtained UL safety certification (E319259). This series utilizes single-leaf hyperboloid spring sockets and crown spring sockets as contact elements, thereby ensuring high dynamic contact reliability.


The DJL 14-14 Industrial Modular Connector is engineered for high-performance power applications. With a rated current of 75A and a mechanical life of 500 cycles, it combines robust reliability with low contact resistance, making it ideal for PCB connections, modular power supply systems, and UPS applications.



Why choose this connector:

  • High-current capacity ensures stable power supply even under load fluctuations

  • Smooth mating and unmating for effortless assembly and maintenance

  • Durable in extreme conditions: temperature range of -55°C to +125°C and resistance to vibration and impact

  • Dynamic contact reliability thanks to silver-plated beryllium copper contacts

  • This connector is not just a plug—it is a critical component in industrial modular connector solutions where reliability and safety cannot be compromised.

Detailed Description

The DJL modular connector has been crafted for demanding industrial environments. It integrates precision-engineered contact elements made from high-elasticity, high-strength beryllium copper, plated with silver for low resistance and long-term corrosion protection.

Technical Specifications:

Parameter

Specification

Rated Current

75A

Average Contact Resistance

≤0.75mΩ

Withstanding Voltage

1000V

Insulation Resistance

≥500MΩ (room temperature), ≥20MΩ (humid/hot conditions)

Flammability Rating

UL94 V-0

Vibration Resistance

10–2000 Hz; 147 m/s²

Impact Resistance

980 m/s²

Mechanical Life

500 cycles

Operating Temperature

-55°C to +125°C

Relative Humidity

40°C, 93% RH


Key Functional Advantages:

  • Low insertion and extraction forces: Reduces wear on both connectors and PCB contacts

  • Reliable dynamic contact performance: Maintains consistent electrical connectivity under vibration and repeated cycles

  • High current-handling capability: Supports heavy industrial power loads without overheating

  • Customizable modular solutions: Options available for specific PCB footprints, plug/socket orientations, and contact configurations

  • Safety assured: UL94 V-0 rating ensures flame-retardant performance, protecting equipment and operators

Why the design matters:

The silver-plated beryllium copper contacts combine excellent conductivity, elasticity, and mechanical strength, delivering superior connection integrity. This makes the DJL 14-14 an ideal choice for industrial modular connectors, modular power supplies, and UPS power systems where reliability is mission-critical.

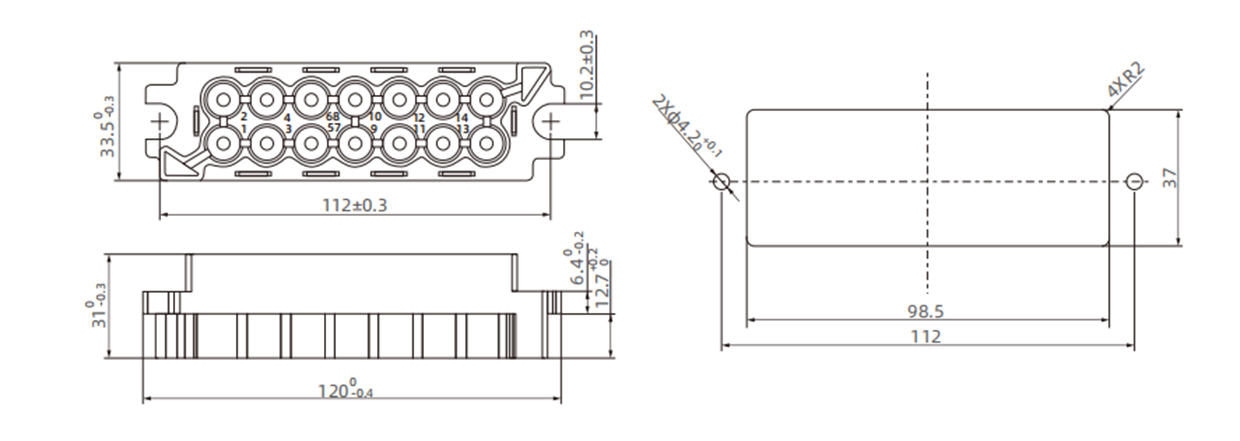

PLUG OUTLINE AND MOUNTING HOLE SIZE

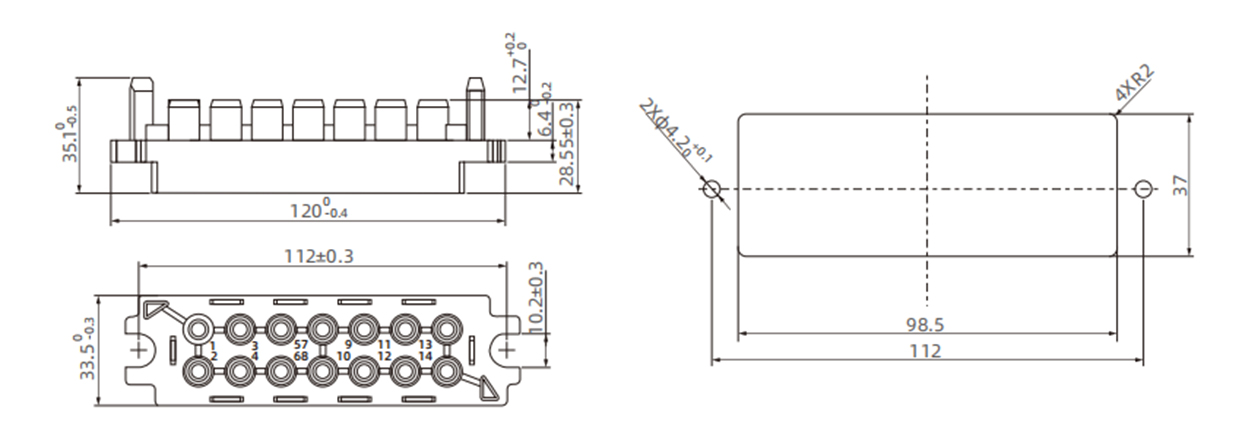

SOCKET OUTLINE AND MOUNTING HOLE SIZE


Why Choose ANEN

ANEN – Your Trusted Modular Connector Manufacturer

  • Direct-from-factory sourcing: Eliminates middlemen; no MOQ, cost-effective

  • Custom manufacturing: Tailored industrial modular connectors based on your designs

  • Certified quality: UL94 V-0 rated, fully tested for vibration, impact, and thermal resistance

  • Comprehensive support: Expert assistance from inquiry to post-installation

  • Contact us: For custom DJL modular connector solutions, call or email today

Key Benefits:

  • Save time and cost with direct factory supply

  • Ensure high reliability and durability in industrial applications

  • Access engineering expertise for PCB, UPS, and automotive electronics integration



Application Scenarios

The DJL 14-14 Industrial Modular Connector excels in industries requiring stable power delivery and robust connectivity:

Industrial Automation & Robotics: Powers machinery in vibration-heavy environments




UPS & Modular Power Supplies: Ensures uninterrupted power to critical systems




Automotive Electronics Inspection: Provides precise, low-resistance connections for testing and diagnostics




PCB Power Distribution: Compact, high-reliability connections for electronics assembly




Renewable Energy Systems: Stable connections in solar panels and wind turbines




These modular connector solutions are built to thrive in harsh industrial environments, where temperature extremes, high humidity, and mechanical stress are everyday challenges.


Solutions – What We Provide

At ANEN, the DJL modular connector goes beyond being just a component: it is part of a full solution set for industrial power systems:

  • Optimized high-power handling to reduce energy loss and ensure efficiency

  • Plug-and-play design: Smooth mating and unmating with low insertion forces

  • Durability under extreme conditions: Resistant to vibration, impact, and temperature swings

  • Custom modular connector solutions: Adapted to your PCB layout, UPS design, or industrial power supply configuration

  • Technical support & engineering assistance: Guidance for integration, assembly, and troubleshooting

By choosing DJL modular connectors, customers secure reliable power delivery and long-term operational efficiency.


ANEN Company.jpg

Frequently Asked Questions (FAQ)

Q1: Can the DJL 14-14 connector be used in high-humidity environments?

A: Yes, it maintains ≥20MΩ insulation resistance under hot and humid conditions, making it reliable in challenging climates.


Q2: How customizable is this connector?

A: We offer custom PCB layouts, plug orientations, contact configurations, and power ratings to match your industrial needs.


Q3: What makes it superior for automotive electronics inspection?

A: Its low insertion force, precise contact alignment, and high current stability provide accurate testing conditions.


Q4: How long is the mechanical life?

A: Rated at 500 cycles, ensuring reliable long-term operation.
