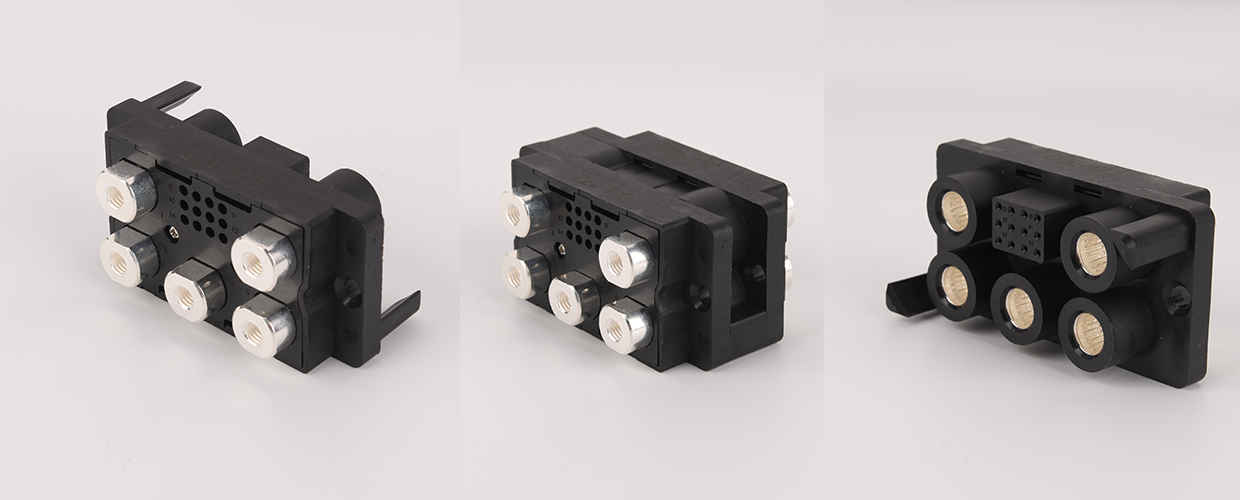

DJL17Modular Power Connector

Product Description

The DJL 17 industrial modular connector is a premium solution for modern modular power supply systems, engineered by ANEN, a leading modular connector manufacturer in China. Combining precision engineering with durable materials, this series ensures consistent performance under demanding industrial environments. Its advanced contact technology, including crown-spring and single-leaf hyperboloid wire-spring sockets, delivers low resistance, high dynamic reliability, and stable current flow.

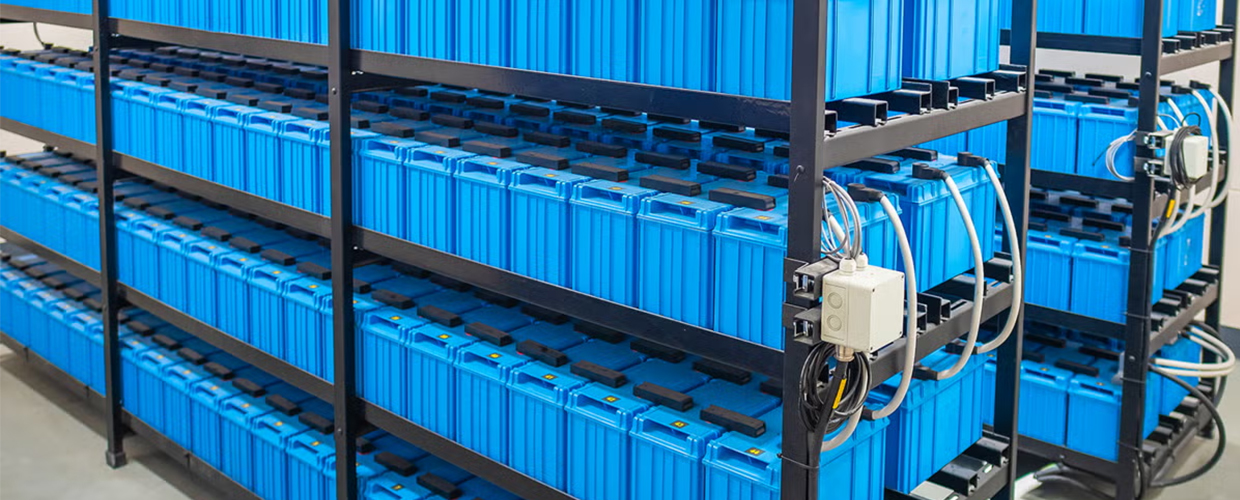

With fully interchangeable designs compatible with industry standards, the DJL modular connector provides flexibility for diverse applications including UPS power supply, PCB assembly, and other modular power supply systems. The series supports both long and standard pin configurations, with fully customizable solutions to meet unique client requirements.

Technical Parameters

Detailed Features & Advantages

High-Quality Materials for Reliable Power Connections

• Contacts: Copper core with gold or silver plating ensures low resistance, superior conductivity, and excellent corrosion resistance.

• Housing: High-strength PA material with UL94 V-0 flammability rating guarantees safe operation under high temperatures and industrial stress.

• Springs: Crown-spring sockets made from high-strength bronze provide smooth, gentle mating and large contact areas, ensuring low temperature rise and stable current transmission.

Advanced Contact Technology

• Crown-spring design: Enhances contact reliability, reduces wear, and supports high-frequency mating cycles.

• Single-leaf hyperboloid sockets: Deliver exceptional dynamic stability for demanding industrial environments.

Flexible and Customizable

• Pin configurations are available in both standard and long lengths.

• Custom designs are possible for unique modular power supply layouts, including PCB footprints.

• Compatible with other leading modular connectors, ensuring seamless integration.

Robust Performance

• Works in extreme conditions: -55℃ to +125℃ and 93–95% humidity.

• Withstands mechanical stress, shock, and vibration.

• Rated voltage and current meet demanding industrial modular connector requirements.

Why Choose ANEN – Your B2B Factory Partner

• Direct manufacturer: Purchase directly from our factory with no MOQ, ensuring cost efficiency.

• Custom-made solutions: We manufacture modular connectors from drawings, tailored to your exact specifications.

• Certified quality: All products meet international standards for safety and performance.

• After-sales support: Expert guidance from our engineering team throughout your project.

• Fast inquiries & production: Efficient B2B manufacturing for large-scale industrial orders.

Partnering with ANEN means accessing a reliable modular connector manufacturer with decades of industrial modular power supply expertise.
