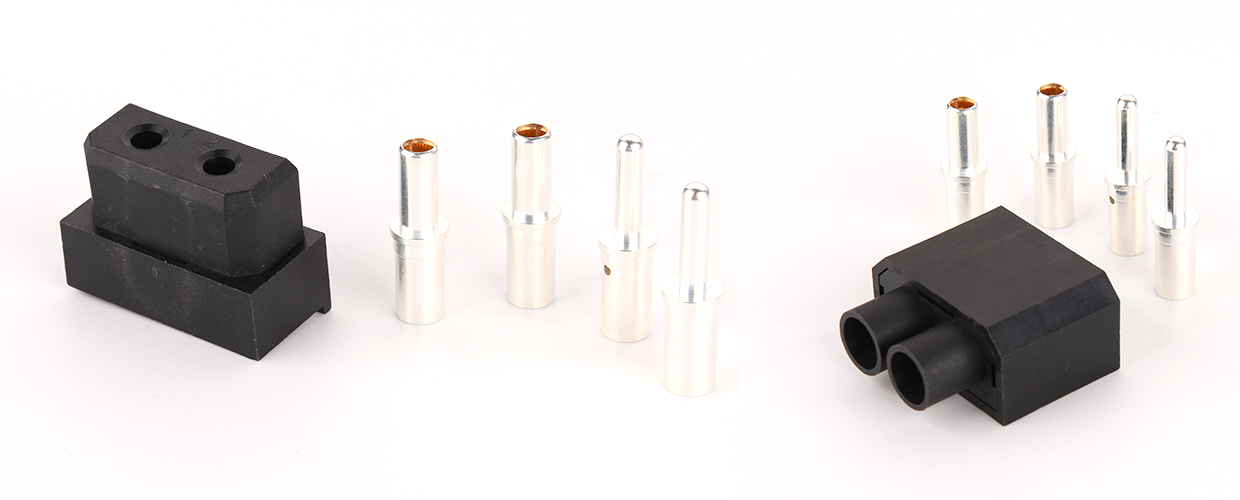

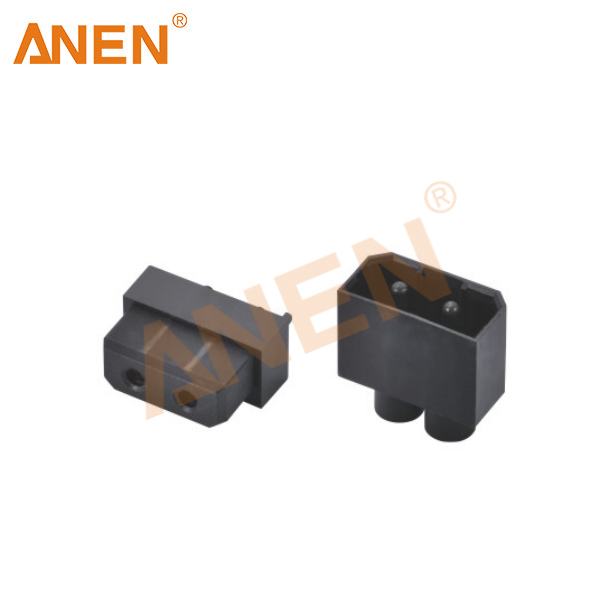

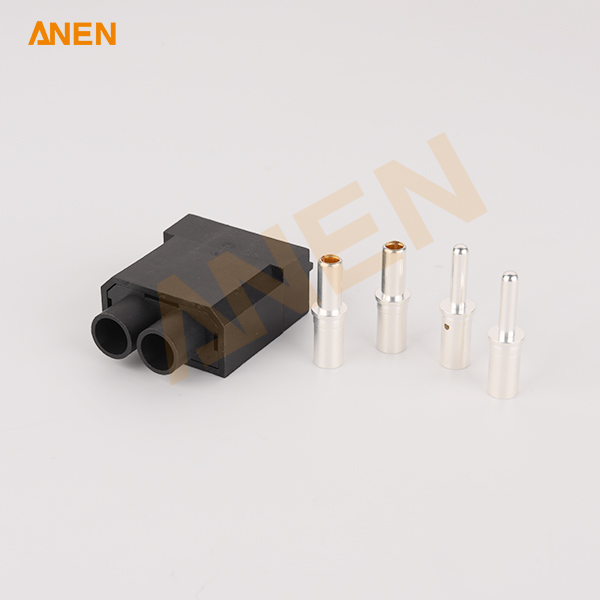

Product DescriptionThe DJL series industrial modular connector provides unmatched power transmission and reliable connectivity for high-demand industrial environments. Rated for 75A at 250V, these connectors ensure low contact resistance, smooth insertion, and high dynamic reliability, making them ideal for modular power supply, UPS power supply, and PCB integration applications.
Innovative crown spring sockets and gold- or silver-plated contacts offer superior contact reliability, even under repeated insertion and extraction cycles. The DJL75 connector maintains excellent performance across extreme temperatures (-55℃ to +125℃) and severe vibration (up to 147m/s²), ensuring uninterrupted operation in harsh industrial settings.
Tailored modular connector solutions make the DJL series perfect for factories, automation systems, and energy distribution setups. Its modular design allows for scalable configurations while ensuring safe, high-current power supply, and minimal energy loss.
Detailed DescriptionMaterials & Construction:Core Features & Advantages:Unique Features:Custom Options:Parameter Table: Technical Advantages & B2B FocusParameter | DJL75 Industrial Modular Connector | Advantages for B2B Manufacturing | Rated Current | 75A | Supports heavy-duty industrial loads, ideal for factories & power systems | Rated Voltage | 250V | High-voltage compatibility ensures safe modular power supply | Withstanding Voltage | ≥2000V | Provides safety margins for industrial automation applications | Contact Resistance | ≤0.5mΩ | Minimizes energy loss, improves efficiency for UPS and PCB systems | Flammability | UL94 V-0 | Compliant with safety standards, reducing risk in large-scale production | Mechanical Life | 500 cycles | Long-term reliability reduces maintenance cost for industrial clients | Vibration | 10–2000Hz, 147m/s² | Resilient to machinery vibrations, transport, and robotic systems | Operating Temp | -55℃ to +125℃ | Flexible deployment across industrial sites with harsh environments | Contact Material | Beryllium bronze, gold/silver plating | High corrosion resistance, extended connector lifespan | Termination Method | Crimping | Reliable assembly for B2B applications and automated manufacturing |
B2B Advantages Highlighted:
Why Choose ANEN For inquiries or custom DJL modular connector solutions, contact our engineering team for guidance and quotation.
The DJL series industrial modular connector is designed for high-demand industrial environments, delivering robust performance in multiple sectors: Industrial Automation: Ensures reliable power delivery to automated systems and production lines
UPS Power Supply: Maintains stable energy flow during backup and emergency scenarios
PCB Integration: Compact, high-current modular connectors for circuit boards
Renewable Energy: Supports solar, wind, and hybrid systems with high-current modular solutions
Robotics & Machinery: Provides shock-resistant connections for equipment subject to vibrations
Energy Distribution & Factory Equipment: Efficient modular power supply connections in high-power environments
By combining high current capacity, low contact resistance, and thermal and vibration resilience, the DJL series addresses multiple industrial modular connector solutions challenges.
SolutionsThe DJL series industrial modular connector provides comprehensive modular connector solutions tailored for manufacturers and system integrators: ANEN’s connectors reduce operational risk, lower maintenance cost, and support high-volume B2B manufacturing projects with confidence.
Frequently Asked Questions (FAQ)Q1: What is the maximum current and voltage rating? A1:Rated for 75A and 250V, suitable for high-demand industrial modular power supply scenarios.
Q2: How durable is the connector? A2:Mechanical life exceeds 500 cycles; designed for high-vibration environments up to 147m/s².
Q3: Can the DJL connector be customized? A3:Yes, clients can select pin count, PCB compatibility, and plating options.
Q4: Is it safe in extreme temperatures? A4:Yes, rated -55℃ to +125℃ with flame-retardant UL94 V-0 housing.
Q5: Which industries typically use DJL connectors? A5:Applications include UPS power supply, industrial automation, robotics, PCB integration, renewable energy, and energy distribution. |
