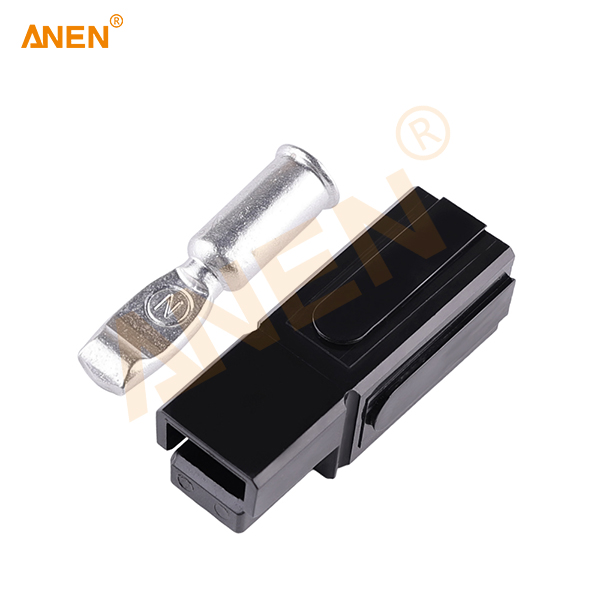

Reliable PA180 Amp Powerpole Connectors: Your Ultimate Power Solution

When it comes to high-powered applications, reliable connections are a must. Our 180 Amp Powerpole Connectors are engineered to provide the most secure, durable, and efficient power delivery for your demanding systems. Whether you're powering up solar panels, electric vehicles, or industrial machinery, these connectors are built to handle the toughest environments.
model: PA180
Rated current (Amperes): 180A
Flammability: Ul94 V-0
Voltage Rating AC/DC: 600V
average Contact Resistance(mic: <95μΩ
Contact Barrel Wire Size (AWG): 1/0~4AWG
Insulation Resistance: 5000MΩ
Contact material: Copper 、Plate with silver or Tin
average. Connection\disconnect: 70N
Insulation material: PC
Connector holding force (lbf): 500N Min
Without load (Contact/Disconne: ≤10,000
Temperature Range: -20℃~105℃
Dielectric Withstanding Voltag: 2200 Volts AC
Wire specifications: 600V
Detail
Why ANEN
Application Scenario
Solution
FAQ

Why Choose Our 180 Amp Powerpole Connectors?


Flat wiping contact system


Minimal contact resistance at high current, wiping action cleans contact

surface during connection/disconnection

Molded-in dovetails

Secures individual connectors into "keyed"assemblies which prevents

misconnection with similar configurations

Interchangeable genderless design

Makes assembly easy and reduces stock

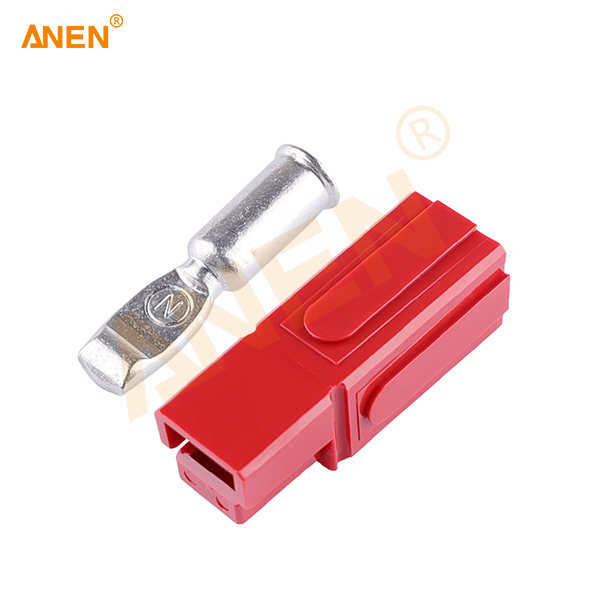

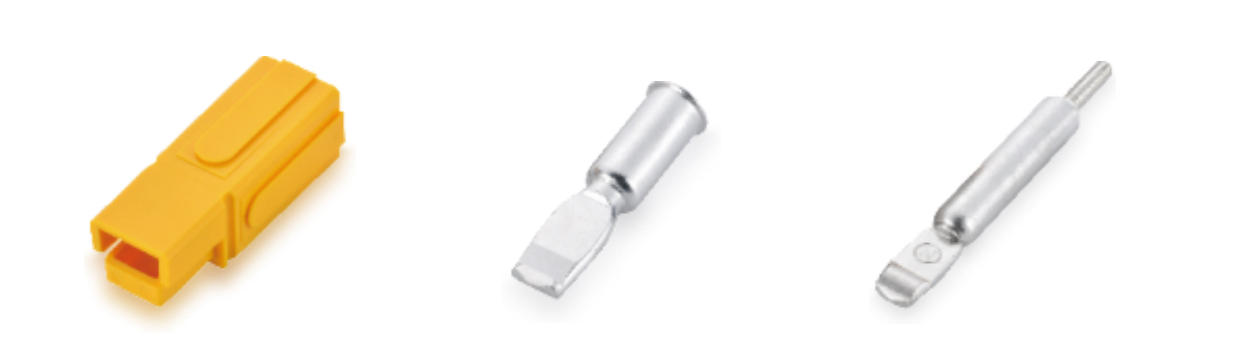

·A set of connector is made up of one housing and one terminal


This product has passed UL and CUL certification and can be used in a wide range of industries such as logistics, communications, power tools, UPS, mobile products, medical equipment, and AC/DC power supplies.



Key Features of 180 Amp Powerpole Connectors


Our power connectors offer numerous benefits for a wide range of applications. Here’s what sets our amp terminal connectors apart:


Unmatched Durability & Quality Materials


Built with premium thermoplastic housing and copper terminals, our 180 Amp Powerpole Connectors are designed to withstand the harshest conditions. They resist high temperatures, corrosion, and wear, ensuring your systems stay up and running no matter what.

  • Amp Connector Terminals: Made from high-grade copper for low resistance and excellent conductivity, ensuring reliable power transmission.

  • Thermoplastic Housings: Engineered to resist extreme temperatures, these housings provide long-lasting durability.

Secure & Reliable Connections

No more worrying about loose or unreliable connections. The friction-lock mechanism in our amp connector terminals ensures that every connection stays firmly in place, even in high-vibration applications.

Powerpole Connectors are designed to offer a secure connection that won’t come undone, making them perfect for environments that require continuous, stable power delivery.

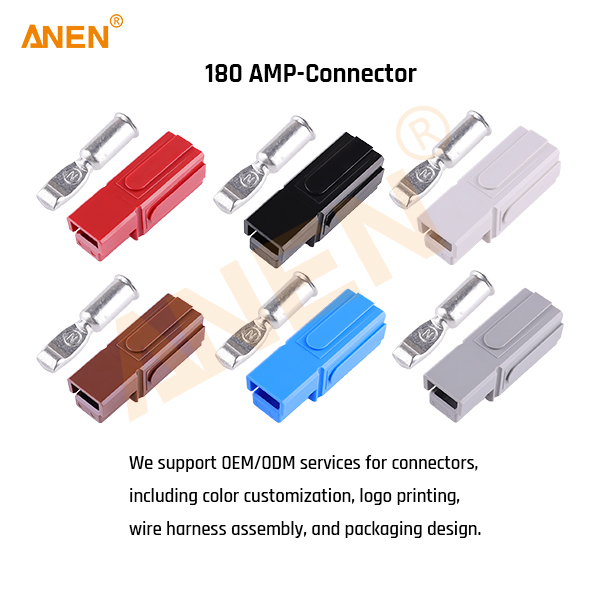

Tailored Solutions with Customizable Connectors


One of the standout features of our 180 Amp Powerpole Connectors is their customizability. Whether you need specific colored housings for easy identification, unique battery terminal configurations, or custom terminal sizes, we’ve got you covered. Customize the connectors to fit your exact needs, ensuring seamless integration into your projects.

  • Custom Connectors: Choose from a variety of sizes, colors, and terminal configurations to match your exact specifications.No need to compromise on your connection needs.

  • Colored Housings: Easily distinguish between different circuits with our wide range of colored housings, enhancing safety and efficiency.

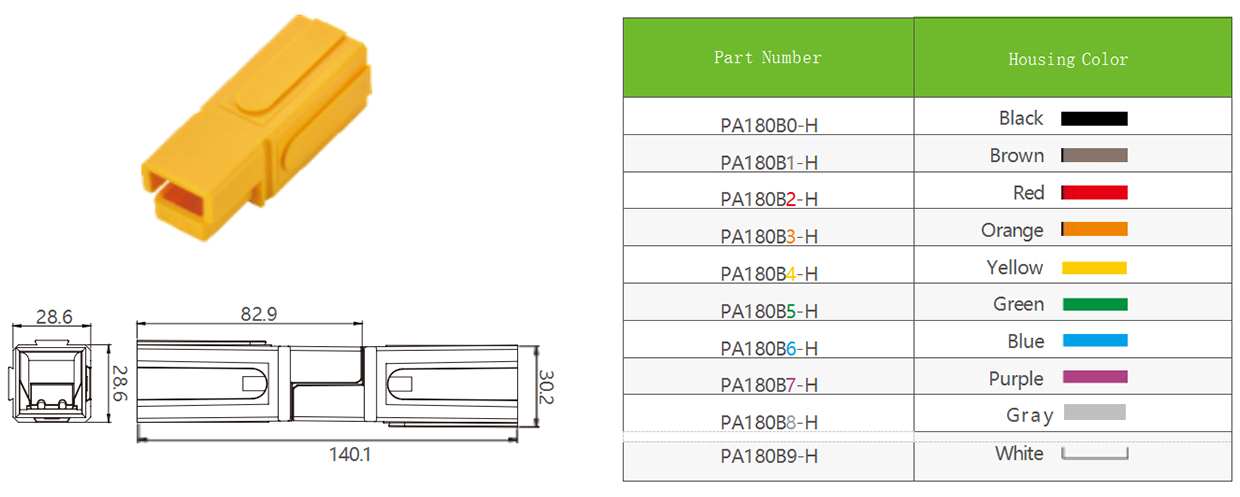

HOUSING

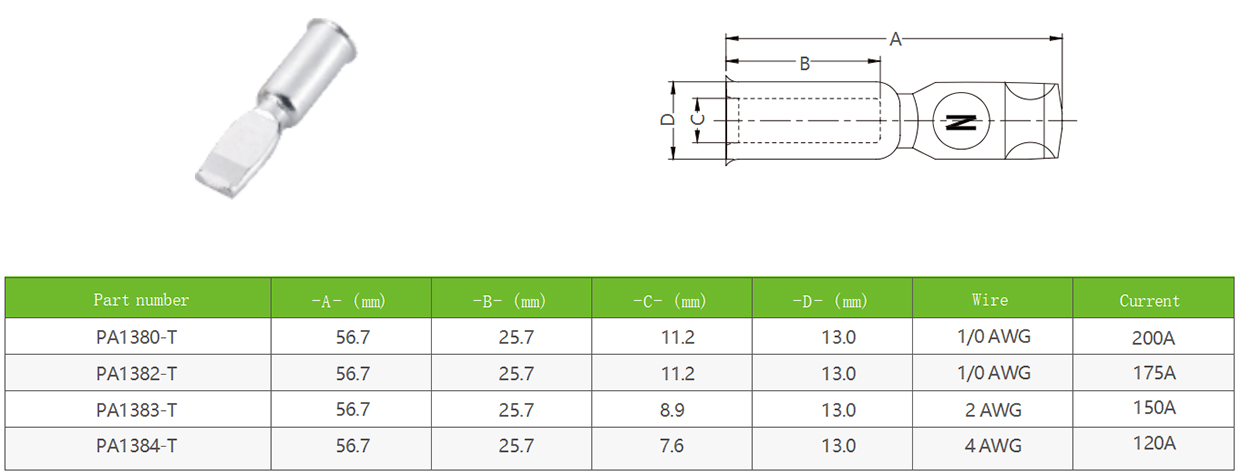

TERMINAL

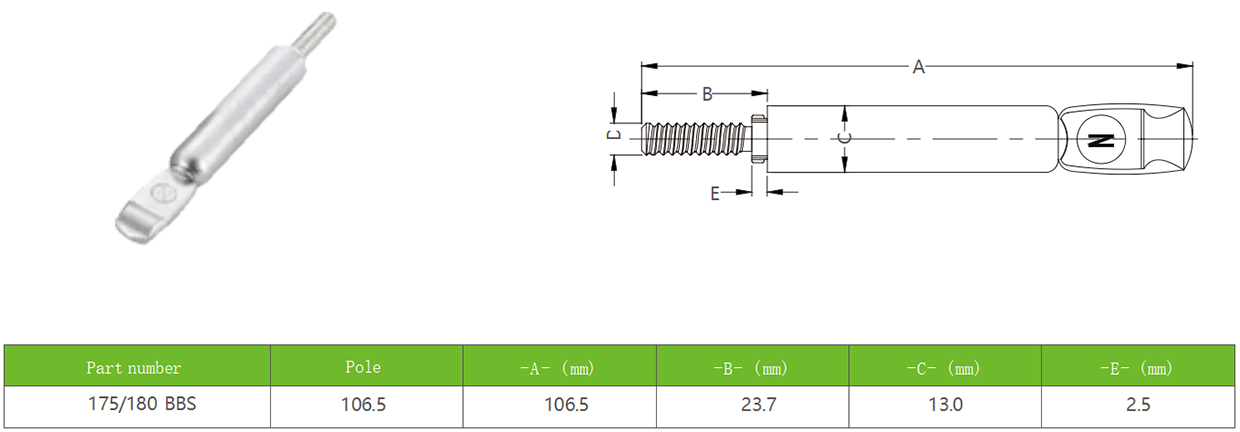

PCB TERMINAL CONTACTS

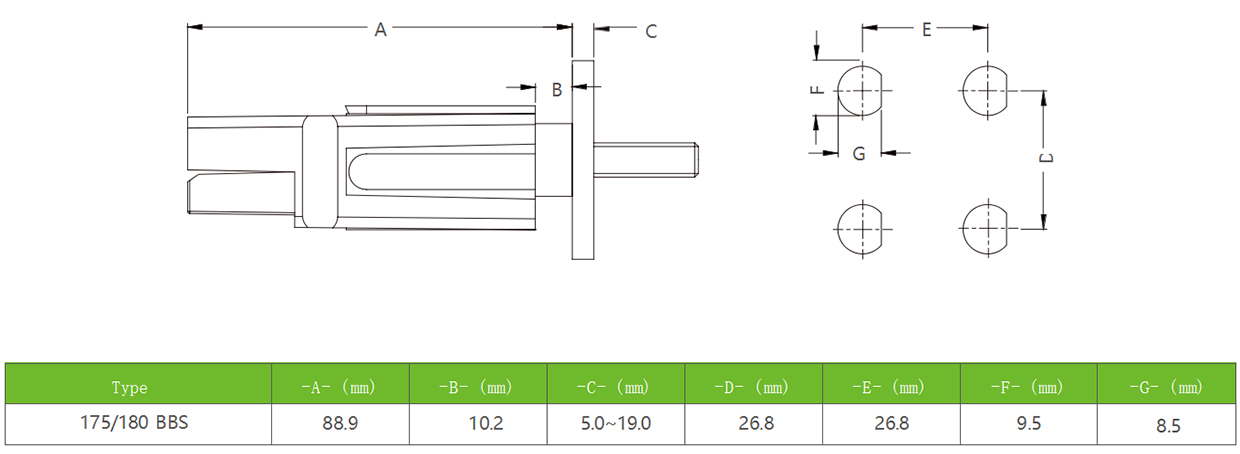

MOUNTING DIMENSIONS






Why Our 180 Amp Powerpole Connectors Stand Out


Our power connector plug provides exceptional performance that goes beyond standard connectors. Here’s why:

Low Resistance, High Efficiency

Energy loss can be costly, especially in high-demand environments. Our amp connector terminals feature gold-plated contact points that reduce

resistance, improving conductivity and ensuring maximum efficiency in your system.

  • Gold-Plated Terminals: Ensure superior conductivity and corrosion resistance for long-term, efficient power deliver

  • Minimal Power Loss: High-quality construction ensures your systems run at peak performance, reducing the risk of overheating and energy waste.

Versatility for Every Need

From PCB terminal applications to battery terminals, our 180 Amp Powerpole Connectors offer the versatility you need to power a variety of

systems. Compatible with various power systems, these connectors are engineered to integrate with your setup seamlessly.

  • Battery Terminals: Perfect for securing connections in battery banks or high-current battery terminal applications.


  • Custom Configurations: Whether you're working with a power connector for a solar panel system, electric vehicle, or another high-power

    application, we offer custom solutions to fit your needs.



Perfect for High-Power Applications: Versatile Usage

The versatility of our 180 Amp Powerpole Connectors makes them ideal for various industries and applications that require high-current solutions. Whether you're working with power systems in renewable energy, backup power systems, or electric vehicles, our connectors provide a secure and efficient solution.

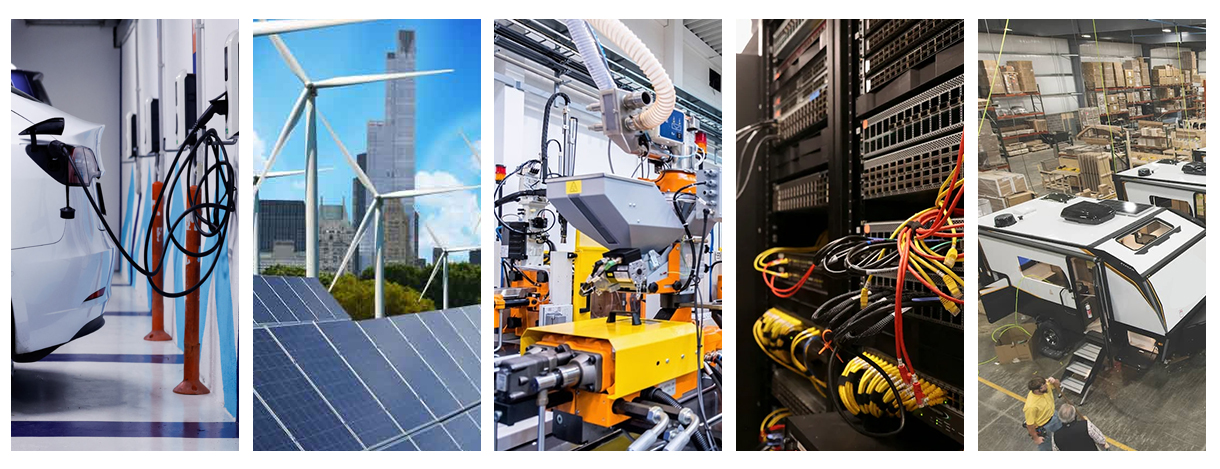

Industries Served by Our Power Connectors

Our powerpole connectors are designed for use in diverse sectors. Here's how they can benefit different industries:

  • Renewable Energy Systems: For applications such as solar power or wind energy, these connectors provide a reliable, efficient connection for solar panel systems, battery banks, and inverters.


  • Electric Vehicles & Charging Stations: Our amp power connector plugs are perfect for EV charging stations and vehicle power systems, offering secure connections for high current flows.


  • Industrial Equipment: Power machinery, motors, and automation systems reliably with our amp terminal connectors.


  • Telecommunications: Ensure seamless, uninterrupted power delivery for critical data centers and telecom infrastructure.

Backup Power Systems: Use in uninterruptible power supplies (UPS), where stability and security are key.



Our Advantages: Quality, Customization, and Support

Choosing the right connector manufacturer makes all the difference. With our 180 Amp Powerpole Connectors, you get more than just a product – you get a complete solution.

Direct Factory Access & No MOQ

As the manufacturer, we offer direct access to our factory, providing you with high-quality amp connector terminals without the middleman markup. Plus, we don’t require a minimum order quantity (MOQ), so you can order exactly what you need, whether it’s one unit or thousands.

Guaranteed Quality & Certifications

Our powerpole connectors undergo rigorous testing to ensure that they meet industry standards. Certified for reliability and performance, you can trust that each connector delivers the power and safety your systems need.

Comprehensive After-Sales Support

We’re here for you every step of the way. From helping you choose the right amp power connector plug to offering installation guidance, our team is dedicated to ensuring that your experience with us is seamless and satisfactory.


ANEN Company.jpg

Frequently Asked Questions (FAQ)


Q1: What is the current rating of the 180 Amp Powerpole Connectors?
These connectors are rated for 180 amps, making them ideal for high-power applications like electric vehicles, solar systems, and industrial equipment.


Q2: Can I customize the colored housings for easy identification?
Yes! We offer a range of colored housings so you can quickly distinguish between circuits, improving efficiency and safety.


Q3: Are these connectors compatible with battery terminals?

Absolutely! Our amp battery terminal options are designed to work efficiently in battery-powered applications, ensuring a solid, long-lasting connection.


Q4: How do I place a custom order for these connectors?
Simply reach out to our customer support team to discuss your specific requirements, and we’ll assist you in creating the perfect custom solution.
