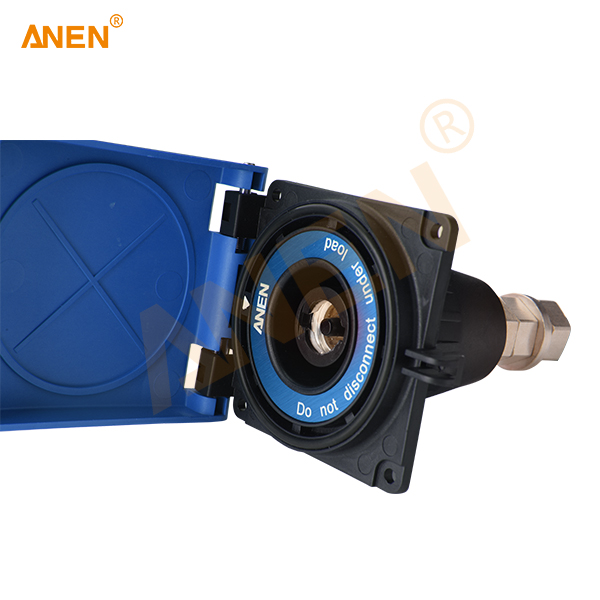

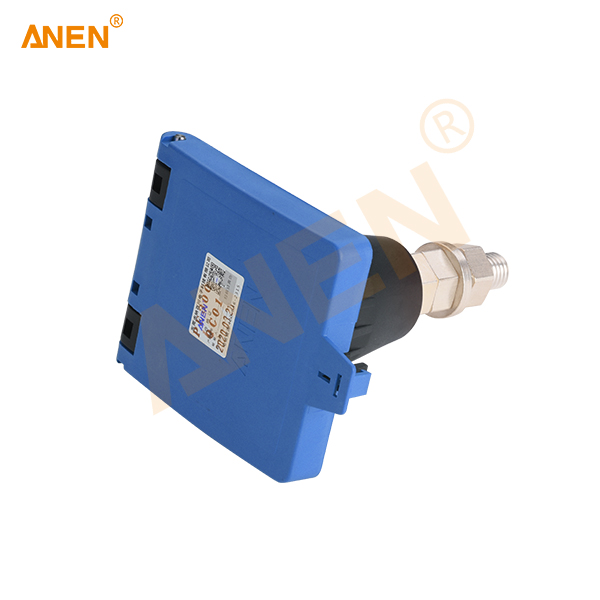

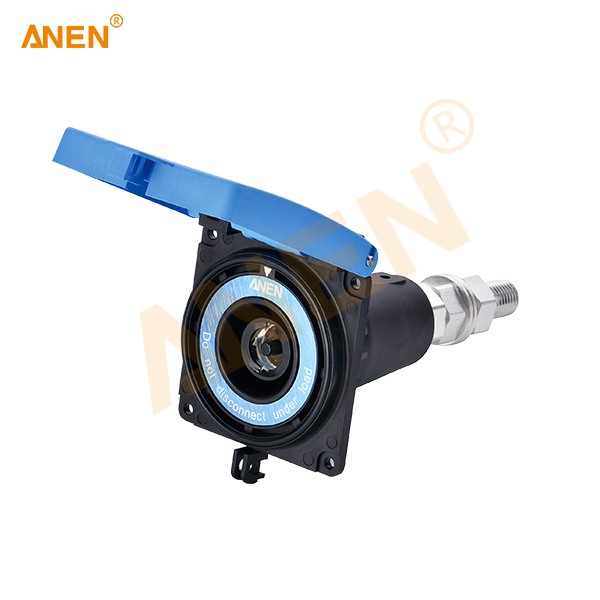

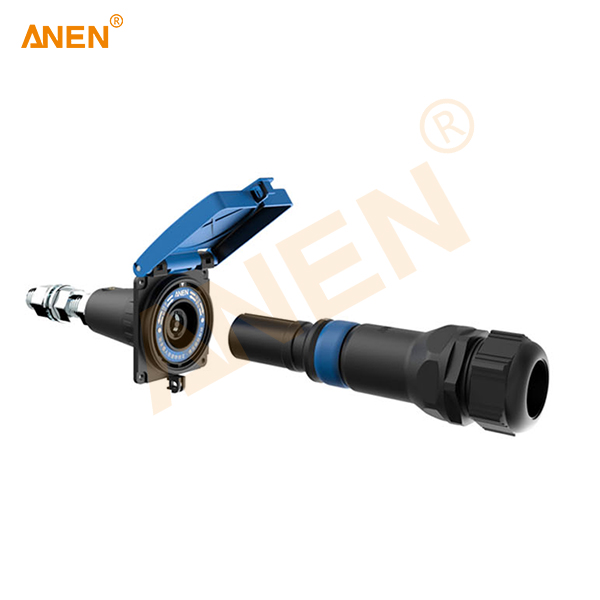

Bypass Panel Socket 400A – High-Performance Electrical Connector for Industrial Applications

Detailed Description

Crafted for high-performance use in bypass systems, the Bypass Panel Socket 400A boasts advanced materials and features that ensure seamless, reliable operation in demanding environments. Here are the product details:

Rated Voltage & Current: The Bypass Panel Socket is rated for 1000V, ensuring compatibility with both low voltage and high-power systems, such as emergency power generation equipment and bypass work equipment. With a current capacity of 400A, this socket can handle significant loads with ease, providing stable power connections where it counts the most.

Wire Compatibility: Designed to support wire sizes ranging from 185mm² to 300mm², the connector accommodates larger cables, allowing for reliable connections even in high-demand electrical systems.

Contact Material: The connector terminals are made from a silver-plated copper alloy, known for its superior electrical conductivity. The silver plating significantly reduces resistance, ensuring efficient electric power transfer and minimizing heat generation during high-current operations.

Insulation Material: The PA66 insulation material is used for its excellent dielectric properties, ensuring the socket’s internal components are protected from external electrical interference and environmental factors.

Flame Retardant Rating: Certified to UL94-V0, the Bypass

meets stringent fire safety standards, making it safe to use even in high-risk environments or areas prone to overheating.

Protection Class - IP67: With an IP67 rating, this panel socket is waterproof, dustproof, and resistant to temporary submersion in water, making it suitable for use in outdoor and harsh environments where other connectors might fail.

Material Characteristics: The connector housing is made of fiber-reinforced plastic, a material chosen for its outstanding toughness and impact resistance. This housing can withstand external force, ensuring the socket remains intact even when subjected to mechanical stress.

Crown Spring Design: Equipped with crown springs made of highly conductive copper, the connector offers excellent conductivity and fatigue resistance, ensuring long-term reliability for frequent connections and disconnections.

Color-Coded Silicone Rings: To prevent misinsertion, the socket is equipped with brightly colored silicone rings in blue, yellow, green, red, and black. These color codes make it easy to ensure proper installation and minimize errors.

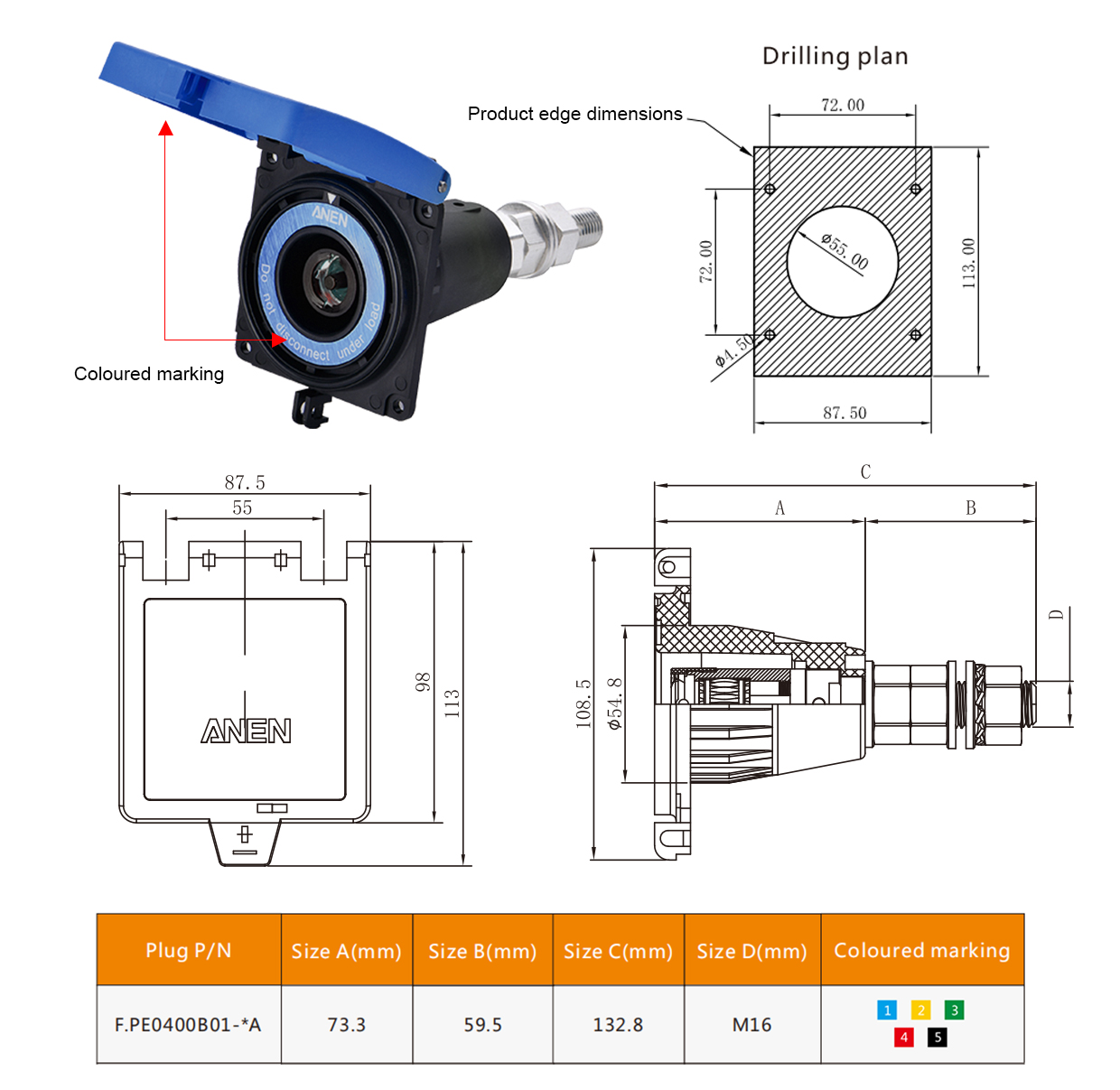

Panel Socket Type

Application Scenarios

The Bypass Panel Socket 400A is designed to provide quick and secure electrical connections across a range of industries, including:

Industrial Emergency Power Systems: Ideal for use in generator sets and distribution panels, this bypass device ensures a fast and reliable connection for power restoration during emergencies, providing an essential solution for critical infrastructure.

Construction Sites: In construction environments, temporary power setups are often necessary. The Bypass Panel Socket allows for quick, safe connections, minimizing downtime and ensuring that construction equipment operates efficiently without power interruptions.

Renewable Energy Applications: For renewable energy systems such as solar power or wind power generation, the Bypass Panel Socket enables a quick and reliable connection to backup power sources, ensuring that power systems remain operational even during maintenance or other disruptions.

Marine and Offshore: Due to its IP67 waterproof rating, this panel socket is perfect for marine or offshore applications where moisture and harsh weather conditions are prevalent. Its durability and reliable connection make it a go-to solution for power systems in these challenging environments.

Solution

The Bypass Panel Socket 400A is engineered to address the unique needs of industries that require fast, safe, and reliable

power connections in emergency or temporary settings. By choosing this product, customers can benefit from:

Quick and Reliable Connections: The Bypass Panel Socket ensures fast, easy connections and disconnections, reducing

downtime in critical systems like emergency power generation and industrial equipment.

Durability in Harsh Environments: With a rugged design and IP67 protection, this connector thrives in extreme conditions—

whether you're dealing with extreme temperatures, moisture, or physical impact.

Long-Term Performance: The high-quality materials used in the Bypass Panel Socket, including silver-plated copper alloy

terminals and fiber-reinforced plastic housing, ensure long-term reliability, minimizing the need for frequent replacements or

repairs.

Safety and Compliance: Certified with UL94-V0 flame retardant material and tested for IP67 protection, this product meets global

safety standards, giving customers peace of mind that they are using a connector that is both safe and dependable.

Factory Direct, No MOQ: As a leading Bypass device manufacturer, we offer direct factory pricing with no minimum order quantity

(MOQ). Whether you're a small business or a large enterprise, we are ready to fulfill your needs with flexible order options.

Quality Assurance & Certification: Our products undergo strict quality control processes to ensure they meet the highest

standards. The Bypass Panel Socket is certified for safety, flame retardancy, and environmental protection, providing you with a

reliable, compliant product for your power systems.

After-Sales Support: We provide comprehensive after-sales support, including installation guidance, troubleshooting, and

warranty services. Our dedicated customer service team is here to assist with any questions or issues you may have.

Contact Us: To learn more about the Bypass Panel Socket 400A or to place an order, contact us today via our website or reach

our sales team at [email] or [phone number]. We're here to provide expert Bypass device solutions tailored to your specific needs.
