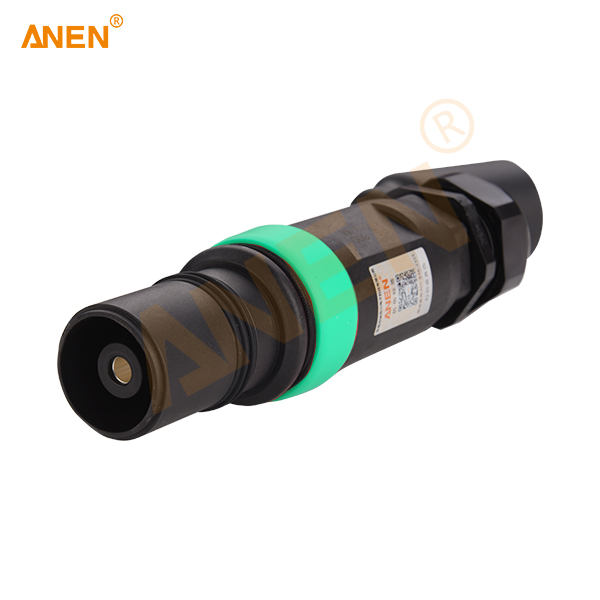

Product Description
The 800A Male Bypass Quick-Connect Plug is engineered to provide a seamless, secure, and efficient connection solution for
industrial bypass work equipment. With its robust design, superior materials, and ease of use, this plug ensures that bypass
systems perform optimally even in the most demanding environments. Whether you're working with electric power in temporary
or emergency setups, this plug guarantees a stable connection, reducing downtime and increasing operational efficiency.
Designed for ease of installation and high reliability, this bypass quick-connect plug stands out as a versatile and durable option
for a wide range of industrial applications. It is fully compliant with IEC60529, providing IP67-rated waterproof protection, ensuring
the plug performs reliably under harsh conditions.
Detailed Description
The 800A Male Bypass Quick-Connect Plug combines advanced material technology and precise engineering to offer top-tier
performance. Its color-coded silicone rings, durable construction, and enhanced conductivity make it one of the most reliable
options available for bypass device solutions.
Material Features:
Fiber-Reinforced Plastic Housing: The connector is housed in a robust fiber-reinforced plastic casing, which provides exceptional
impact resistance and toughness. This ensures that the plug can withstand external forces without compromising performance.
Unlike many plastic connectors, the housing is designed to endure harsh industrial conditions, including vibrations, temperature
extremes, and accidental drops.
Silver-Plated Copper Terminals: The connector terminals are crafted from high-grade copper alloy, then plated with a thick layer
of silver. This significantly boosts conductivity, reducing power loss and heat buildup. The use of silver plating also ensures a
longer service life, as it resists corrosion and oxidation better than other materials, providing consistent performance over time.
Spring Cap Features:
The spring caps are constructed from high-conductivity copper, ensuring minimal resistance and optimal power flow. Copper is
known for its excellent conductivity properties, and this material also offers outstanding fatigue resistance, which is critical for
ensuring the plug maintains its integrity over extended periods of use.
Color-Coded Identification:

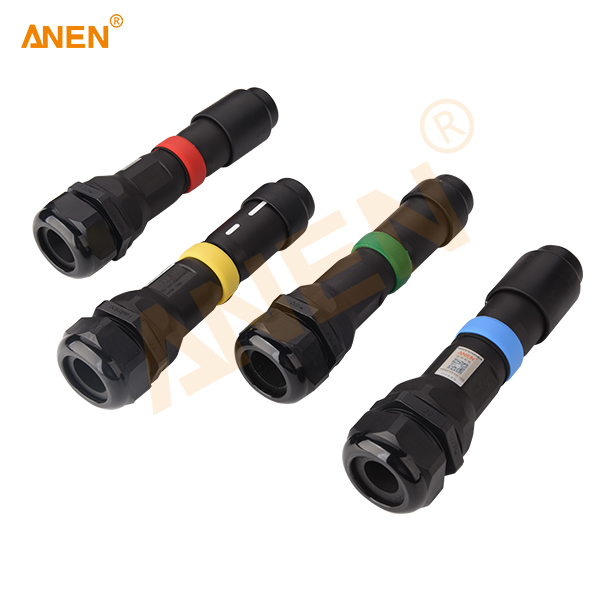

The plug comes with five different colors for the silicone rings (Blue, Yellow, Green, Red, Black). This simple yet effective feature
ensures easy identification and helps eliminate the risk of incorrect connections during installation or operation. The color-coded
rings make it easy to distinguish between different lines, ensuring that the bypass system operates smoothly without errors.
Locking Mechanism and Safety Design:
Safety is paramount in high-power systems, and the 800A Male Bypass Quick-Connect Plug includes a locking mechanism to
prevent accidental disconnections. The locking system ensures that once the plug is connected, it remains securely in place until
intentionally disconnected. Additionally, the touch protection design prevents the risk of electric shock during installation or
maintenance.
IP67 Waterproof Rating:
The IP67 rating signifies that the plug is fully protected against dust ingress and can withstand submersion in water up to a depth
of 1 meter. This makes it ideal for use in environments where moisture, dust, and debris are a concern. Whether used in outdoor
power systems, emergency power setups, or temporary connections, this plug remains reliable and durable in any weather
condition.
Cable male connector
