Bypass Panel Socket – 800A Quick-Connect Plug for Efficient and Safe Bypass Systems

Product Description

When it comes to bypass work in industrial emergency power systems, reliability and speed are paramount. The Bypass Panel Socket is engineered to meet the demanding needs of power generation equipment, switchboards, and mobile generator vehicles. Offering 800A power handling with an impressive 1000V rating, this panel socket provides a quick-connect solution that facilitates seamless power transitions in critical situations. It is designed to ensure maximum safety and easy operation under the toughest conditions.

Whether you are working in a low voltage environment or need a waterproof connector that can withstand the rigors of outdoor use, our Bypass Panel Socket is built to exceed your expectations.

Detailed Description

Premium Materials for Superior Performance

The Bypass Panel Socket boasts the best materials to ensure reliable operation over the long term. Here's a breakdown of its key components:

Contact Wire Size: Compatible with wire sizes ranging from 185mm² to 300mm², this flexibility allows for use across different applications and voltage levels while ensuring optimal electrical flow.

Contact Material: The silver-plated copper alloy contacts offer superior conductivity, improving performance and minimizing electrical losses. The silver plating also offers excellent resistance to oxidation, ensuring consistent operation even in harsh environments.

Insulation Material: The PA66 insulation material is a flame-retardant polymer with a UL94-V0 rating, ensuring safety even in high-temperature applications. The PA66 also provides excellent mechanical strength and high resistance to chemicals, making it ideal for tough industrial environments.

Protection Rating: Rated IP67, this Bypass Panel Socket is fully dustproof and waterproof, protecting against both the elements and accidental submersion. Whether you’re in an outdoor construction zone or a high-pressure industrial facility, you can rely on the connector to maintain continuous, safe operation.

Shell Material: Made from waterproof, fiber-reinforced plastic, the housing of this socket is designed to handle external impacts, ensuring that it remains durable and functional under tough conditions. It also offers high toughness, meaning it’s resistant to cracking or damage even when exposed to mechanical stress.

Crown Springs: Both the crown springs are made of highly conductive copper to ensure excellent conductivity while also offering outstanding fatigue resistance. This is especially critical for high-cycle applications where the connector needs to maintain high performance over extended periods.

User-Friendly Design

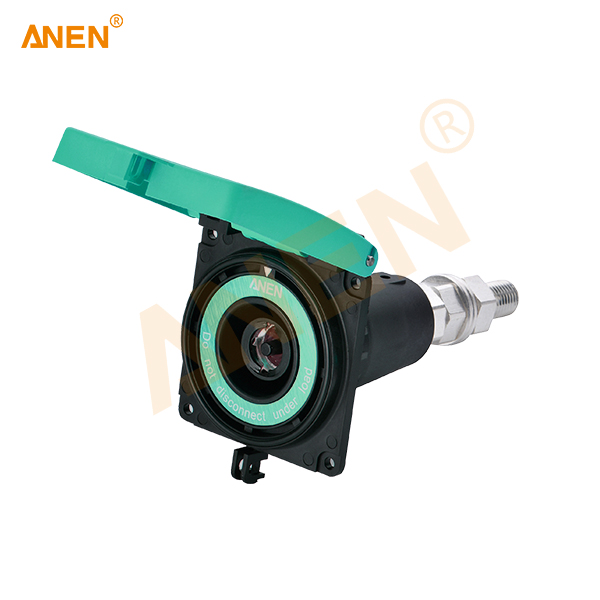

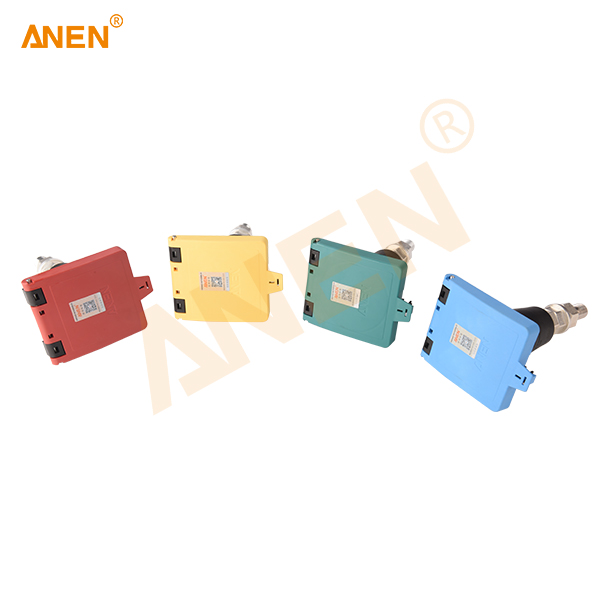

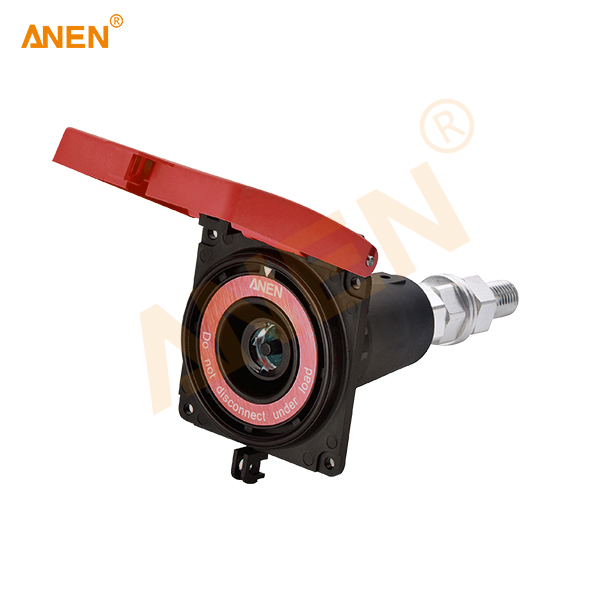

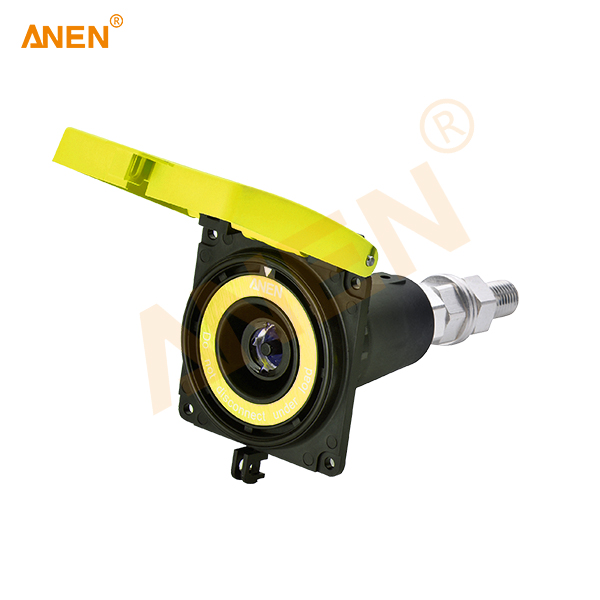

Color-Coded Silicone Rings: To minimize the risk of mis-insertion, the Bypass Panel Socket is equipped with brightly colored silicone rings (Blue, Yellow, Green, Red, Black). These color-coded rings make it easy to identify the correct placement, ensuring fast and safe connections every time.

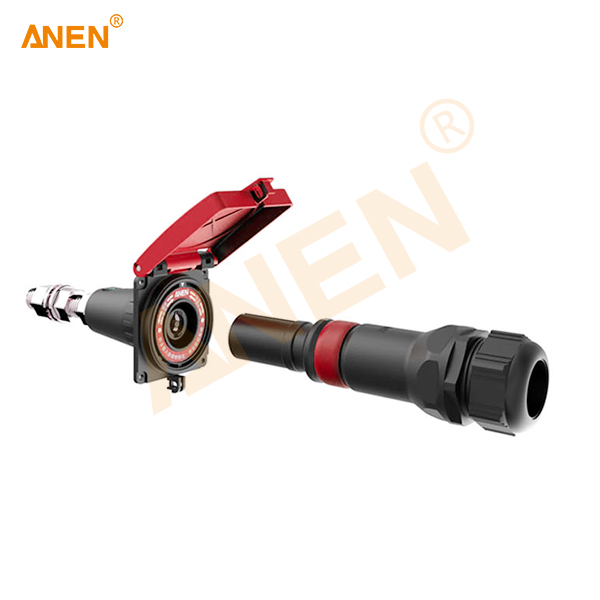

Ease of Use: Designed with a quick-connect mechanism, the Bypass Panel Socket allows for easy installation and removal without requiring additional tools. This feature is particularly useful in emergency situations, allowing teams to rapidly connect or disconnect circuits without compromising safety.

Versatile and Adaptable

This socket supports a broad range of applications across various industries and is designed to integrate seamlessly into bypass systems that require fast and secure connections.

Panel Socket Type

Frequently Asked Questions (FAQ)

A1:What is the current rating for the Bypass Panel Socket?

Q1:The Bypass Panel Socket is rated for 800A, which ensures it can handle heavy electrical loads efficiently.

A2:Can the socket be used in wet environments?

Q2:Yes, the IP67 rating ensures that the socket is waterproof and resistant to dust, making it perfect for outdoor and industrial environments.

A3:What is the maximum voltage the socket can handle?

Q3:This socket can handle up to 1000V, which is suitable for a wide range of applications, including high-voltage bypass systems.

A4:Is it suitable for emergency power generation systems?

Q4:Absolutely. The Bypass Panel Socket is designed to be used in emergency power systems, offering rapid and safe connections during switchboard and generator vehicle operations.

A5:Can I use this socket in low-voltage applications?

Q5:Yes, the socket is designed for low voltage electrical systems, making it ideal for industrial and utility applications.

A6:Do you offer customization options?

Q6:Yes, we offer a range of customizable options, including color coding for the silicone rings and other features to meet your specific needs.
