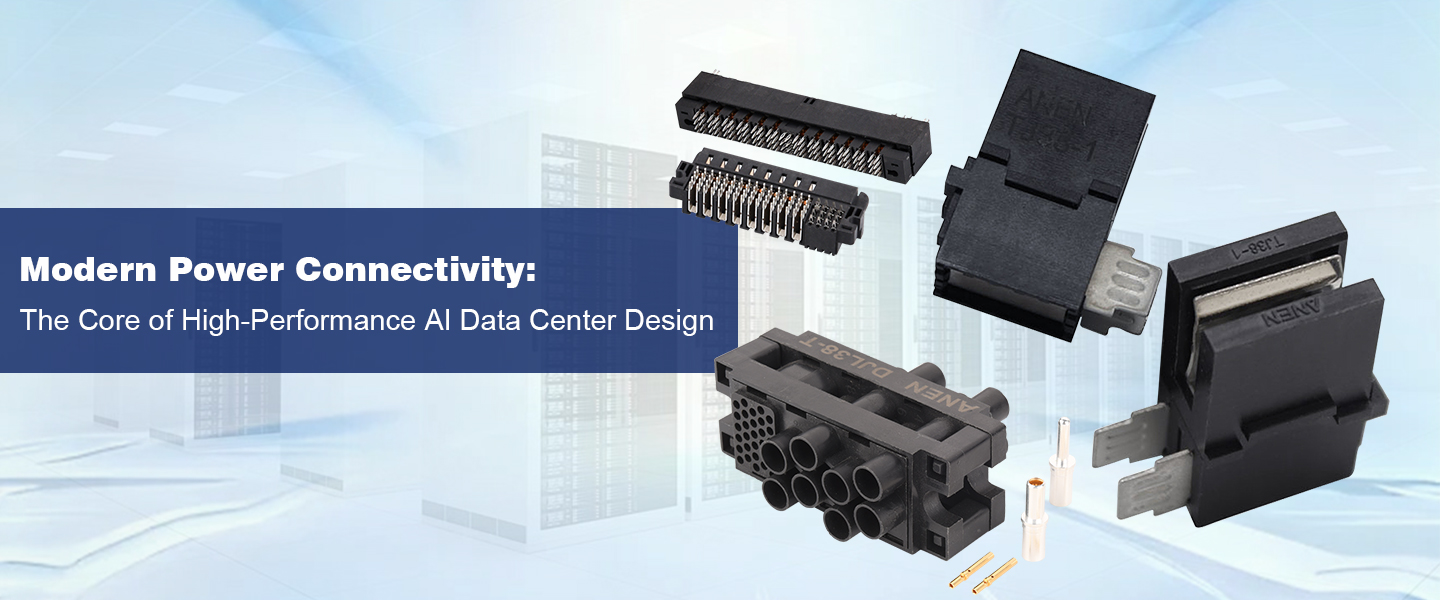

Modern Power Connectivity: The Core of High-Performance AI Data Center Design

The global push toward massive artificial intelligence models has fundamentally changed how we build and manage infrastructure. At ANEN, we see firsthand how the traditional "one-size-fits-all" approach to power is failing under the weight of high-density GPU clusters.

Every millisecond of uptime counts in an AI data center. Consequently, the hardware connecting your power source to your servers must be as intelligent and adaptable as the software running on them.

Modular architecture provides the only viable path forward for facilities aiming to stay competitive. By utilizing a high-quality modular connector, engineering teams can build systems that scale effortlessly.

This shift toward modularity isn't just about convenience; it's a strategic move to future-proof investments. Let’s dive into how these components are reshaping the industry.

Rethinking the AI Data Center Infrastructure for 2026

Modern computing loads generate heat and demand power at levels we couldn't have imagined a decade ago. A standard rack that once pulled 10kW now frequently requires 50kW or even 100kW to support AI training.

Such a massive jump in energy density forces a total rethink of data center power design. We can no longer rely on rigid, hard-wired systems that take weeks to install or modify.

Speed to market has become the primary metric for success. Deploying modular connectors throughout the facility allows for pre-fabricated components to be snapped together in hours rather than days.

Standardized interfaces create a plug-and-play environment. This agility allows operators to swap out faulty hardware or upgrade to the next generation of chips without a total overhaul.

High-Current Efficiency with the DJL Modular Connector

When we talk about high-density power, the DJL modular connector stands out as a workhorse for the industry. This series handles significant electrical loads while maintaining a remarkably small footprint.

Silver-plated copper contacts minimize resistance within the housing. Since resistance creates heat, using a high-efficiency modular connector directly contributes to the thermal health of the rack.

Technicians often struggle with cramped spaces behind dense server assemblies. The ergonomic design of the DJL modular connector allows for easy handling, even when wearing protective gear.

Security is another critical factor we addressed in this design. A positive-locking mechanism ensures that vibrations or accidental tugs won't cause a catastrophic power disconnect.

Board-Level Precision: The Role of the PCB Modular Connector

Moving from the rack level down to the individual server blade, connectivity becomes even more granular. The PCB modular connector bridges the gap between the main power rail and the sensitive electronics.

Modern GPUs require stable, ripple-free power to function at peak performance. Our board-mount solutions provide a low-impedance path that ensures consistent voltage delivery to the processor.

Space on a motherboard is arguably the most expensive real estate in the world. We designed the PCB modular connector to offer maximum current density without encroaching on vital trace paths.

Durability remains a top priority during our manufacturing process. These connectors withstand multiple mating cycles, making them ideal for modular server designs where blades are frequently swapped.

Navigating Modern Data Center Power Requirements

Meeting the skyrocketing data center power requirements of today involves more than just bringing more electricity into the building. It requires a sophisticated strategy for distribution and conversion.

Efficiency losses at the connector level might seem small, but across thousands of racks, they add up to millions of dollars in wasted energy. We focus on reducing "vampire" loads through better material science.

Current trends show a move toward higher DC voltages to reduce transmission losses. Our data center power solutions are evolving to meet these 400V and 800V standards safely.

Safety protocols must adapt alongside these rising voltages. Every modular connector we produce undergoes rigorous dielectric testing to ensure it can handle sudden surges without failure.

Stabilizing the Data Center Uninterruptible Power Supply

Reliability is the heartbeat of any mission-critical facility. The data center uninterruptible power system provides the bridge during utility outages, but it’s only as strong as its connections.

Modular battery strings rely on heavy-duty connectors to deliver instantaneous current when the grid fails. Any failure in this link results in a total system crash and potential data loss.

We provide specialized modular connectors specifically designed for the high-discharge rates found in UPS environments. These components must perform flawlessly after sitting idle for months.

Maintenance teams appreciate the ability to hot-swap battery modules during live operation. Using a standardized data center uninterruptible power connector interface makes this process safe and predictable.

Scaling Densities with TJ 38 Modular Connectors

In the world of ultra-high density, the TJ 38 modular connectors have become a favorite for engineers. These units combine power and signal pins into a single, compact housing.

Consolidating multiple connections into one interface reduces the complexity of the data center power system. Fewer cables mean better airflow and easier troubleshooting for on-site staff.

The TJ 38 modular connectors are built to survive the harsh environments of a hot-aisle containment system. High-temperature plastics ensure the housing doesn't degrade under constant thermal stress.

Engineers choose this series for its versatility in "blind-mate" applications. The self-aligning features allow connectors to find their home even when the technician cannot see the port.

Optimizing the Power Distribution Unit Data Center Layout

The power distribution unit data center environment is where the "magic" happens for energy management. Effective distribution requires a highly organized and modular approach.

Using a modular power distribution unit for data center applications gives managers the freedom to change outlet types on the fly. This flexibility is vital when hosting a diverse range of client hardware.

Poorly organized cabling in the data center power distribution unit leads to "spaghetti" racks. Our modular approach encourages structured patching that keeps the back of the rack clean.

Intelligent monitoring can be integrated directly into the connector assembly. This allows for real-time tracking of current draw at the individual outlet level, aiding in capacity planning.

Managing Data Center Power Cables and Whips

Clean cable management is often the difference between a successful audit and a maintenance nightmare. Handling data center power cables requires a disciplined, modular mindset.

Pre-terminated data center power whips eliminate the need for on-site cutting and crimping. This factory-controlled process ensures every connection meets the exact same quality standard.

Using high-quality data center power cables reduces the risk of electromagnetic interference with data lines. Proper shielding and high-grade insulation are standard features in our cabling kits.

Flexibility in the data center power supply chain allows for rapid reconfiguration. When a rack needs to move, modular whips can be disconnected and re-routed in a fraction of the time.

Why ANEN's Factory-Direct Model Wins

Partnering with ANEN means working directly with the source. We don't just sell modular connectors; we design and manufacture them in our own state-of-the-art facilities.

Our OEM and ODM services allow us to tailor products to your specific data center power design. If a standard part doesn't fit your unique rack layout, we will build one that does.

Quality assurance isn't just a department at ANEN; it’s our culture. Every data center power distribution unit component we sell carries the weight of international safety certifications.

After-sales support ensures that your project remains on track long after the initial purchase. Our technical team is ready to assist with everything from initial specs to on-site troubleshooting.

Application Scenarios for High-Density Connectors

Public cloud providers represent the largest users of our DJL modular connector series. These massive facilities require absolute consistency across hundreds of thousands of connection points.

Private enterprise data centers are also adopting modularity to handle their internal AI workloads. The ability to upgrade existing space without a full construction project is a huge advantage.

Edge computing sites benefit from the compact nature of the PCB modular connector. These small-scale deployments often face severe space constraints that demand efficient power routing.

Cryptocurrency mining operations utilize our TJ 38 modular connectors for their extreme power requirements. In these high-heat environments, the durability of the connector is tested to its limits.

Expert Suggestions for Data Center Power Distribution

Plan for 20% more capacity than you currently need. AI workloads have a habit of growing faster than predicted, and your data center power system should be ready.

Prioritize "touch-safe" designs for all your modular connectors. Protecting your human assets is just as important as protecting your digital ones.

Implement a color-coding system for your data center power whips. Visual cues prevent technicians from accidentally unplugging the wrong circuit during a high-pressure maintenance window.

Invest in the highest quality materials for your data center power distribution network. Saving a few dollars on connectors often leads to massive losses in PUE and reliability over time.

Frequently Asked Questions (FAQ)

Q:Why should we switch from hard-wired systems to modular connectors?

A:Modular systems offer significantly faster deployment and easier maintenance. They allow you to swap components without shutting down entire rows, which is essential for 24/7 operations.

Q:How does the PCB modular connector handle thermal stress on a motherboard?

A:We use high-grade thermal plastics and precision-engineered metal alloys. These materials maintain their structural integrity even when the surrounding GPU components reach high temperatures.

Q:Can ANEN customize a modular connector for a specific rack design?

A:Absolutely. We specialize in OEM/ODM projects where we modify dimensions, pin counts, or materials to meet the specific needs of your data center power supply layout.

Q:What is the difference between the DJL and TJ 38 series?

A:The DJL series is optimized for pure high-current power delivery. The TJ 38 modular connectors are designed for high-density applications that require both power and signal paths in one unit.

Q:How do modular connectors impact the PUE of an AI data center?

A:By reducing contact resistance and improving airflow through better cable management, modular connectors help lower the energy required for both power delivery and cooling.

Q:Are your data center power cables compliant with international fire codes?

A:Yes, all our data center power cables use flame-retardant materials that meet or exceed global safety standards like UL94-V0.

Q:What kind of after-sales support does ANEN provide for data center power solutions?

A:We provide full technical documentation, installation guidance, and a dedicated support team to handle any issues that arise during the lifecycle of the product.

Q:How does the power distribution unit data center handle different global plug standards?

A:Our modular PDU designs allow you to swap out the connector plates. This makes it easy to adapt the same core unit for use in North America, Europe, or Asia.

Modern infrastructure demands a partner that understands the nuances of high-current delivery. At ANEN, we are committed to providing the modular connector technology that keeps the world’s most advanced AI models running smoothly. Reach out to us to learn how we can optimize your next project
