Why AI Data Centers Need Fan Panels for Server Rack Cooling

As AI data center workloads become more demanding, power density inside the server room continues to rise. High-performance GPUs, CPUs, accelerators, and networking equipment consume enormous amounts of electrical power. Almost all of that electricity eventually becomes heat.

For data center operators, this creates a fundamental challenge: how do you remove heat from a high-density server rack quickly enough to keep equipment operating reliably?

Traditional room-level air conditioning alone may not provide sufficient airflow for today's high-density computing environments. Even when the overall room temperature looks acceptable, individual racks can develop hot spots because servers generate heat faster than the surrounding airflow can remove it.

This is where fan panels can play an important role.

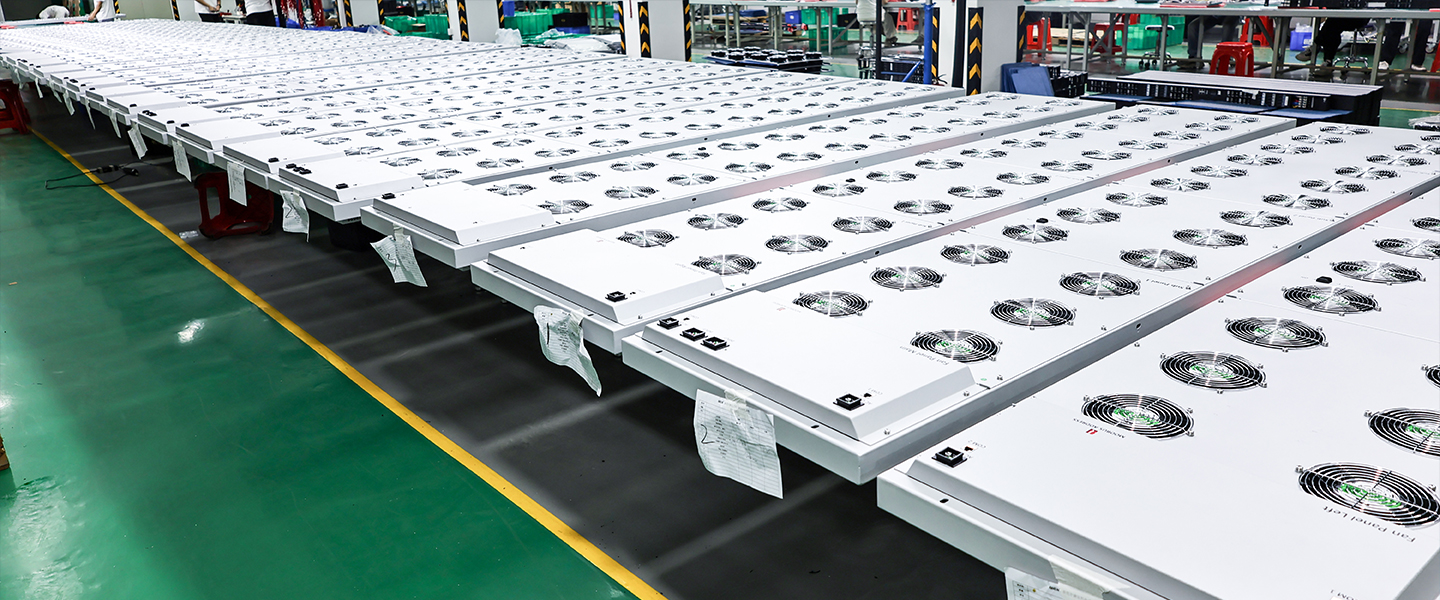

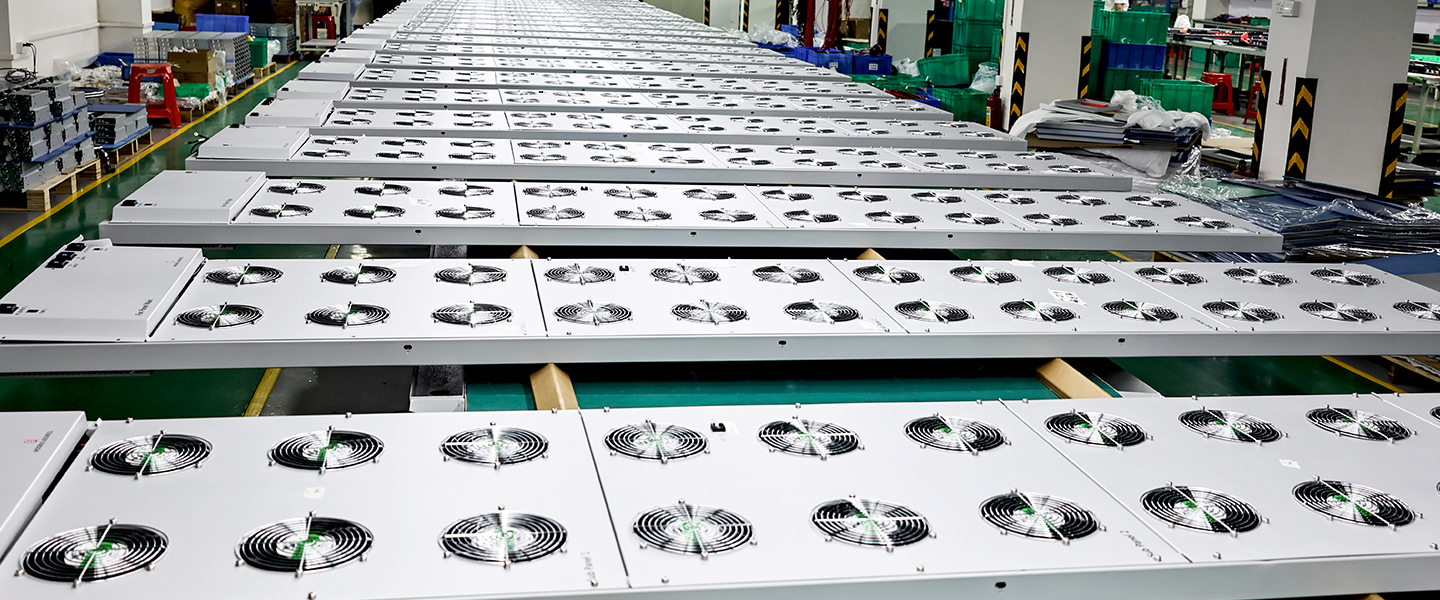

A rack-mounted fan panel provides additional airflow where it matters most. By improving air movement around high-density equipment, fan panels can help reduce hot spots, support more stable server temperatures, and improve the overall effectiveness of a data center cooling strategy.

However, fan panels are not simply "extra fans." Their value depends on how they fit into the complete data center power system, cooling architecture, rack layout, and airflow management strategy.

This article explains why fan panels are increasingly relevant to AI data centers, how they work, when they make sense, and how cooling requirements connect with data center power distribution.

Why AI Data Center Server Racks Generate So Much Heat

The first step in understanding fan panels is understanding where the heat comes from.

Every server consumes electrical energy. Processors, memory modules, storage devices, voltage regulators, network cards, power supplies, and cooling fans all contribute to the total electrical load.

In a conventional enterprise rack, the power density may remain relatively moderate. AI computing changes that equation.

High-performance GPUs increase rack power density

AI servers often rely on multiple GPUs or other accelerators operating simultaneously. These devices perform intensive calculations for extended periods, especially during model training, inference, simulation, and other compute-heavy workloads.

A conventional server might consume a few hundred watts. A high-performance GPU server can consume several kilowatts depending on its configuration.

When multiple high-power servers occupy a single server rack, the total rack load can quickly reach tens of kilowatts.

Some next-generation high-density AI racks push far beyond traditional rack power levels.

That creates two connected problems:

1. The rack requires significantly more data center power supply capacity.

2. The rack generates significantly more heat.

3. Power and cooling therefore need to be considered together rather than as two independent systems.

More electrical power means more heat

From a cooling perspective, nearly every watt consumed by IT equipment eventually becomes heat.

For example, a rack consuming 30 kW of electrical power produces roughly 30 kW of heat that the facility needs to remove.

As rack power rises, the cooling system must move larger quantities of air or liquid through the thermal path.

This is why modern data center power requirements and cooling requirements increasingly influence each other.

How Fan Panels Improve Server Rack Airflow

A fan panel provides additional mechanical airflow within or around a rack.

The basic principle is straightforward: move more air through the thermal path so that hot air does not remain trapped around heat-producing equipment.

Improving airflow through high-density equipment

Servers already contain internal fans. Those fans pull cooling air through the chassis and exhaust warmer air.

However, the server's internal airflow does not exist in isolation.

Rack doors, cable bundles, blanking panels, neighboring equipment, floor tiles, containment systems, and other physical obstacles can affect the airflow path.

A fan panel can supplement the existing airflow and help maintain a more consistent movement of air.

The goal is not simply to increase fan speed.

The real objective is to establish a predictable airflow path from the cool-air supply to the server intake and then from the server exhaust to the cooling return.

Reducing localized hot spots

A data center can maintain an acceptable average room temperature while individual racks still experience thermal problems.

That situation often occurs when high-density equipment generates heat faster than the surrounding airflow can carry it away.

Fan panels can provide targeted airflow assistance around these problem areas.

This approach can be particularly useful when only a portion of the data center contains high-density AI equipment.

How Data Center Power Distribution and Cooling Work Together

Cooling equipment consumes electricity too.

This connection is sometimes overlooked during early rack planning.

A complete data center power distribution strategy must account for both IT loads and supporting infrastructure.

Cooling systems are electrical loads

Depending on the facility architecture, the electrical system may supply:

• Server power supplies

• Rack PDUs

• Fan panels

• CRAH or CRAC units

• Pumps

• Cooling towers

• Chillers

• Rear-door heat exchangers

• Coolant distribution units

• Monitoring equipment

• Building management systems

Consequently, increasing computing density can increase both IT power consumption and cooling-system power consumption.

A well-designed data center power system needs sufficient capacity, redundancy, protection, and monitoring to support these loads.

Where the PDU fits

The pdu, or power distribution unit, serves as an important connection point between the upstream electrical infrastructure and rack-level equipment.

A rack power distribution unit data center application may distribute power to servers, networking equipment, and other rack-mounted loads.

For higher-density environments, a Smart PDU for AI data centers‍ can also provide visibility into electrical parameters such as voltage, current, power, energy consumption, and power factor.

That information becomes valuable when operators need to understand the relationship between rack power consumption and cooling performance.

Why Power Distribution Unit Data Center Design Matters for Fan Panels

Fan panels may appear to be simple cooling accessories, but their electrical requirements still need proper consideration.

A poorly planned power connection can create unnecessary maintenance problems or introduce additional points of failure.

Fan panels need reliable power

A fan panel depends on electrical power to operate its fans.

The connection method depends on the specific equipment and facility design. Some systems connect through standard AC receptacles, while others use dedicated power connections.

The important question is not simply whether power is available.

Engineers need to determine whether the power source provides the appropriate:

• Voltage

• Current capacity

• Circuit protection

• Connector type

• Cable size

• Grounding

• Redundancy

• Environmental rating

These factors should align with the overall data center power supply architecture.

Rack-level power planning

When designing a high-density rack, engineers should consider the total electrical load rather than looking at the servers alone.

A basic rack load calculation might include:

Server load + networking load + storage load + fan-panel load + auxiliary equipment = total rack load

That total then feeds into the selection of the rack PDU, upstream distribution, circuit protection, and data center power cables.

How Server Rack Airflow Management Supports AI Computing

Airflow management has become more important as rack density increases.

A high-density rack cannot rely solely on the assumption that "the room is cold enough."

The cooling air needs to reach the equipment efficiently.

Cold aisle and hot aisle arrangement

Traditional data centers often separate equipment intake and exhaust directions into cold aisles and hot aisles.

Servers draw cooler air from the cold aisle.

They exhaust warmer air toward the hot aisle.

This arrangement reduces the mixing of supply and exhaust air and improves cooling efficiency.

However, high-density AI racks can challenge this arrangement because their heat output may exceed the airflow capacity of the surrounding infrastructure.

Containment improves airflow efficiency

Cold-aisle or hot-aisle containment can further improve airflow management.

Containment limits the mixing of cool supply air and hot exhaust air.

Fan panels can complement this approach when a particular rack needs additional airflow support.

The key is to treat the rack, containment system, cooling equipment, and airflow path as one system.

Why AI Data Center Cooling Cannot Rely on Room Temperature Alone

Room temperature is useful, but it does not tell the entire story.

Two racks in the same room can experience very different thermal conditions.

One rack might receive a strong supply of cool air.

Another might sit near a return-air path or experience airflow obstruction from poorly managed cabling.

Rack inlet temperature matters

For server reliability, engineers need to pay attention to the temperature of the air actually entering the equipment.

A rack may experience a higher inlet temperature even when the room's average temperature remains within the facility's target range.

This distinction becomes especially important for GPU-intensive systems.

High-performance processors continuously generate substantial heat during heavy workloads.

Maintaining stable inlet conditions helps the server's internal cooling system operate within its intended range.

Airflow quantity matters too

Temperature and airflow are closely connected.

If airflow is insufficient, increasing the cooling capacity elsewhere in the room may not solve the problem.

The cooling air still needs a path through the rack.

Fan panels can help increase airflow where the existing airflow distribution cannot keep up with the rack's heat output.

Data Center Power Solutions for High-Density Cooling Infrastructure

A modern facility needs more than individual components.

The electrical architecture should support the complete operating environment.

That includes the server load, cooling load, protection system, monitoring system, and future expansion.

Coordinating upstream and rack-level power

A typical electrical path may involve:

Utility power → switchgear → UPS → distribution equipment → rack PDU → server and auxiliary loads

The exact architecture varies by facility.

However, the design principle remains the same: each layer must provide sufficient capacity and protection for the equipment downstream.

Data center uninterruptible power

For critical IT environments, data center uninterruptible power provides continuity during utility disturbances.

UPS systems typically support critical loads such as servers and networking equipment.

Whether fan panels should connect to the UPS-backed circuit depends on their role and the facility's availability strategy.

If a fan panel is essential to maintaining safe operating temperatures for critical equipment, engineers may consider its power source as part of the overall resilience strategy.

This decision requires careful load and failure-mode analysis.

Choosing Data Center Power Cables and Power Whips for Rack Applications

Electrical connections become increasingly important as rack power density rises.

A high-current server rack requires appropriately sized conductors, connectors, and protection devices.

Selecting data center power cables

Data center power cables should match the intended voltage, current, temperature, installation environment, and connector configuration.

Cable selection should also account for:

• Conductor size

• Insulation type

• Temperature rating

• Voltage rating

• Flexibility

• Certification

• Connector compatibility

• Installation method

Using an undersized cable can increase voltage drop and temperature rise.

For high-density racks, engineers should therefore treat cable selection as part of the complete data center power distribution unit design.

Data center power whips

Data center power whips provide a practical way to connect rack equipment to electrical distribution infrastructure.

Depending on the application, a power whip may combine a cable assembly with specific plugs or connectors required by the rack PDU.

For large-scale deployments, standardized cable assemblies can simplify installation and maintenance.

They also help procurement teams establish consistent specifications across multiple racks.

The Role of the Data Center Power Connector and IEC Plug

Connectors are small components, but they have a major impact on rack-level power reliability.

A high-power system needs connectors that match the electrical and mechanical requirements of the installation.

Data center power connectors

A data center power connector should be selected according to current rating, voltage rating, environmental requirements, mating cycles, locking requirements, and applicable certifications.

For high-density applications, mechanical security also matters.

An accidental disconnection can interrupt equipment operation and potentially affect an entire rack.

IEC Plug applications

An IEC Plug remains common in data center environments because IEC connector systems provide standardized interfaces for many IT power applications.

Common IEC configurations include C13/C14 and C19/C20 families, with higher-current connector options available for specific applications.

The connector should always match the PDU outlet, equipment inlet, cable rating, and circuit capacity.

How Switchgear Supports the Data Center Power System

Rack-level cooling and power distribution ultimately depend on upstream electrical infrastructure.

Switchgear plays an important role in controlling, protecting, and isolating electrical circuits.

For large data centers, switchgear may support multiple distribution paths and provide protection against electrical faults.

Protection becomes more important as power density rises

High-density AI environments place greater demands on electrical infrastructure.

Higher available fault currents, larger feeders, and higher rack loads require careful coordination between upstream protection and downstream circuits.

The electrical design should therefore consider the entire chain:

Switchgear → distribution → circuit protection → PDU → power cables → connectors → servers

Each component needs to work within its rated operating conditions.

Reliability requires coordinated design

No single component can compensate for an inadequate electrical architecture.

A high-quality PDU cannot fix an undersized upstream feeder.

Likewise, a properly rated cable cannot compensate for inappropriate circuit protection.

Reliable data center power distribution depends on coordination across the complete system.

When Fan Panels Make Sense in an AI Data Center

Fan panels are not necessary for every rack.

Their value depends on rack density, cooling architecture, airflow distribution, and facility constraints.

Fan panels are particularly useful when:

• Rack power density is increasing

• GPU servers create localized hot spots

• Existing room cooling cannot deliver sufficient airflow

• Air-cooled equipment remains in a liquid-cooled environment

• Only selected racks require additional cooling support

• Operators need a targeted rather than room-wide solution

• Rack airflow needs to be improved without major infrastructure changes

For moderate-density equipment, standard server fans and well-designed room airflow may be sufficient.

As rack density increases, supplemental airflow management becomes more valuable.

When Fan Panels Are Not Enough for High-Density AI Racks

There is a limit to what air can accomplish.

As thermal loads rise, moving enough air through a rack becomes increasingly difficult.

Liquid cooling changes the equation

Liquid has a much greater capacity to transport heat than air.

For extremely high-density AI computing, facilities increasingly evaluate technologies such as:

• Direct-to-chip liquid cooling

• Rear-door heat exchangers

• Immersion cooling

• Coolant distribution units

• In-row cooling

These technologies can remove large quantities of heat closer to the source.

Fan panels still have a role in some liquid-cooled environments, particularly for components that remain air-cooled.

However, they should not be treated as a substitute for a properly engineered liquid-cooling system when rack density exceeds practical air-cooling limits.

How to Integrate PDU, Cooling, and Rack Power Planning

The strongest approach is to design electrical and thermal infrastructure together.

Instead of asking, "Which PDU do we need?" engineers should first understand the complete rack.

Start with the total rack load

Calculate the expected power consumption of:

• GPUs

• CPUs

• Servers

• Network switches

• Storage

• Fan panels

• Cooling accessories

• Other auxiliary devices

Then determine the expected normal operating load and potential peak load.

Consider future Data Center Power Requirements

AI server technology is evolving quickly.

A rack designed for today's workload may need to support significantly higher power consumption in the future.

Leaving appropriate electrical and cooling capacity for expansion can reduce the cost and disruption associated with future upgrades.

Use smart monitoring where appropriate

A smart power distribution unit can provide rack-level electrical visibility.

Monitoring voltage, current, power, energy consumption, and power factor helps operators understand how racks behave under different workloads.

When combined with environmental monitoring, electrical and thermal data can provide a clearer picture of rack performance.

Building a Reliable Data Center Power System for AI Workloads

Cooling is only one part of a high-density data center.

The complete infrastructure must support computing, power delivery, protection, cooling, monitoring, and maintenance.

A robust data center power system typically requires coordination among:

• Utility power

• Generators

• UPS systems

• Switchgear

• Distribution panels

• PDUs

• Circuit breakers

• Power cables

• Connectors

• Cooling systems

• Monitoring systems

This integrated approach helps operators avoid designing one subsystem in isolation.

Reliability starts at the rack

Even a sophisticated facility ultimately delivers power to individual servers.

The final connection includes the PDU, cable assembly, connector, server power supply, and associated cooling infrastructure.

For this reason, rack-level engineering deserves the same attention as the upstream electrical system.

Frequently Asked Questions About Fan Panels in AI Data Centers

Q:Why do AI data centers need fan panels?

A:AI servers generate significantly more heat than many conventional server configurations. Fan panels provide additional airflow to help remove heat, reduce localized hot spots, and maintain stable rack inlet conditions.

Q:Are fan panels necessary for every server rack?

A:No. Their necessity depends on rack power density, cooling capacity, airflow design, and equipment configuration. A well-designed conventional rack may not require supplemental fan panels.

Q: Can fan panels replace CRAC or CRAH systems?

A:No. Fan panels provide localized airflow assistance. They do not replace the facility's primary cooling infrastructure.

Q:Can fan panels replace liquid cooling?

A:Generally, no. Extremely high-density AI racks may require direct-to-chip liquid cooling or other advanced thermal-management technologies. Fan panels can still support air-cooled components within those environments.

Q:Do fan panels consume data center power?

A:Yes. Their fans require electrical power, so their consumption should be included in the rack's total electrical load calculation.

Q:Should fan panels connect to a PDU?

A:Depending on the design, fan panels may connect to a rack pdu or another appropriate electrical circuit. Engineers should verify voltage, current, circuit protection, connector type, and redundancy requirements before selecting the connection method.

Q:What is the relationship between cooling and PDU design?

A:Higher server power creates higher heat output. As rack power increases, cooling requirements also increase. Therefore, data center power distribution and cooling infrastructure should be designed together.

Q:Why is airflow management important for GPU servers?

A:GPU servers can generate substantial heat during sustained workloads. Insufficient airflow can increase component temperatures and potentially cause thermal throttling or reduce system performance.

Q:What role does a smart PDU play in an AI data center?

A:smart power distribution unit can provide visibility into rack-level electrical conditions, including current, voltage, power, and energy consumption. This information supports capacity planning and operational monitoring.

Q:What should engineers consider when selecting power cables for AI racks?

A:Engineers should evaluate current rating, voltage rating, conductor size, temperature rating, connector compatibility, certification, flexibility, installation conditions, and future rack capacity.

Conclusion: Fan Panels Are Part of a Larger AI Data Center Strategy

The rapid growth of AI computing is changing the way data centers approach both power and cooling.

High-performance GPU servers concentrate substantial electrical consumption and heat inside individual racks. As a result, traditional room-level cooling strategies may not always provide enough airflow where it is needed.

Fan panels offer a practical way to improve rack-level airflow, reduce localized hot spots, and support stable operating temperatures.

Their effectiveness, however, depends on the surrounding infrastructure.

A successful high-density deployment requires coordination between the AI data center, server rack, cooling system, pdu, smart power distribution unit, data center power distribution unit, cables, connectors, UPS, and switchgear.

At the electrical level, the complete data center power system must provide sufficient capacity, protection, monitoring, and redundancy. At the thermal level, airflow must move efficiently from the cooling source through the server and back to the cooling system.

For moderate-density racks, fan panels can provide valuable supplemental airflow. For extremely high-density AI systems, they may need to work alongside liquid cooling and other advanced technologies.

The key principle is simple: power and cooling must be designed as one system.

As AI rack densities continue to rise, organizations that plan electrical distribution, rack-level cooling, data center power cables, data center power whips, and thermal management together will be better prepared for the next generation of computing infrastructure.
