AI Data Center Infrastructure: Power, Cooling and Distribution

As AI workloads become more demanding, the biggest challenge for modern data centers is no longer simply adding more servers. The real challenge is delivering enough power, removing the resulting heat, and keeping every part of the electrical system reliable as rack densities continue to rise.

Global data center electricity consumption is projected to reach 565 TWh in 2026, up 26% from 2025. Gartner also expects worldwide data center power demand to reach 132 GW this year. AI-optimized servers alone are expected to account for 31% of total data center power consumption in 2026.

These numbers explain why AI data center infrastructure has become a major engineering priority. Power availability, electrical distribution, cooling capacity, grid connections, and equipment reliability now influence data center design from the earliest planning stages.

At the rack level, the same trend is just as visible. A conventional server rack may operate at relatively modest power levels, while high-density AI infrastructure can require hundreds of kilowatts per rack. Industry roadmaps are already looking toward rack-level power approaching or exceeding 1 MW.

That shift changes almost everything: the data center power supply, data center power distribution, cooling architecture, cabling, protection equipment, and monitoring strategy.

This article brings these developments together and explains how the next generation of data center power solutions is evolving around high-density computing.

AI Data Center Power Requirements Are Reshaping Infrastructure

The first step in understanding modern infrastructure is to look at the changing data center power requirements.

Traditional enterprise data centers were designed around relatively predictable loads. General-purpose servers, storage systems, networking equipment, and conventional cooling systems produced a manageable and relatively stable electrical profile.

AI computing is different.

GPU-intensive workloads can concentrate enormous amounts of electrical power into a small physical footprint. A cluster of high-performance accelerators may consume more power than an entire group of conventional server racks.

That creates two related problems.

First, the facility needs enough total generation and utility capacity. Second, the electrical system must deliver that power efficiently and reliably all the way from the utility connection to individual computing equipment.

From server power to rack power

The industry is moving from thinking primarily about server consumption toward thinking about rack and row power.

For example, a conventional enterprise rack might operate at a relatively low power density. High-performance computing and AI clusters can move into the tens or hundreds of kilowatts per rack, while emerging architectures target much higher densities.

This concentration changes the economics of the entire facility.

A larger electrical load requires larger transformers, switchgear, busways, protection systems, conductors, connectors, and backup systems. Cooling capacity must increase at the same time because almost all electrical energy consumed by computing equipment ultimately becomes heat.

Consequently, power and cooling can no longer be designed as independent systems.

Why power availability has become a strategic issue

The problem extends beyond the data hall.

Across the United States, utilities and regulators are dealing with an unprecedented volume of proposed data center load. Texas recently paused new data center grid connections while investigating more than 700 GW of claimed demand, highlighting concerns over speculative or unrealistic projects.

PJM, meanwhile, faces capacity-market pressure as data center demand grows. Its 2028/29 capacity auction fell short by 6.8 GW, illustrating the difficulty of matching new large loads with generation and transmission investment.

For developers, this means that access to electricity can become just as important as land availability.

A site with sufficient acreage but no realistic path to hundreds of megawatts of reliable power may not be commercially viable.

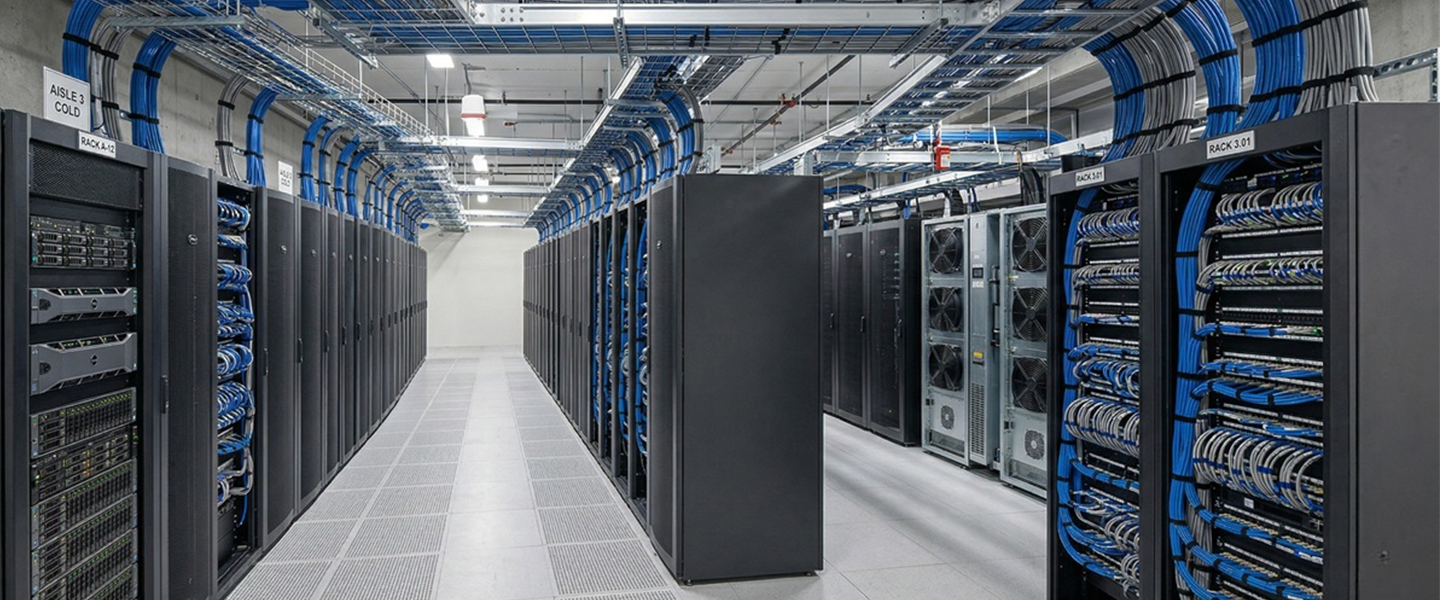

Data Center Power Distribution Must Scale With AI Rack Density

Once sufficient utility capacity exists, the next challenge is moving electricity through the facility.

This is where data center power distribution becomes critical.

A modern electrical path may include utility service, medium-voltage switchgear, transformers, UPS systems, distribution equipment, busways, PDUs, branch circuits, connectors, power cables, and rack-level power supplies.

Each stage introduces electrical losses, protection requirements, maintenance considerations, and potential failure points.

The role of switchgear in data center power systems

Data Center Switchgear forms a critical part of the upstream electrical infrastructure.

It controls, protects, isolates, and distributes electrical power throughout the facility. As data centers become larger, medium-voltage and low-voltage switchgear must accommodate higher loads while maintaining coordination and fault protection.

Protection settings also become more important as power levels increase.

A fault on a high-capacity distribution system can produce substantial energy. Engineers therefore need appropriate interrupting ratings, selective coordination, isolation capabilities, and monitoring.

Why distribution architecture matters

Higher rack densities place pressure on conventional low-voltage distribution.

Delivering a large amount of power at relatively low voltage requires higher current. Higher current means larger conductors, greater copper requirements, increased voltage drop, and more thermal management challenges.

Higher-voltage architectures can reduce current for the same power level.

That principle helps explain the industry's growing interest in 800 VDC architectures. NVIDIA, Google, Microsoft, and other industry participants are working through the Open Compute Project to establish an 800 VDC approach for next-generation AI infrastructure.

The transition will not happen overnight. Existing facilities still rely heavily on AC infrastructure, so hybrid architectures will remain important during the transition.

Power Distribution Unit Data Center Systems Are Moving Toward Smarter Monitoring

At the rack level, the power distribution unit data center architecture plays a central role.

A PDU receives electrical power from an upstream source and distributes it to multiple IT loads. In conventional facilities, a basic PDU may primarily provide physical distribution and circuit protection.

High-density AI environments require more information.

A smart power distribution unit can monitor electrical parameters such as voltage, current, power, power factor, and energy consumption. Network connectivity can also allow operators to collect information remotely and integrate PDU data with broader facility management systems.

Why the PDU remains important

The PDU sits close to the actual IT load.

That position gives it visibility into rack-level electrical behavior. If a rack begins drawing more power than expected, operators can identify the change before it becomes a larger operational problem.

For high-density deployments, rack-level monitoring can support:

• Load balancing

• Capacity planning

• Energy measurement

• Alarm management

• Remote troubleshooting

• Circuit-level visibility

• Preventive maintenance

• Power utilization analysis

The PDU therefore becomes more than a collection of outlets.

It becomes an important measurement and control point within the data center power system.

Why a 3-phase PDU matters

Three-phase distribution becomes increasingly attractive as rack power increases.

A 3-phase PDU can distribute substantial power while making more efficient use of electrical infrastructure than many equivalent single-phase arrangements.

Three-phase systems can also support balanced loading across phases when properly engineered.

For high-density racks, however, simply selecting a larger PDU is not enough. Engineers must evaluate the complete electrical path, including upstream breakers, conductors, connectors, branch circuits, thermal conditions, and equipment ratings.

Data Center Power Distribution Unit Architecture Is Evolving Beyond Traditional AC

The conventional AC architecture has served the industry well for decades. However, AI infrastructure is pushing engineers to reconsider where AC-to-DC conversion should occur.

Today, several conversion stages may exist between utility power and the low-voltage DC power consumed by computing electronics.

Every conversion introduces losses and additional equipment.

As rack power increases, those losses become more significant.

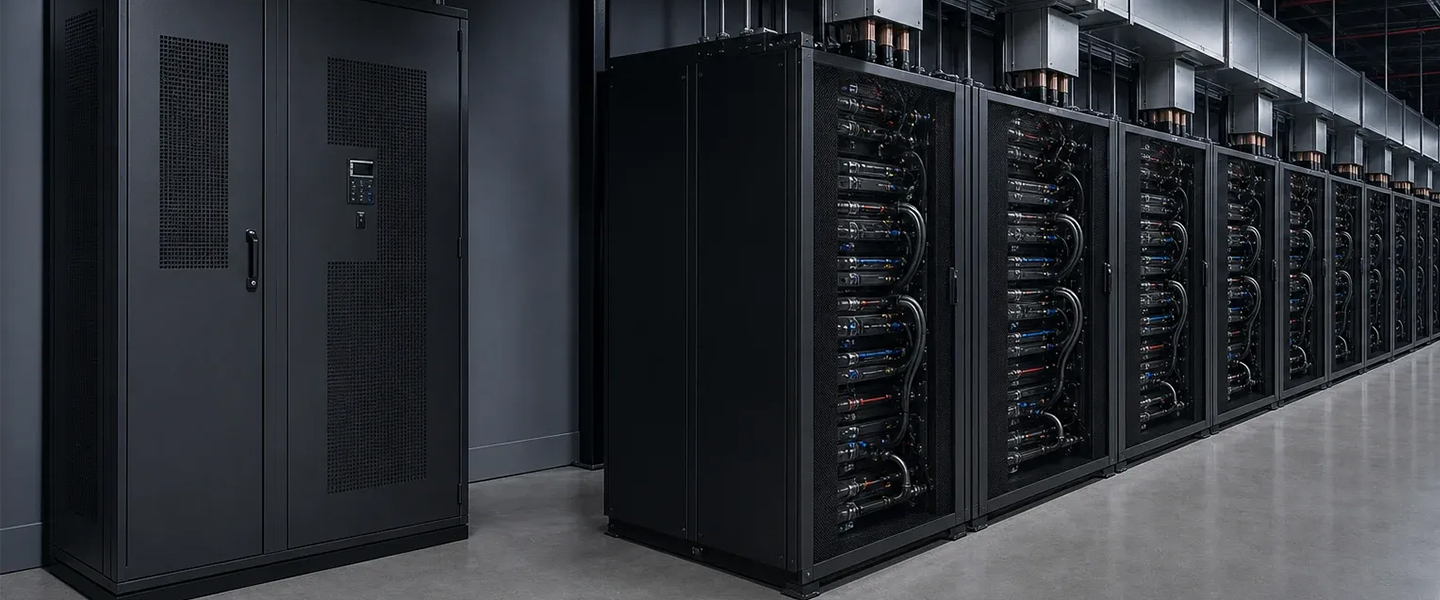

Why 800 VDC is attracting attention

The 800 VDC approach moves more of the power distribution chain into DC.

NVIDIA describes 800 VDC as a way to reduce conversion stages and support the power density required by next-generation AI factories. Its current roadmap includes hybrid approaches that can connect new high-density power architecture to existing AC infrastructure.

Schneider Electric similarly identifies 800 VDC as an emerging architecture for racks approaching 400 kW and beyond.

The attraction is straightforward: for a given power level, higher voltage means lower current.

Lower current can reduce conductor requirements and distribution losses. It can also make very high rack power more practical from a physical infrastructure perspective.

What changes with higher-voltage distribution

The transition also introduces new engineering requirements.

Protection equipment must support the relevant DC voltage and fault characteristics. Connectors require appropriate ratings. Insulation coordination becomes increasingly important, while maintenance procedures must account for DC-specific safety considerations.

This is why the transition involves much more than replacing an AC PDU with a DC device.

The entire power distribution unit data center ecosystem must evolve together.

Data Center Power Cables, Power Whips and Connectors Need to Handle Higher Loads

Electrical infrastructure ultimately depends on physical connections.

Transformers and switchgear may provide the required capacity, but the power still needs to reach the server rack. That makes data center power cables, connectors, busways, and data center power whips essential components of the overall system.

The importance of rack-level cabling

Rack power cables need to match the electrical characteristics of the application.

Engineers must consider:

• Voltage

• Current

• Conductor size

• Temperature rating

• Insulation

• Connector configuration

• Installation environment

• Flexibility requirements

• Certification requirements

• Mechanical strain

• Locking and retention requirements

As rack density increases, cable management also becomes more challenging.

Large quantities of high-current cables can consume valuable rack and underfloor space. Poor routing can restrict airflow or interfere with maintenance access.

Why the data center power connector matters

A data center power connector provides the physical interface between electrical distribution equipment and the load.

Connector selection should consider electrical rating, mechanical durability, contact reliability, temperature, environmental conditions, and applicable standards.

For international deployments, an IEC Plug or other standardized connector configuration can simplify equipment integration and procurement.

The connector also needs to match the complete system. A high-current connector cannot compensate for an undersized cable or an incorrectly rated upstream protection device.

Power whips and flexible distribution

Data center power whips provide a practical way to connect distribution systems to racks and other equipment.

They can simplify installation, particularly when rack layouts change during construction or expansion.

For modular data center environments, preassembled cable solutions can also reduce field wiring requirements and help maintain consistency across repeated rack deployments.

The key principle is simple: every component in the power path must be engineered as part of one system.

Data Center Uninterruptible Power Is Becoming More Demanding

Reliable computing requires more than normal utility power.

A modern data center uninterruptible power architecture must protect critical IT equipment against outages, voltage disturbances, switching events, and other electrical problems.

UPS systems remain central to this requirement.

However, increasing rack density changes the challenge.

Higher loads mean larger backup requirements

A facility supporting hundreds of megawatts of AI computing cannot treat backup power as an afterthought.

UPS systems, batteries, generators, switchgear, and distribution equipment must work together to maintain continuity during disturbances.

At the rack level, the electrical architecture also needs appropriate redundancy.

Depending on the facility design, servers may receive power from separate electrical paths. Dual-corded equipment can connect to independent PDUs or distribution paths, reducing the impact of a single upstream failure.

Battery systems are becoming part of the broader architecture

Battery energy storage is also gaining attention beyond traditional UPS applications.

Energy storage can support short-duration backup, peak management, grid services, and integration with on-site generation.

As AI data centers place larger and more dynamic loads on electrical grids, energy storage may become increasingly important for both reliability and power management.

The result is a broader data center power system that combines utility service, generation, UPS, batteries, distribution, monitoring, and intelligent controls.

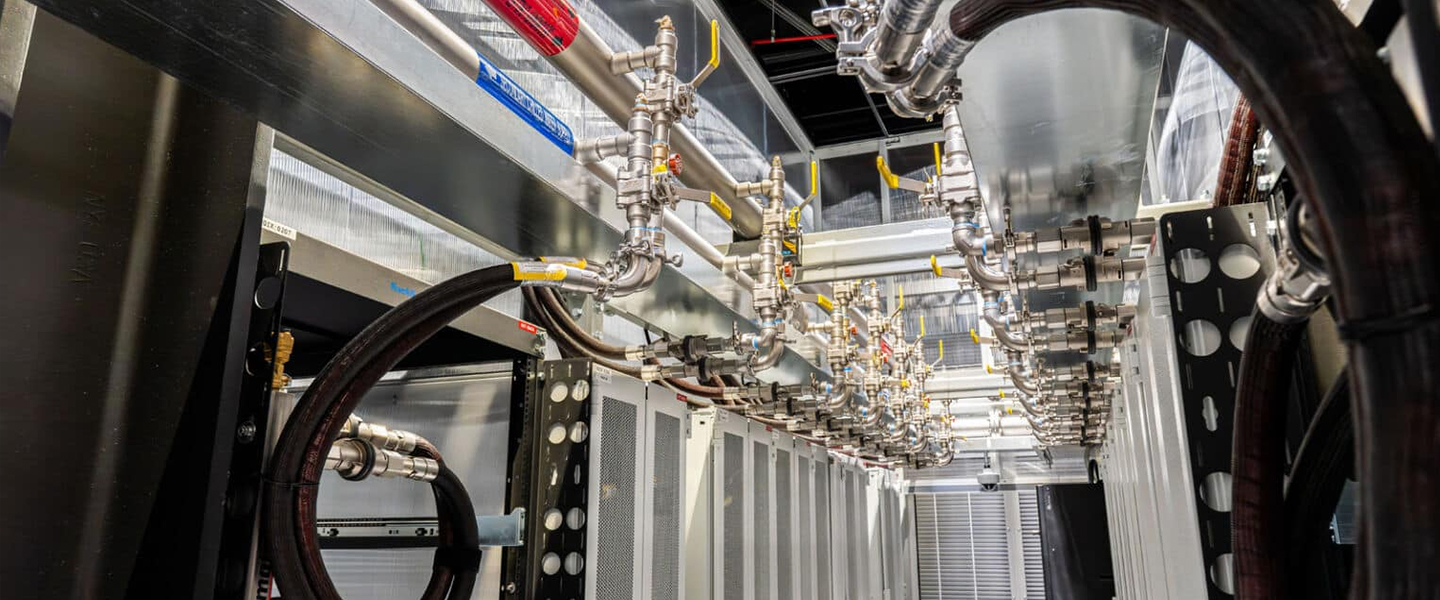

AI Data Center Liquid Cooling Must Evolve Alongside Power Density

Power and cooling are inseparable in high-density computing.

Every additional kilowatt delivered to a server rack creates additional heat that must leave the facility.

This is why AI data center cooling strategies are moving rapidly toward liquid-based systems.

Why air cooling reaches its limits

Air has relatively low heat capacity compared with liquids.

Traditional air cooling can work effectively at moderate rack densities, but the physical volume of air required to remove hundreds of kilowatts becomes increasingly difficult to manage.

High-density GPU systems therefore increasingly use direct-to-chip liquid cooling, rear-door heat exchangers, or other liquid-assisted approaches.

Schneider Electric notes that the industry's move toward liquid cooling began before 800 VDC became a major focus because rack densities had already reached levels that challenged conventional air cooling.

Power and cooling must be designed together

A high-density rack requires both electrical capacity and thermal capacity.

Increasing the electrical supply without upgrading cooling creates an obvious bottleneck.

The same principle applies in reverse.

A facility may have sufficient cooling capacity but still lack the electrical infrastructure needed to operate the intended GPU cluster.

Modern engineering teams therefore need to coordinate electrical and mechanical design much earlier in the project lifecycle.

Eaton also points to this convergence, noting that direct-to-chip liquid cooling, coolant distribution units, rear-door heat exchangers, and power architecture increasingly need to be evaluated together.

Data Center Power Solutions Are Moving Toward Integrated Infrastructure

The next generation of data center power solutions will not consist of isolated electrical products.

Instead, infrastructure providers increasingly need to think in terms of integrated systems.

A typical high-density facility may combine:

• Utility and medium-voltage distribution

• Switchgear

• Transformers

• UPS systems

• Battery energy storage

• Busways

• 3-phase PDU systems

• Smart monitoring

• Data center power cables

• Data center power whips

• High-current connectors

• Rack-level power distribution

• Liquid cooling

• Microgrids

• On-site generation

Each component affects the others.

For example, increasing rack power can require a larger PDU, which may require larger upstream conductors. Larger conductors affect cable management.

Higher electrical consumption increases heat generation. More heat increases cooling requirements. Higher cooling capacity adds additional electrical load.

That feedback loop makes system-level engineering essential.

Microgrids and on-site generation

Grid limitations are encouraging some operators to consider microgrids and on-site generation.

Potential resources include natural gas generation, renewable generation, battery storage, and other distributed energy technologies.

The goal is not necessarily to disconnect completely from the grid.

Instead, operators can create a more flexible power system that combines grid electricity with local resources.

This approach becomes especially attractive where grid interconnection timelines are long.

AI Data Center Power Supply Planning Must Account for Future Expansion

One of the biggest mistakes in data center planning is designing only for today's server technology.

AI infrastructure changes rapidly.

A facility designed around today's rack density may need to support significantly higher rack power several years later.

That creates a strong argument for modularity.

Build for the next rack, not just today's rack

A scalable data center power supply architecture should allow additional capacity without requiring a complete redesign.

Modular switchgear, scalable UPS systems, expandable busways, configurable PDUs, and flexible cabling can all support phased expansion.

This approach also reduces stranded infrastructure.

NVIDIA's current AI factory architecture work emphasizes coordinated design across computing, networking, power, cooling, and control systems rather than treating each subsystem separately.

That philosophy is increasingly relevant beyond hyperscale operators.

Standardization can simplify deployment

Repeatable infrastructure designs can shorten deployment time and reduce engineering complexity.

Standardized rack layouts, cable assemblies, connectors, PDU configurations, and monitoring interfaces can make it easier to replicate infrastructure across multiple sites.

For operators managing large AI deployments, consistency can also simplify maintenance and spare-parts management.

Power Distribution Unit Data Center Monitoring Supports Higher Reliability

As infrastructure becomes more complex, visibility becomes increasingly important.

A modern power distribution unit data center solution can provide information that helps operators understand how electrical capacity is being used at rack and circuit levels.

Voltage and current measurements provide a basic picture of load conditions.

Power, power factor, and energy measurements provide deeper insight.

Remote alarms can alert operators when parameters move outside defined limits.

Monitoring supports capacity planning

Suppose a data center plans to deploy additional AI servers.

Rather than relying solely on nameplate ratings, operators can examine actual rack-level consumption.

Historical PDU data can reveal which racks have spare capacity and which are already operating near their limits.

That information can improve expansion planning.

Monitoring also supports preventive maintenance. An unexpected change in current, temperature, or power behavior may indicate an equipment issue before the problem becomes an outage.

For high-density environments, that visibility becomes increasingly valuable.

Data Center Power System Design Must Balance Efficiency, Reliability and Safety

The objective of a modern data center power system is not simply to deliver maximum power.

The system must deliver power efficiently, safely, reliably, and predictably.

Three priorities therefore need to remain balanced.

Efficiency

Every conversion and distribution stage consumes some energy.

Reducing unnecessary conversion stages, improving conductor efficiency, optimizing load balance, and selecting efficient equipment can reduce losses.

Reliability

Redundancy, appropriate protection, UPS systems, monitoring, and maintainability all contribute to uptime.

A highly efficient system that cannot tolerate failures does not meet the needs of a critical data center.

Safety

Higher power levels require rigorous electrical protection.

Switchgear, breakers, connectors, cables, PDUs, and distribution equipment must have ratings appropriate to the application.

Protection coordination also matters. A branch-level fault should ideally trigger the appropriate protective device without unnecessarily taking down a larger portion of the facility.

That principle becomes increasingly important as rack and row power increase.

The Future of Power Distribution Unit Data Center Infrastructure

The data center industry is entering a period in which electrical infrastructure may evolve almost as quickly as computing hardware.

The immediate priority is increasing power availability.

The next priority is delivering that power efficiently to increasingly dense racks.

At the rack level, smart PDUs and high-capacity distribution equipment will continue to provide an important bridge between today's AC infrastructure and future high-voltage DC architectures.

At the facility level, operators will increasingly combine grid power with UPS systems, energy storage, microgrids, and potentially on-site generation.

At the thermal level, liquid cooling will become increasingly important as rack power rises.

At the architectural level, 800 VDC is emerging as one of the most closely watched approaches for next-generation AI infrastructure. NVIDIA, Google, and Microsoft are actively working through OCP toward standardization, while major electrical equipment suppliers are developing compatible technologies.

The long-term direction is therefore clear even though the exact architecture will vary by facility.

AI computing needs more power.

That power needs to move efficiently.

The heat needs to be removed.

And every stage needs to remain observable, serviceable, and reliable.

AI Data Center Infrastructure FAQ

Q:What are the main components of AI data center infrastructure?

A:The main components include utility power connections, switchgear, transformers, UPS systems, battery storage, busways, PDUs, rack-level distribution, data center power cables, connectors, cooling systems, networking, monitoring, and facility controls.

High-density AI sites may also incorporate microgrids, on-site generation, liquid cooling, and higher-voltage DC distribution.

Q:Why do AI data centers require more power than traditional data centers?

A:AI workloads rely heavily on GPUs and other accelerators that consume substantial amounts of electrical power.

Because many accelerators operate together in tightly integrated clusters, power consumption becomes concentrated at the rack and row levels.

This creates much higher power density than many conventional enterprise workloads.

Q:What is a smart power distribution unit?

A:smart power distribution unit is a PDU that provides electrical distribution together with monitoring and, depending on the model, remote management capabilities.

Typical measurements include voltage, current, power, power factor, and energy consumption.

Smart PDUs help operators understand rack-level electrical conditions and manage capacity more effectively.

Q:Why is a 3-phase PDU useful in an AI data center?

A:3-phase PDU can distribute larger electrical loads efficiently while supporting balanced phase loading.

As rack power increases, three-phase distribution can reduce the current carried by individual conductors for a given total power level compared with equivalent single-phase arrangements.

The final configuration still depends on the facility's voltage, current, equipment requirements, and electrical standards.

Q:What is 800 VDC in data center power distribution?

A:800 VDC is a high-voltage DC distribution architecture designed to support the increasing power requirements of next-generation computing.

Higher voltage allows the same power to travel at lower current, which can help reduce conductor requirements and distribution losses.

NVIDIA and OCP participants are actively developing 800 VDC architectures for future AI factories.

Q:Will 800 VDC replace AC distribution immediately?

A:No.

Existing data centers rely heavily on AC infrastructure, and many operators will continue using hybrid architectures for years.

Near-term solutions can introduce higher-voltage DC distribution at specific rack or row levels while retaining existing upstream AC systems.

Q:Why is liquid cooling important for AI data centers?

A:Higher rack power produces more heat.

Air cooling becomes increasingly difficult as rack density rises, while liquid cooling can remove heat more efficiently from high-density computing hardware.

As a result, direct-to-chip cooling and other liquid-based approaches are becoming increasingly important for high-density AI deployments.

Q:What are data center power whips?

A:Data center power whips are cable assemblies used to connect distribution equipment, such as busways or PDUs, to racks and other loads.

They can simplify installation and provide flexibility when rack layouts change.

The cable, connector, current rating, voltage rating, and certification must match the application.

Q:What role does a data center power connector play?

A:data center power connector provides the physical electrical interface between distribution equipment and the load.

Connector selection must consider current, voltage, temperature, mechanical durability, retention, safety, and applicable standards.

An IEC Plug may be appropriate for standardized international equipment configurations, depending on the application.

Q:What are the biggest data center power challenges in 2026?

A:The major challenges include electricity availability, grid interconnection, high rack power density, cooling capacity, electrical equipment lead times, backup power, distribution efficiency, and infrastructure scalability.

Recent developments in Texas and PJM demonstrate that grid capacity has become a major constraint for new data center projects.

Q:How should companies plan data center power infrastructure for future AI workloads?

A:The safest approach is to plan beyond current rack requirements.

Engineers should consider scalable distribution, modular electrical equipment, sufficient upstream capacity, flexible PDU configurations, expandable cooling, monitoring, and potential migration toward higher-voltage DC architectures.

Future-ready infrastructure should accommodate higher rack densities without requiring the entire electrical system to be rebuilt.

Conclusion: Building a Scalable Data Center Power System for AI

The growth of AI is changing the role of electrical infrastructure inside the data center.

Power is no longer a background utility. It is becoming one of the primary constraints on computing capacity.

That reality is driving investment in stronger data center power solutions, higher-density distribution, smarter PDUs, advanced cooling, grid-scale planning, energy storage, and new power architectures such as 800 VDC.

For equipment manufacturers, data center operators, engineers, and procurement teams, the key lesson is to look beyond individual components.

A PDU cannot be evaluated separately from the rack.

A connector cannot be evaluated separately from the cable.

Cooling cannot be separated from power density.

And a data center cannot be planned independently of the grid.

The next generation of AI data center infrastructure will depend on how well these systems work together.

Companies that design for scalability, monitoring, efficiency, safety, and future rack densities will be better positioned to support the rapid evolution of AI computing without repeatedly rebuilding their electrical infrastructure.
