| Model | F.PE0630B01-*A | Rated current(Amperes) | 630A | | Rated voltage (Volts) | 1000V | Contact material | Silver plated copper alloy | | Insulation material | Engineering Plastics | Flammability | UL94-V0 | | Withoutload(Contact/Disconnect | 10000 | With Load (Hot Plug 250 Cycles | YES | | average Contact Resistance(mic | ≤25uΩ | Insulation Resistance | 5000MΩ | | average.connection\disconnect( | 200N | Environment Temperature(℃) | -40℃~125℃ | | Rated Impulse Voltage | 6.6KV AC | Protection grade | IP67 | | Color features | there is a brightly colored silicone color ring to avoid mis-insertion (1-blue 2-yellow 3-green 4-red 5-black) | | |

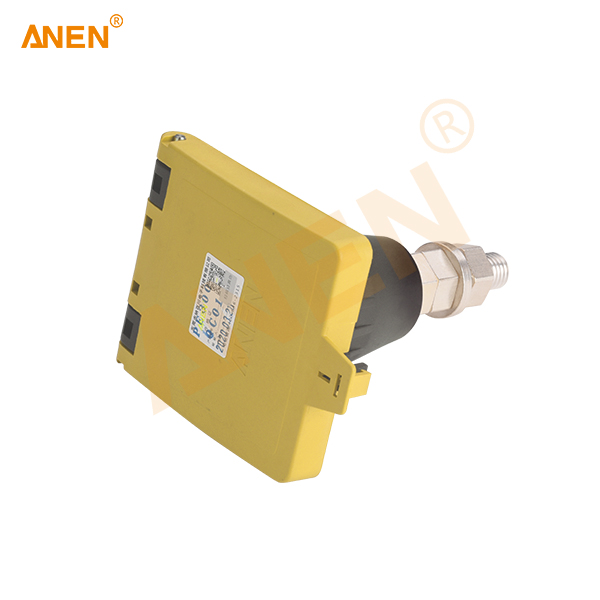

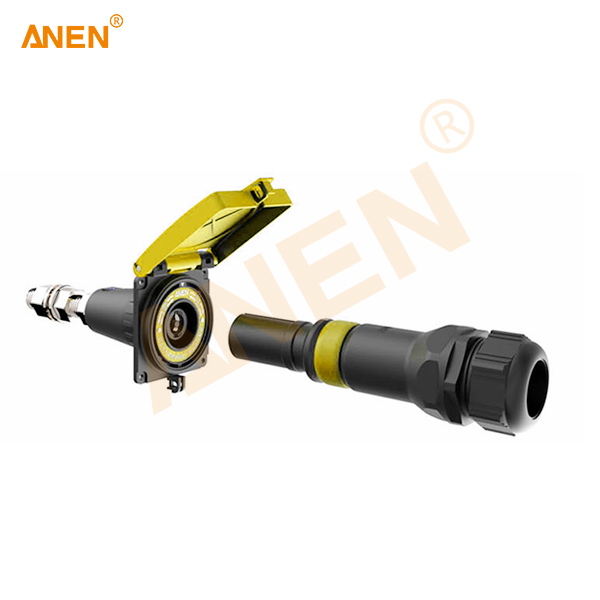

Product DescriptionThe 630A Bypass Panel Socket offers a reliable, quick-connect solution for industrial emergency power generation equipment. With a rated voltage of 1000V and an impressive 630A current rating, this socket is ideal for applications that require rapid bypass connections in critical systems, including generator sets and distribution panels. Designed to meet the demands of modern electrical systems, the Bypass Panel Socket combines durability, ease of use, and high conductivity.
Crafted from high-performance materials, the socket ensures maximum reliability in the most challenging environments. Featuring waterproof protection and high-impact resistance, this socket is built to withstand exposure to the elements, maintaining seamless power transfer and safety for all industrial power systems. Detailed DescriptionThe 630A Bypass Panel Socket is designed for optimal performance in bypass systems, ensuring quick and secure connections for high-power applications. Below are the key features and advantages: Rated Voltage & Current: Capable of handling 1000V and 630A, this socket meets the high standards required for both low voltage and high voltage electrical connectors. Whether used for electric power distribution or emergency power systems, this socket supports high-load scenarios, ensuring reliability and performance.
Material Composition:Housing Material: The connector’s fiber-reinforced plastic housing is designed to endure external impacts and heavy wear, offering high toughness and resistance to damage when subjected to force. The IP67 protection class ensures complete waterproofing, making it suitable for harsh environments with exposure to dust, water, or moisture.

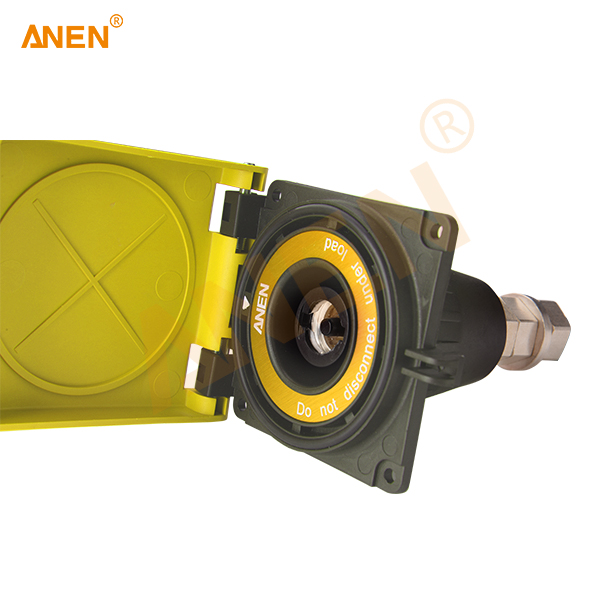

Color-Coded Silicone Rings: The brightly colored silicone rings (Blue, Yellow, Green, Red, Black) help prevent mis-insertion, ensuring proper installation and enhanced safety during operation.
Contact UsLooking for high-quality bypass device solutions? Reach out to us for more information on the 630A Bypass Panel Socket and discover how it can improve the reliability and efficiency of your power systems. Our team is here to assist you with customized solutions, technical support, and fast delivery.
The 630A Bypass Panel Socket excels in various bypass device solutions, offering seamless connections for industries requiring high-quality, quick-connect plugs. Key application areas include: Distribution Panels: The socket ensures a secure, safe, and efficient connection in distribution panels for high-power applications, providing a fast and reliable means to bypass or switch between circuits without compromising safety.
Construction & Manufacturing: For temporary connections at construction sites or manufacturing facilities, the 630A Bypass Panel Socket guarantees safe, durable connections that can withstand physical impacts and environmental stress.
Outdoor & Harsh Environment Applications: With its IP67 waterproof rating, this socket is suitable for outdoor operations, including those exposed to moisture, dust, or extreme weather conditions. It ensures performance in any situation where reliability and safety are essential.
SolutionWhen you choose our Bypass Panel Socket, you are investing in a reliable and efficient bypass system solution. The silver-plated copper alloy contacts deliver superior conductivity, reducing the risk of heat buildup or system failure. The robust design, coupled with high flame retardant and waterproof characteristics, ensures a safe and consistent electrical connection under even the harshest conditions. Whether for generator sets, distribution panels, or any other bypass device applications, we provide tailored solutions to meet your unique power system needs.
With our expert support and direct factory sourcing, we ensure competitive pricing and reliable product performance for all your industrial power system requirements. The 630A Bypass Panel Socket is just one part of our comprehensive range of electrical connectors, designed to improve the efficiency, safety, and longevity of your power systems. Our AdvantagesDirect Factory Source: Our products come directly from the manufacturer with no minimum order quantity (MOQ) requirements, offering flexibility for both large and small orders. This ensures that you can get the connectors you need, whenever you need them.
Quality Assurance & Certification: Every Bypass Panel Socket is thoroughly tested for quality, ensuring it meets international standards. With certifications such as UL94-V0 and compliance with IP67, our products provide the highest level of safety and reliability.
After-Sales Support: We provide comprehensive after-sales services, including installation guidance, troubleshooting, and technical support, ensuring you get the most out of your purchase.
Frequently Asked Questions (FAQ)Q1: What types of cables are compatible with the 630A Bypass Panel Socket? A1: The 630A Panel Socket is compatible with cables ranging from 185mm² to 300mm² in size, making it versatile for a wide range of applications.
Q2: Is the 630A Bypass Panel Socket suitable for outdoor use? A2: Yes, the IP67 waterproof rating makes the 630A Bypass Panel Socket ideal for outdoor applications, offering full protection against dust and moisture.
Q3: How does the silver-plated copper alloy improve performance? A3: The silver-plated copper alloy provides superior conductivity, ensuring efficient power transfer and reducing energy loss. It also offers resistance to corrosion, enhancing the socket’s longevity.
Q4: What are the benefits of the color-coded silicone rings? A4: The color-coded silicone rings (Blue, Yellow, Green, Red, Black) help prevent mis-insertion, ensuring that the socket is connected correctly and safely. |
